DTC U1002: Lost Communication with Gateway Module (Network Gateway ECU) [06/2014 - 10/2016]
>>
Wiring Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

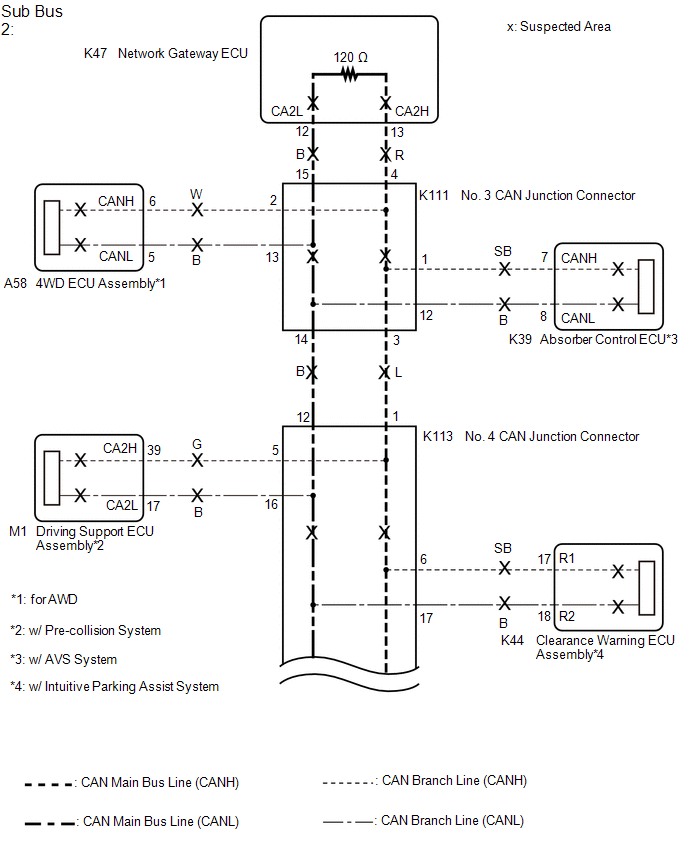

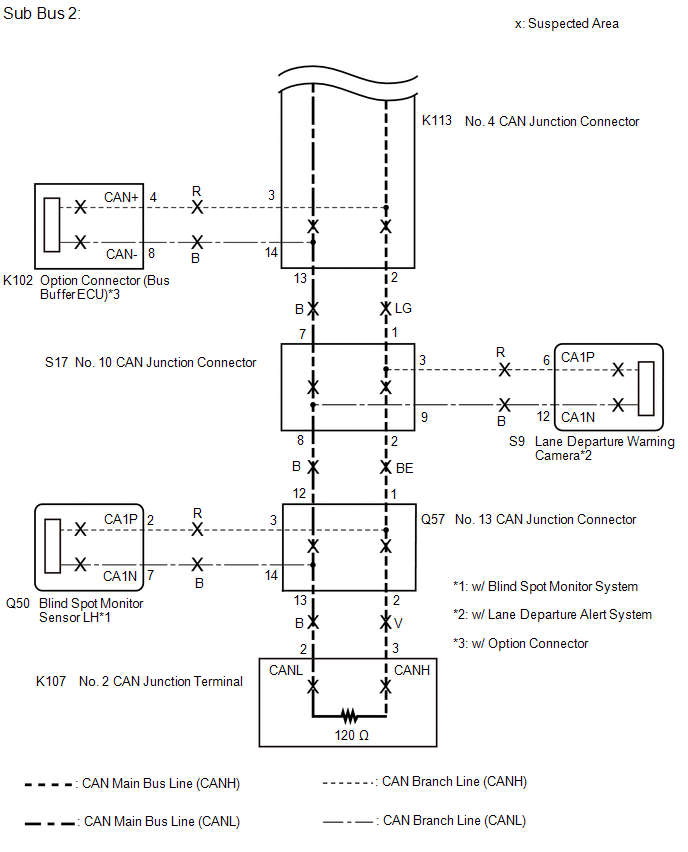

DTC U1002: Lost Communication with Gateway Module (Network Gateway ECU) [06/2014 - 10/2016]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
