Components [09/2015 - ]: Illustration

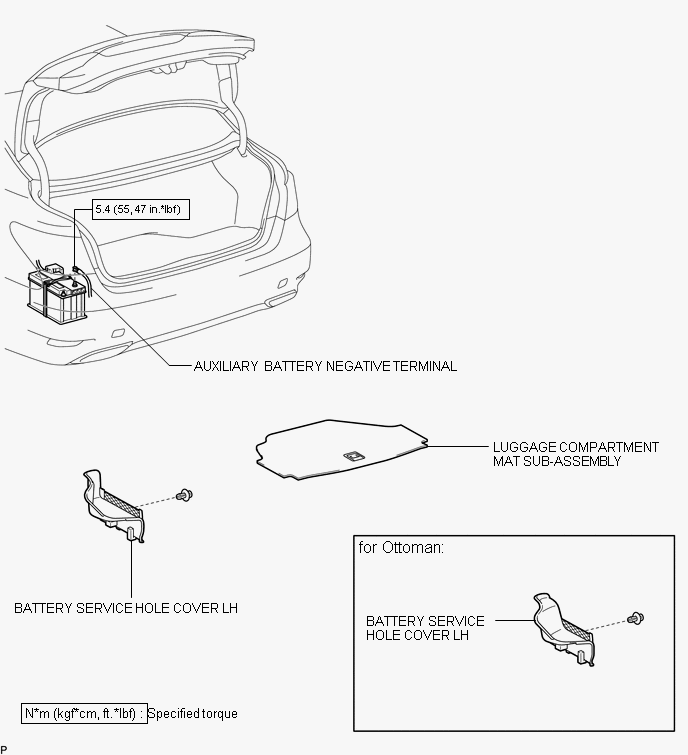

Fig 1: ECM Replacement Components W/ Torque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

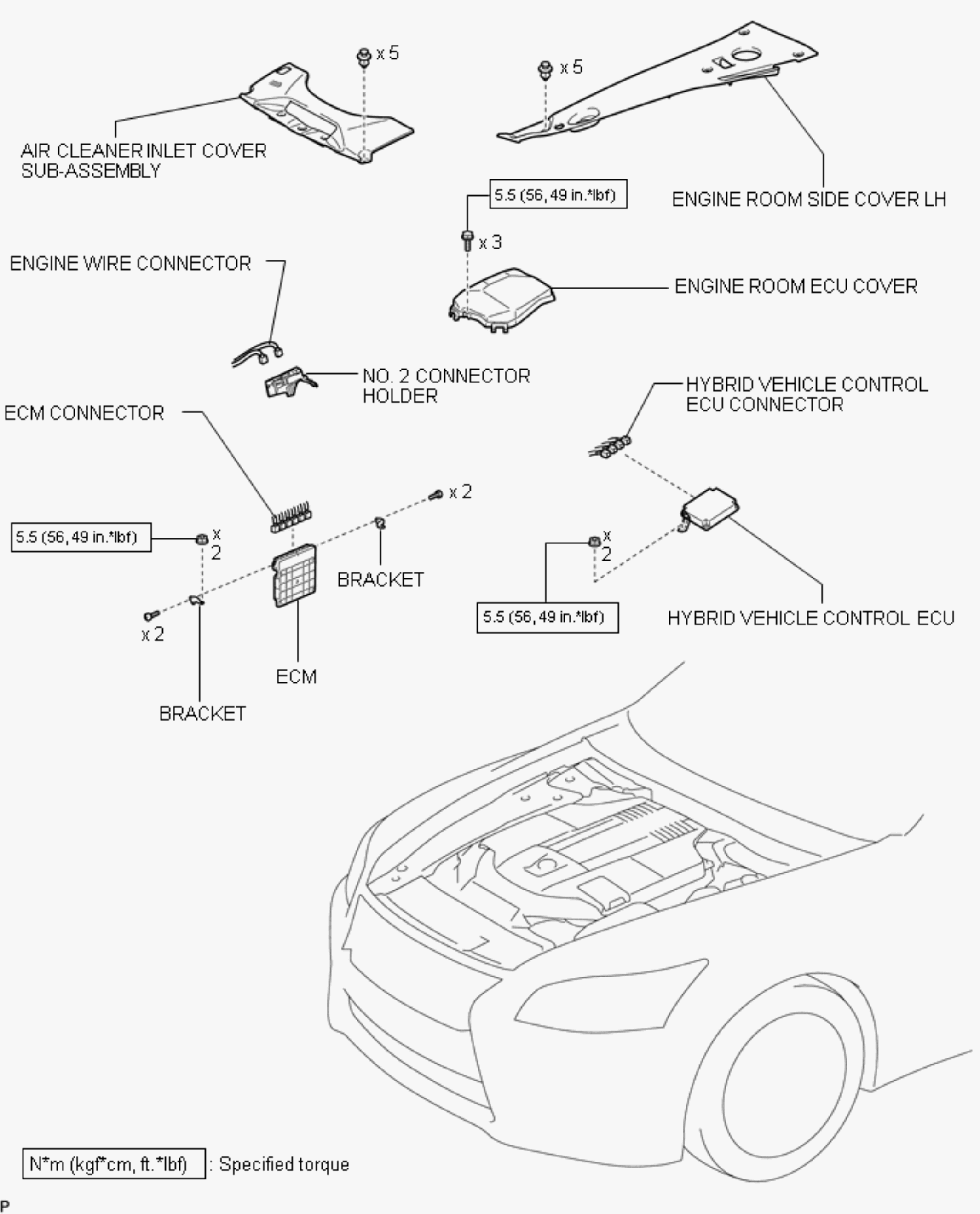

Fig 1: ECM Replacement Components W/ Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
