Installation [08/2014 - ]: Procedure

  1. INSPECT STEERING COLUMN ASSEMBLY

    See step  2

  2. INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Align the matchmarks on the No. 2 steering intermediate shaft assembly and steering column assembly to install the No. 2 steering intermediate shaft assembly.

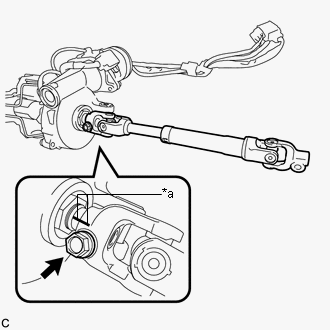

      GTY528002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
    2. Install the bolt.

      Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

  3. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  4. INSTALL STEERING POST ASSEMBLY
    1. Install the steering post assembly with the bolt and 2 nuts.

      Bolt

      Torque: 36 N*m (367 kgf*cm, 27 ft.*lbf)

      Nut

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    2. Engage the wire harness clamps to the steering post assembly.
    3. Engage the 2 wire harness clamps.
    4. Connect the connector to the power steering ECU assembly.
    5. Connect the connector to the power steering ECU assembly.

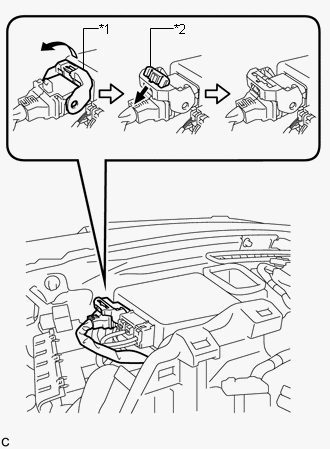

      GTY528897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Lock Lever
      *2 Lock of Lock Lever

      HINT:

      As shown in the illustration, return the lock lever to its original position to connect the connector and securely push in the lock of the lock lever.

  5. CONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Align the matchmarks on the No. 2 steering intermediate shaft assembly and steering intermediate shaft to connect the No. 2 steering intermediate shaft assembly to the steering intermediate shaft.

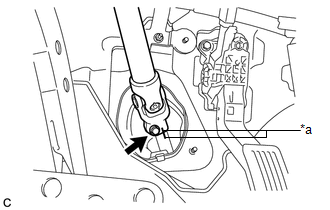

      GTY538376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
    2. Install the bolt.

      Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

  6. INSTALL COLUMN HOLE COVER SILENCER SHEET
    1. Install the column hole cover silencer sheet with the 2 clips.
    2. Install the floor carpet.
  7. INSTALL NO. 1 AIR DUCT SUB-ASSEMBLY
    1. Engage the 2 claws to install the No. 1 air duct sub-assembly.
  8. INSTALL STOP LIGHT SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 1

  9. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    (See article. Refer to INSTALLATION [08/2014 - ] )

  10. INSTALL UPPER INSTRUMENT PANEL ASSEMBLY

    (See article. Refer to INSTALLATION [08/2014 - ] )

  11. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
    NOTE:
    • Do not replace the spiral cable with the auxiliary battery connected and the power switch on (IG).
    • Do not rotate the spiral cable without the steering wheel with the auxiliary battery connected and the power switch on (IG).
    • Ensure that the steering wheel is installed and aligned straight when inspecting the steering sensor.
    • Do not remove the steering sensor from the spiral cable.
    1. Using pliers, expand the clamp.
    2. While holding the clamp expanded, install the turn signal switch assembly with spiral cable sub-assembly to the steering column assembly and engage the claw.
    3. Return the clamp to its original position.
    4. Connect the connectors to the turn signal switch assembly with spiral cable sub-assembly.
  12. INSTALL STEERING COLUMN COVER
    NOTE:

    If the steering column cover is installed in the incorrect order, it will not be possible to assemble the steering column cover.

    1. Engage the 2 claws to install the steering column cover (upper side).

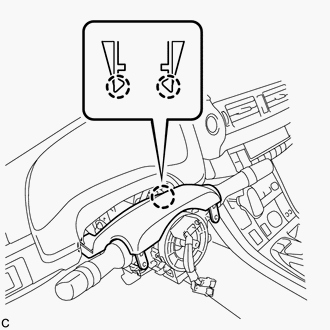

      GTY534586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 4 clips and 2 guides to the steering column cover (upper side).

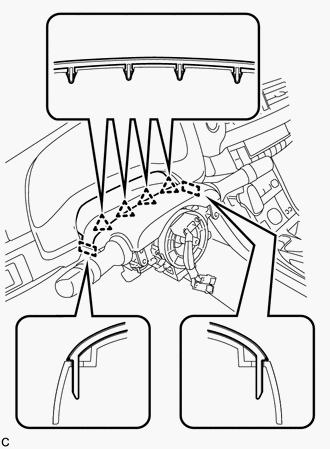

      GTY534588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 4 claws to install the steering column cover (lower side).

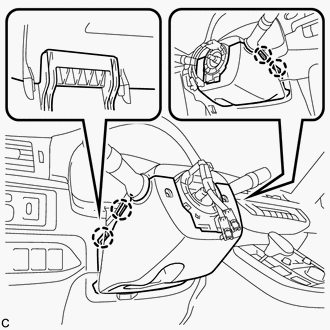

      GTY534585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Engage the 2 claws.

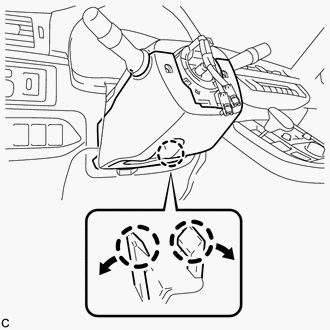

      GTY538263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Spread the claws and press the area around the claws to engage them.

    5. Install the 2 screws.

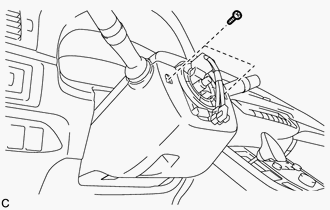

      GTY523075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

  13. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  14. ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  15. INSTALL STEERING WHEEL ASSEMBLY

    See step  10

  16. CHECK STEERING WHEEL CENTER POINT
  17. INSTALL HORN BUTTON ASSEMBLY

    (See article. Refer to INSTALLATION [08/2014 - ] )

  18. ROTATION ANGLE SENSOR VALUE INITIALIZATION AND TORQUE SENSOR ZERO POINT CALIBRATION

    (See article. Refer to CALIBRATION [08/2014 - ] )
