Removal [09/2014 - 10/2015]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY
    1. except Sport Package:

      (Refer to REMOVAL [09/2014 - 10/2015] )

    2. for Sport Package:

      (Refer to REMOVAL [09/2014 - 10/2015] )

  2. DRAIN WASHER FLUID

    See step  5

  3. REMOVE FRONT WHEEL LH
  4. REMOVE FRONT FENDER LINER LH

    See step  3

  5. REMOVE NO. 3 COOL AIR INTAKE DUCT SUB-ASSEMBLY

    See step  4

  6. REMOVE HEADLIGHT CLEANER CONTROL RELAY

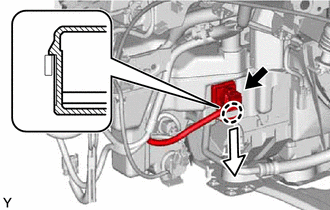

    1. Disconnect the connector.
      GTY412929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and remove the headlight cleaner control relay as shown in the illustration.
