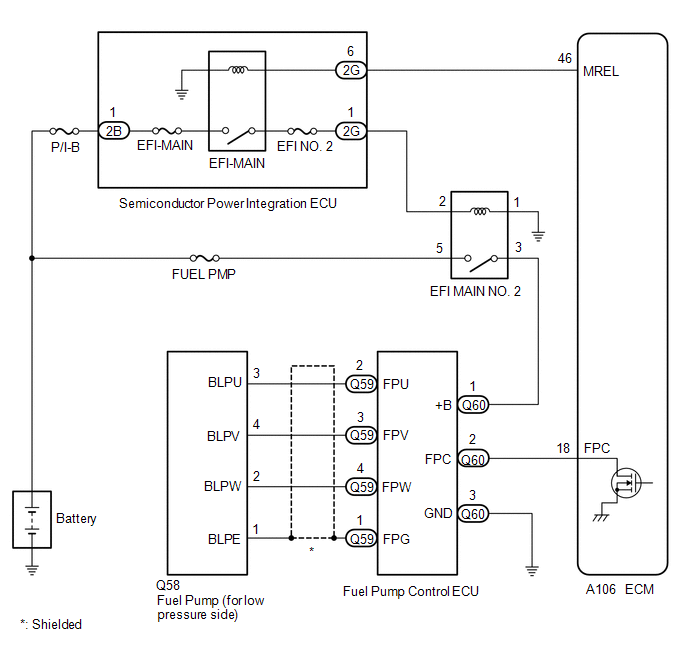

Fuel Pump Control Circuit [10/2017 - ]: Wiring Diagram

GTY782039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
