Components [07/2020 - ]

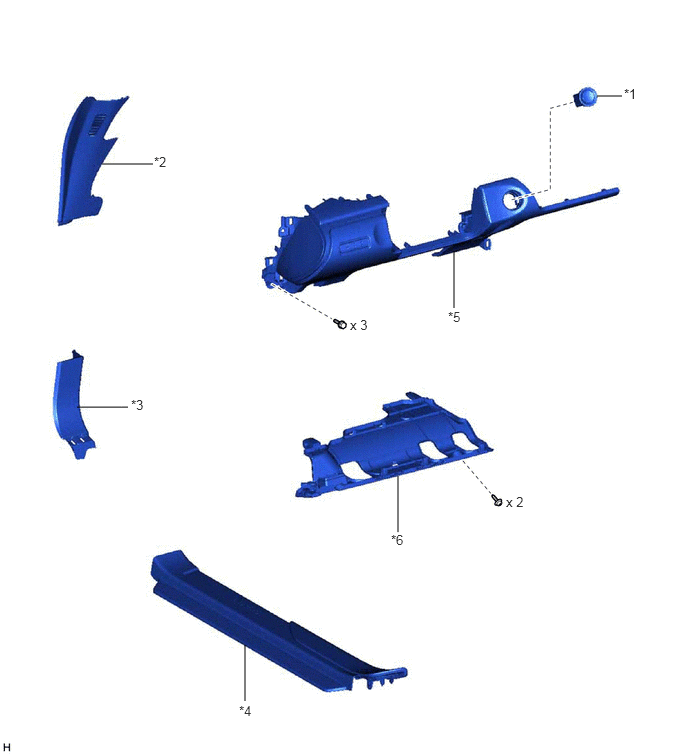

Fig 1: Engine Switch Replacement Components
GTY817138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ENGINE SWITCH *2 FRONT DOOR NO. 2 OPENING TRIM COVER LH
*3 FRONT DOOR OPENING TRIM COVER LH *4 FRONT DOOR SCUFF PLATE LH
*5 NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY *6 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
