Components [07/2020 - ]

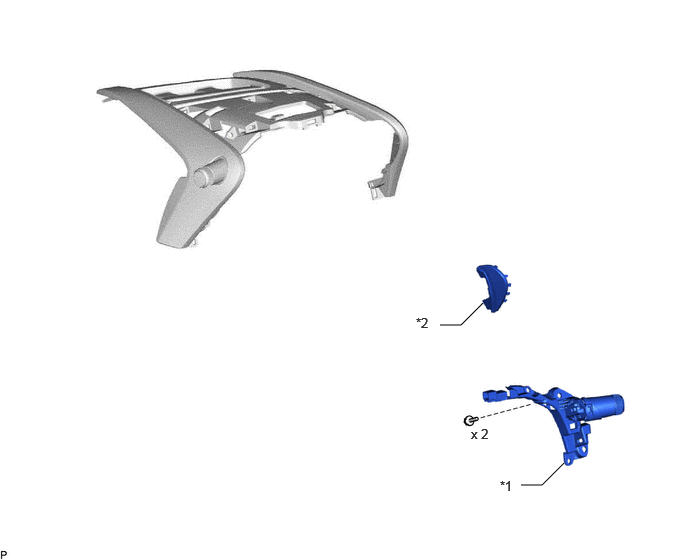

Fig 1: Absorber Control Switch Replacement Components
GTY955109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ABSORBER CONTROL SWITCH (COMBINATION SWITCH ASSEMBLY) *2 INSTRUMENT PANEL HOLE COVER
