Components [01/2017 - ]

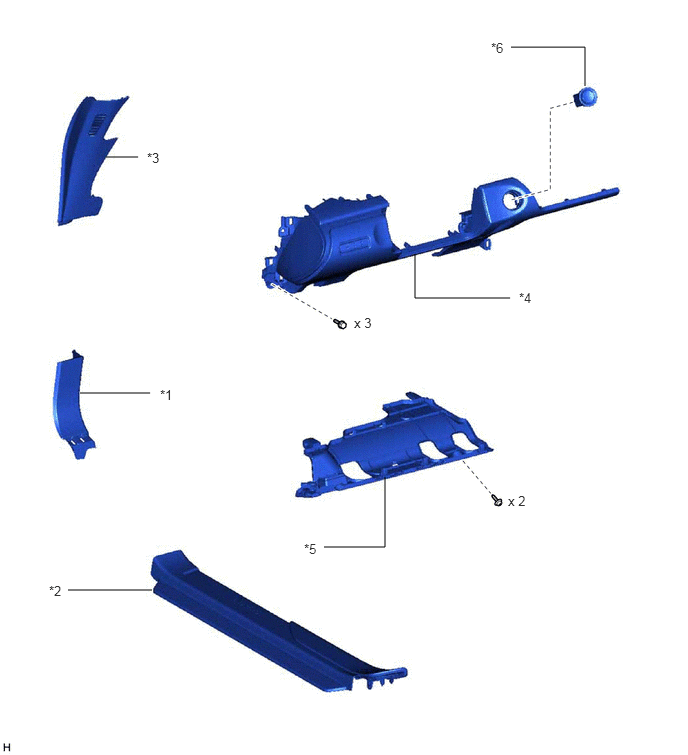

Fig 1: Power Switch Replacement Components
GTY817139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT DOOR OPENING TRIM COVER LH *2 FRONT DOOR SCUFF PLATE LH
*3 FRONT DOOR NO. 2 OPENING TRIM COVER LH *4 NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
*5 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY *6 POWER SWITCH
