Components [01/2017 - ]

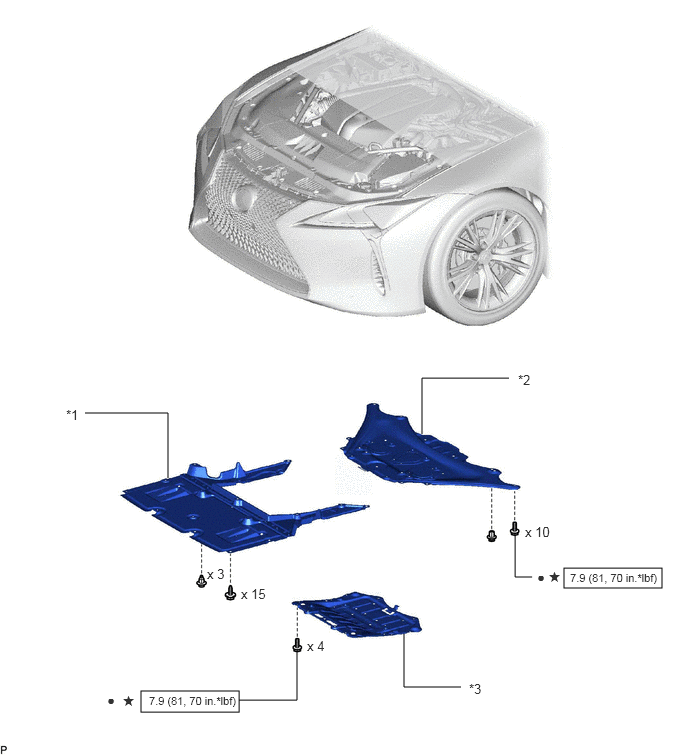

Fig 1: Oil Level Sensor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 1 ENGINE UNDER COVER ASSEMBLY	*2	NO. 2 ENGINE UNDER COVER ASSEMBLY
*3	STRUT BAR BRACKET SUPPORT SUB-ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
*	Precoated part	-	-

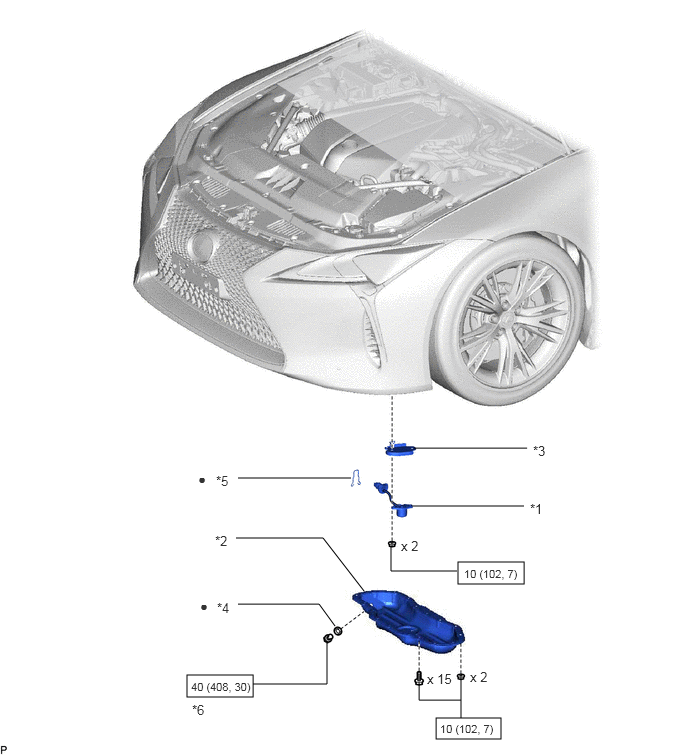

Fig 2: Oil Level Sensor Replacement Components With Torque Specifications (2 Of 2)

*1	ENGINE OIL LEVEL SENSOR	*2	NO. 2 OIL PAN SUB-ASSEMBLY
*3	OIL LEVEL SENSOR BRACKET	*4	GASKET
*5	CLIP	*6	OIL PAN DRAIN PLUG
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
