Installation [01/2017 - ]: Procedure
- INSTALL OIL LEVEL SENSOR BRACKET
- Install the engine oil level sensor bracket.
- INSTALL ENGINE OIL LEVEL SENSOR NOTE:
- Be careful not to allow engine oil to contact the terminals.
- Do not use a brakes cleaner or a solvent on a connector.
- Install the engine oil level sensor with the 2 nuts and attach the clamp.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
- Apply a light coat of engine oil to the O-ring of the engine oil level sensor.

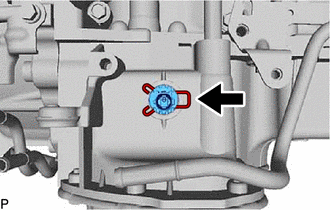

- Install a new clip to the engine oil level sensor as shown in the illustration.
- Connect the engine oil level sensor connector.
- INSTALL NO. 2 OIL PAN SUB-ASSEMBLY
- ADD ENGINE OIL
Refer to PROCEDURE - Step 8 [01/2017 - 11/2021] , or refer to PROCEDURE - Step 8 [11/2021 - ]
- INSPECT FOR OIL LEAK
Refer to PROCEDURE - Step 10 [01/2017 - 11/2021] , or refer to PROCEDURE - Step 10 [11/2021 - ]
- INSPECT ENGINE OIL LEVEL
Refer to PROCEDURE - Step 2
- INSTALL STRUT BAR BRACKET SUPPORT SUB-ASSEMBLY
Refer to PROCEDURE - Step 113 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 113 [06/2019 - 05/2023] , or refer to PROCEDURE - Step 113 [05/2023 - ]
- INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 114 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 114 [06/2019 - 05/2023] , or refer to PROCEDURE - Step 114 [05/2023 - ]
- INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 115 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 115 [06/2019 - 05/2023] , or refer to PROCEDURE - Step 115 [05/2023 - ]
