Components [10/2023 - ]

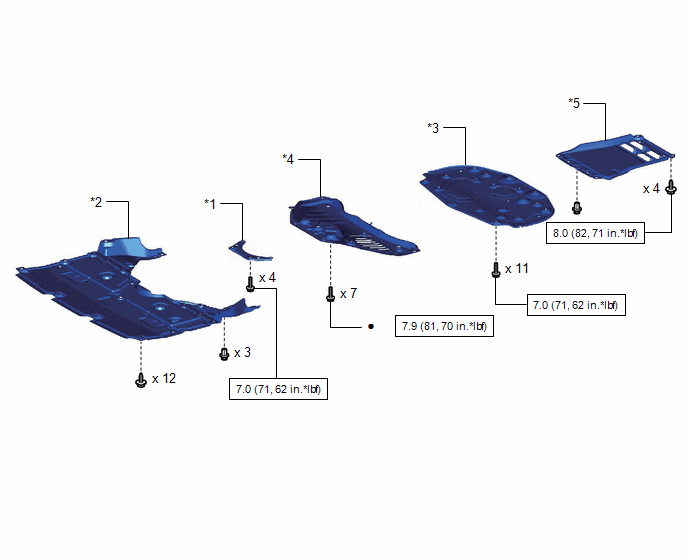

Fig 1: Oil Level Sensor Replacement Components With Torque Specifications [10/2023 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT SUSPENSION MEMBER BRACE	*2	NO. 1 ENGINE UNDER COVER ASSEMBLY
*3	NO. 2 ENGINE UNDER COVER ASSEMBLY	*4	STRUT BAR BRACKET SUPPORT SUB-ASSEMBLY
*5	TRANSMISSION UNDER COVER	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
*	Precoated part	-	-

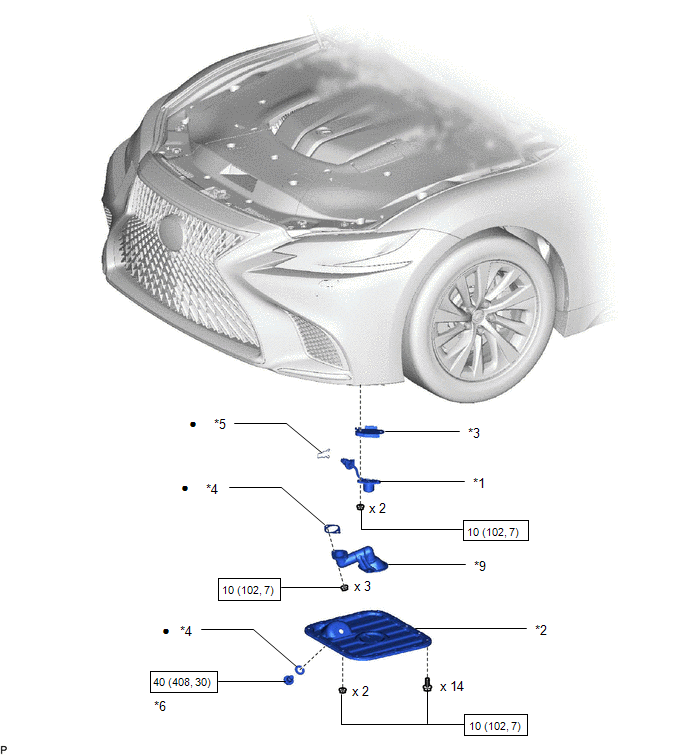

Fig 2: Oil Level Sensor Replacement Components With Torque Specifications [10/2023 - ] (2 Of 2)

Callout	Description	Callout	Description
*1	ENGINE OIL LEVEL SENSOR	*2	NO. 2 OIL PAN SUB-ASSEMBLY
*3	OIL LEVEL SENSOR BRACKET	*4	GASKET
*5	CLIP	*6	OIL PAN DRAIN PLUG
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
