On-Vehicle Inspection [10/2017 - ]: Procedure

Refer to REMOVAL [10/2017 - ]

1. Check the stroke of the plunger in the center of the camshaft timing gear bolt.

   Standard Stroke

   2.2 mm (0.0866 in.) or more

   HINT:

   When pressing the plunger, there may be a stepped feeling. This is not a malfunction.

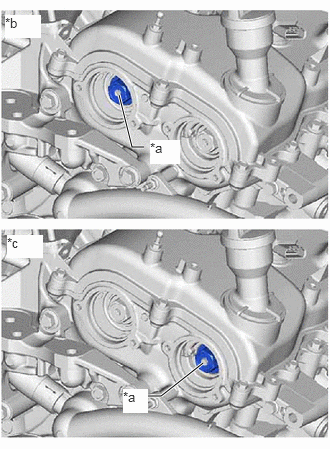

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Plunger
   *b	Intake Side
   *c	Exhaust Side

Refer to INSTALLATION [10/2017 - ]
