Installation [10/2014 - ]: Procedure
- INSTALL ENGINE OIL LEVEL SENSOR
- Install the engine oil level sensor with the bolt.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
- Attach the 2 clamps to the No. 1 oil pan baffle plate.
- Remove any foreign matter around the connector.
- Apply a light coat of engine oil to the O-ring of the engine oil level sensor.

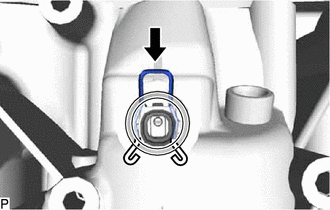

- Install a new clip to the engine oil level sensor as shown in the illustration.NOTE:
- Clean off any oil that is on the connector with a cloth.
- Do not use solvent, etc. to clean the connector.
- Do not spray brake cleaner.
- Install the engine oil level sensor with the bolt.
- INSTALL OIL PAN SUB-ASSEMBLY
Refer to PROCEDURE - Step 9 [10/2014 - 09/2015] , or refer to PROCEDURE - Step 9 [09/2015 - ]
- INSTALL FRONT EXHAUST PIPE SUB-ASSEMBLY
Refer to PROCEDURE - Step 3 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 2 [09/2017 - ]
- INSTALL FRONT SUSPENSION MEMBER REINFORCEMENT RH
Refer to PROCEDURE - Step 14 [10/2014 - 05/2019] , or refer to PROCEDURE - Step 14 [05/2019 - ]
- INSTALL NO. 1 ENGINE UNDER COVER (except Sport Package)
Refer to PROCEDURE - Step 98 [10/2014 - 05/2019] , or refer to PROCEDURE - Step 99 [05/2019 - ]
- INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY (for Sport Package)
Refer to PROCEDURE - Step 99 [10/2014 - 05/2019] , or refer to PROCEDURE - Step 100 [05/2019 - ]
- ADD ENGINE OIL
See step [10/2014 - 05/2018] , or see step [05/2018 - ]
- INSPECT ENGINE OIL LEVEL
See step [10/2014 - 05/2018] , or see step [05/2018 - ]
- INSPECT FOR OIL LEAK
See step [10/2014 - 05/2018] , or see step [05/2018 - ]
- INSPECT FOR EXHAUST GAS LEAK
Refer to PROCEDURE - Step 8 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 7 [09/2017 - ]
