Removal [10/2014 - ]: Procedure

  1. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crankshaft position sensor connector.

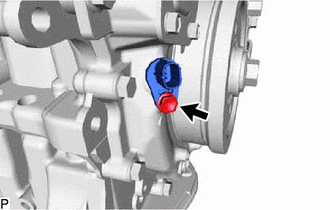

    2. Remove the bolt and crankshaft position sensor.
      GTY504332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
