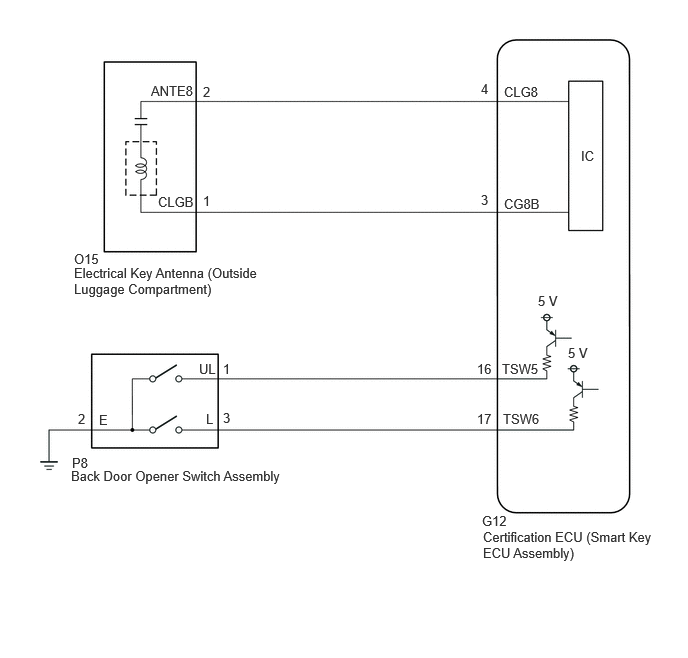

Back Door Entry Lock and Unlock Functions do not Operate [11/2021 - ]: Wiring Diagram

GTY1081425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
