Volume (Capacity) Test

For Specifications see " Figure " in appropriate TUNE-UP story.

Use same "T" fitting and vent valve line as for Pressure Test. Crank or run engine at specified RPM with hose from valve placed in a suitable container. Open vent valve and note time required to obtain specified amount of fuel.

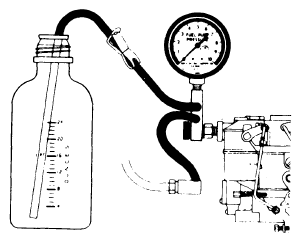

Fig 1: CHECKING FUEL PUMP VOLUME
G09340948Courtesy of CHRYSLER GROUP, LLC
