Engine Control Module

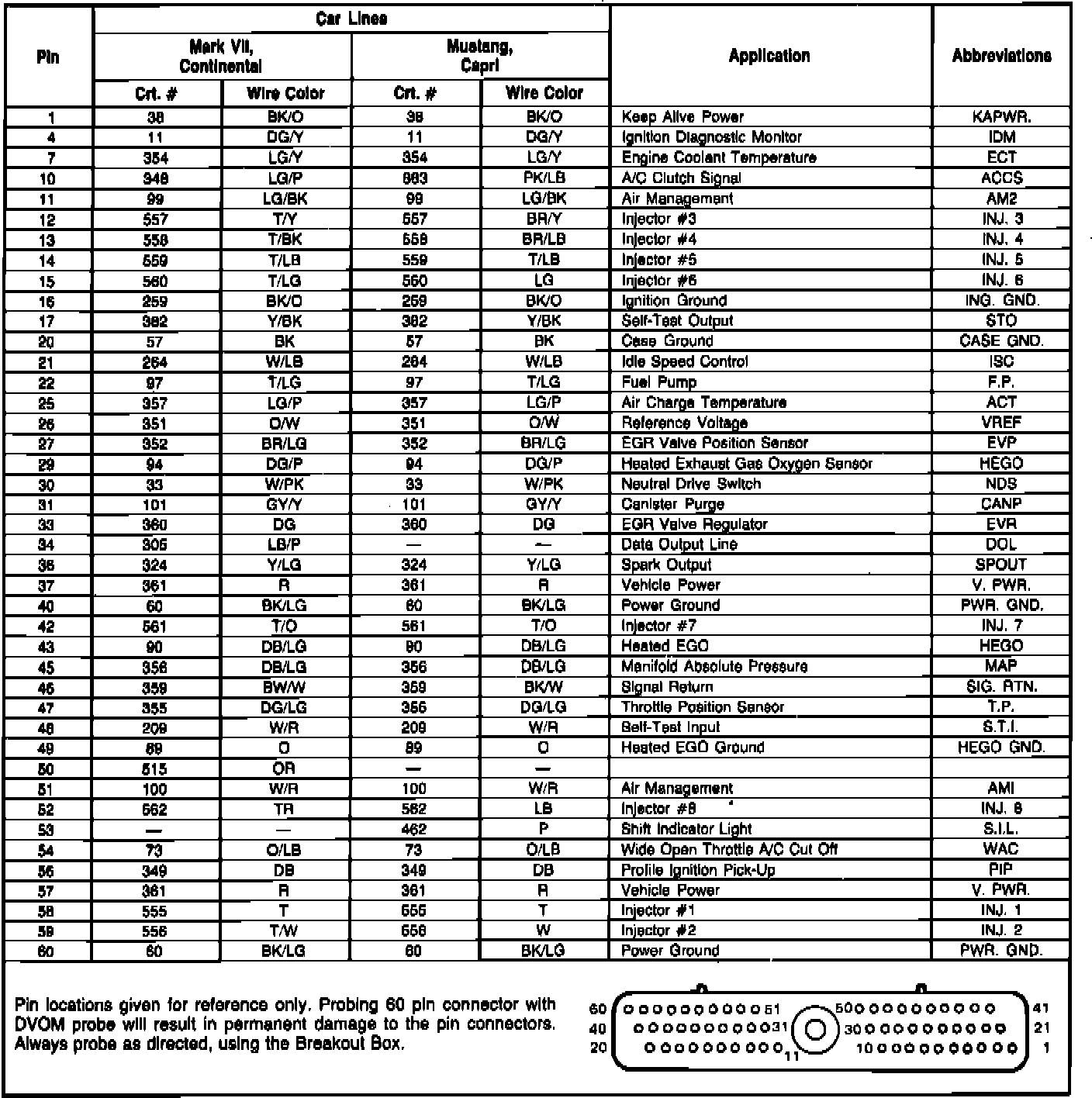

Fig. 239 EEC-IV module connector pin usage. 1986 Capri, Continental, Mark VII & Mustang W/V8-302 SEFI engine:
