TPS SERVICE REPLACEMENT CHART

TECHNICAL SERVICE BULLETIN

Reference Number(s): 89-16-4, Date of Issue: August, 1989

APPLICATION

1984-88 Ford Motor Co. Passenger Cars & Light Trucks & Vans with Throttle Position Sensor (TPS)

SUBJECT

TPS Application

REFERENCE

Ford Motor Co., Technical Service Bulletin, No. 89-16-4, August, 1989

SERVICE INFORMATION

If the incorrect Throttle Position Sensor (TPS) is installed in a 1984-88 Ford Motor Co. vehicle, the TPS could prematurely fail. Refer to the following TPS service replacement charts to ensure the correct service part is installed.

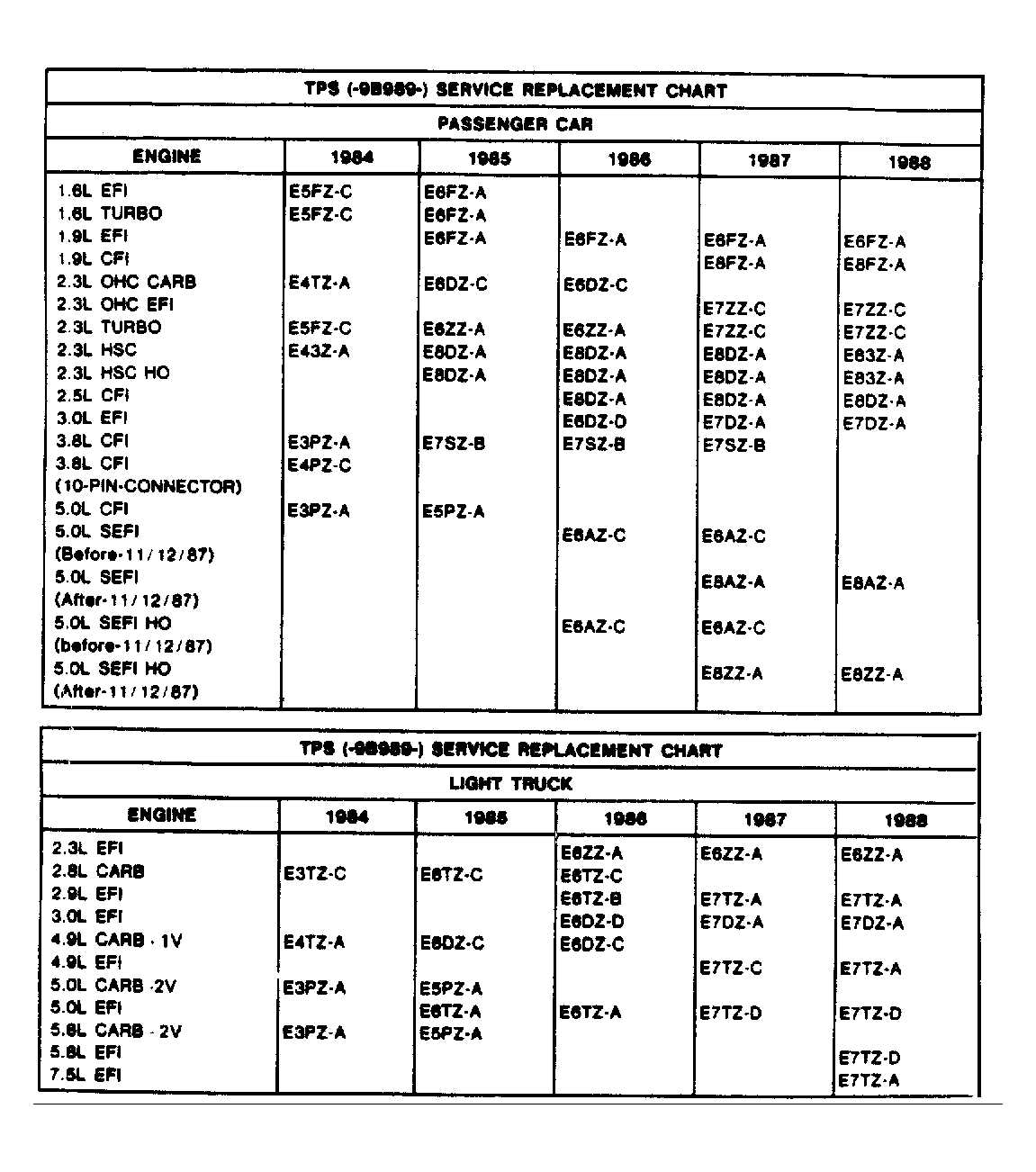

Fig 1: TPS Service Replacement Charts

Courtesy of FORD MOTOR CO.
