Shell Assembly: Reassembly

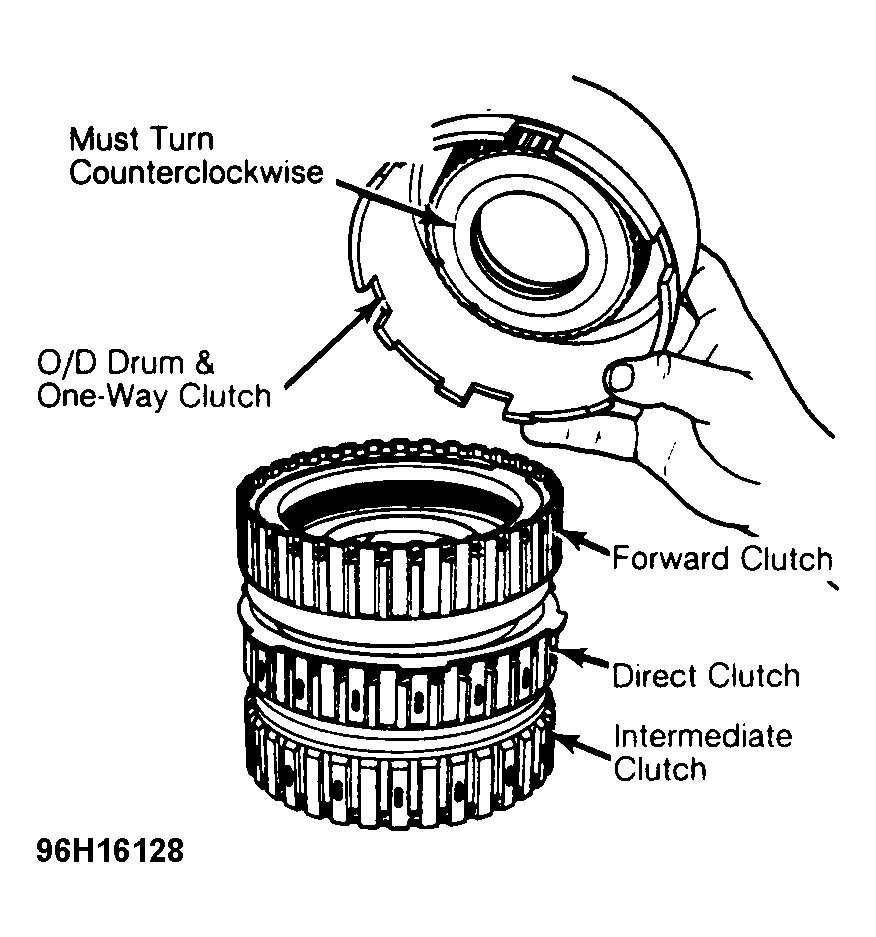

To assemble, reverse disassembly procedures. Ensure No. 7 thrust washer tabs are aligned with slots in direct clutch. One-way clutch must turn counterclockwise when installed properly. See Fig 1 . Install No. 11 needle bearing with outer lip facing down.
