Electronic Climate Control Panel

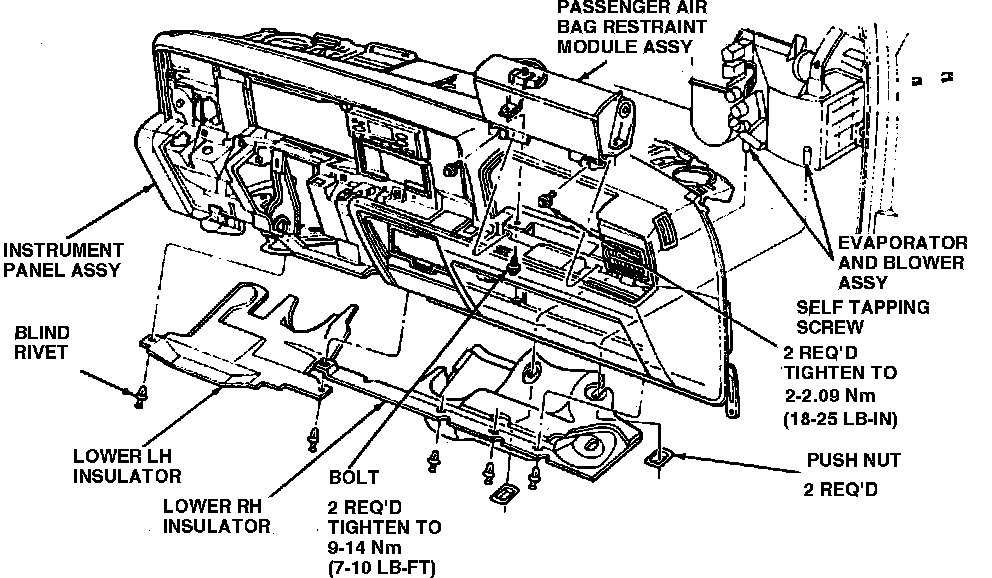

Fig. 9 Instrument panel removal:

1. Disconnect battery ground cable.
2. Remove both I/P shelf mouldings, Fig. 9.
3. Remove finish panel cluster opening attaching screws, then the panel.
4. Remove four Torx screws from control head.
5. Pull control assembly away from I/P, then disconnect two harness connectors from rear.
6. Remove vacuum harness retaining nuts, then separate control panel from I/P.
7. Reverse procedure to install.
