Connector Views

Electronic Instrument Cluster (EIC) C-256:





Data Communications Link (DCL) and Electronic Instrument Cluster (EIC) connector C-256.

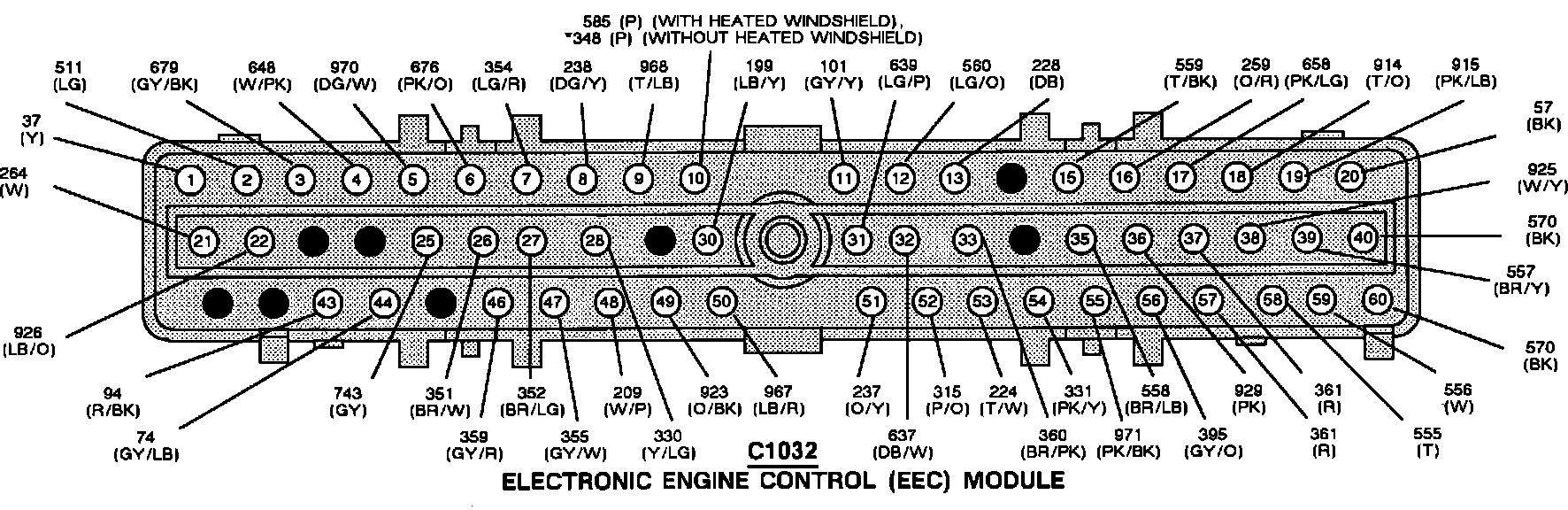

Electronic Engine Control (EEC) Module Connector Pinout:

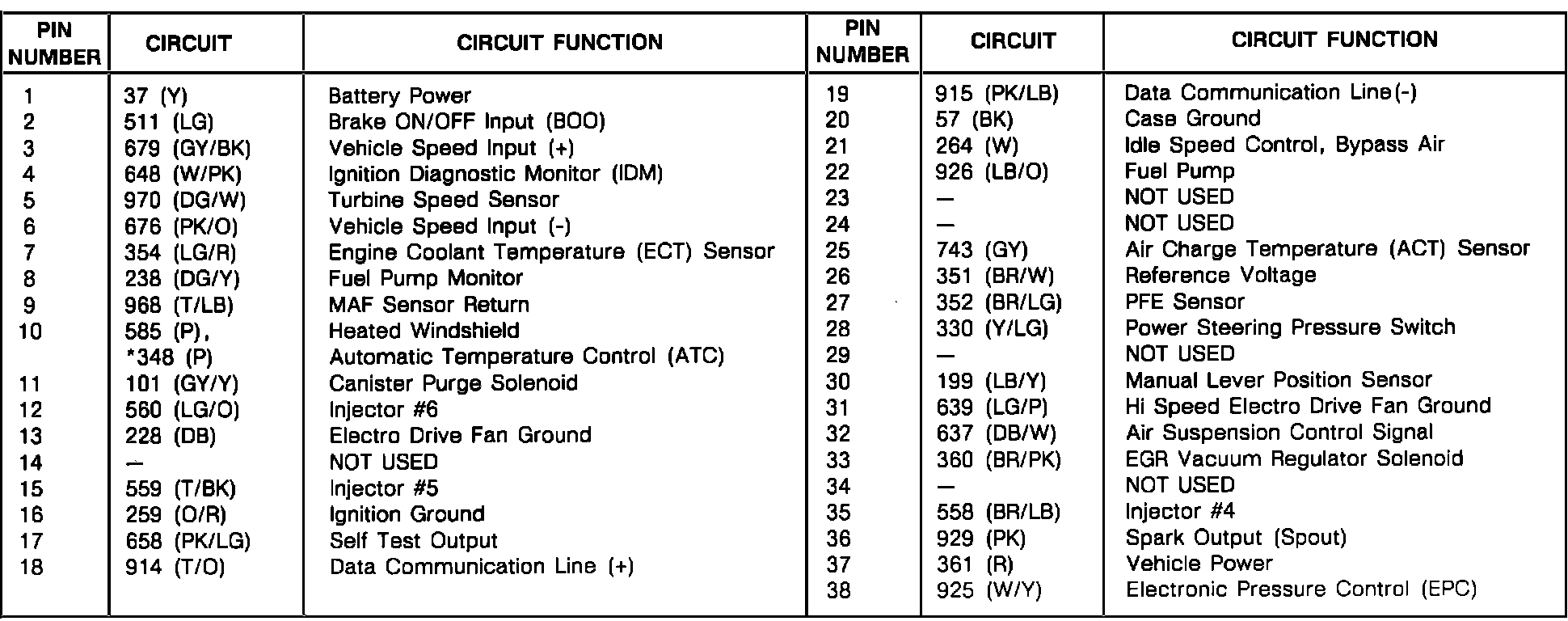

Electronic Engine Control (EEC) Module Connector Pin Identification:





DCL and Electonic Engine Control (EEC) connector C-1032.
