Circuit Protection

The power seat circuit is protected by a 20-ampin-line circuit breaker. The in-line circuit breaker is mounted on the starter relay on the left fender apron. See Fig 1 .

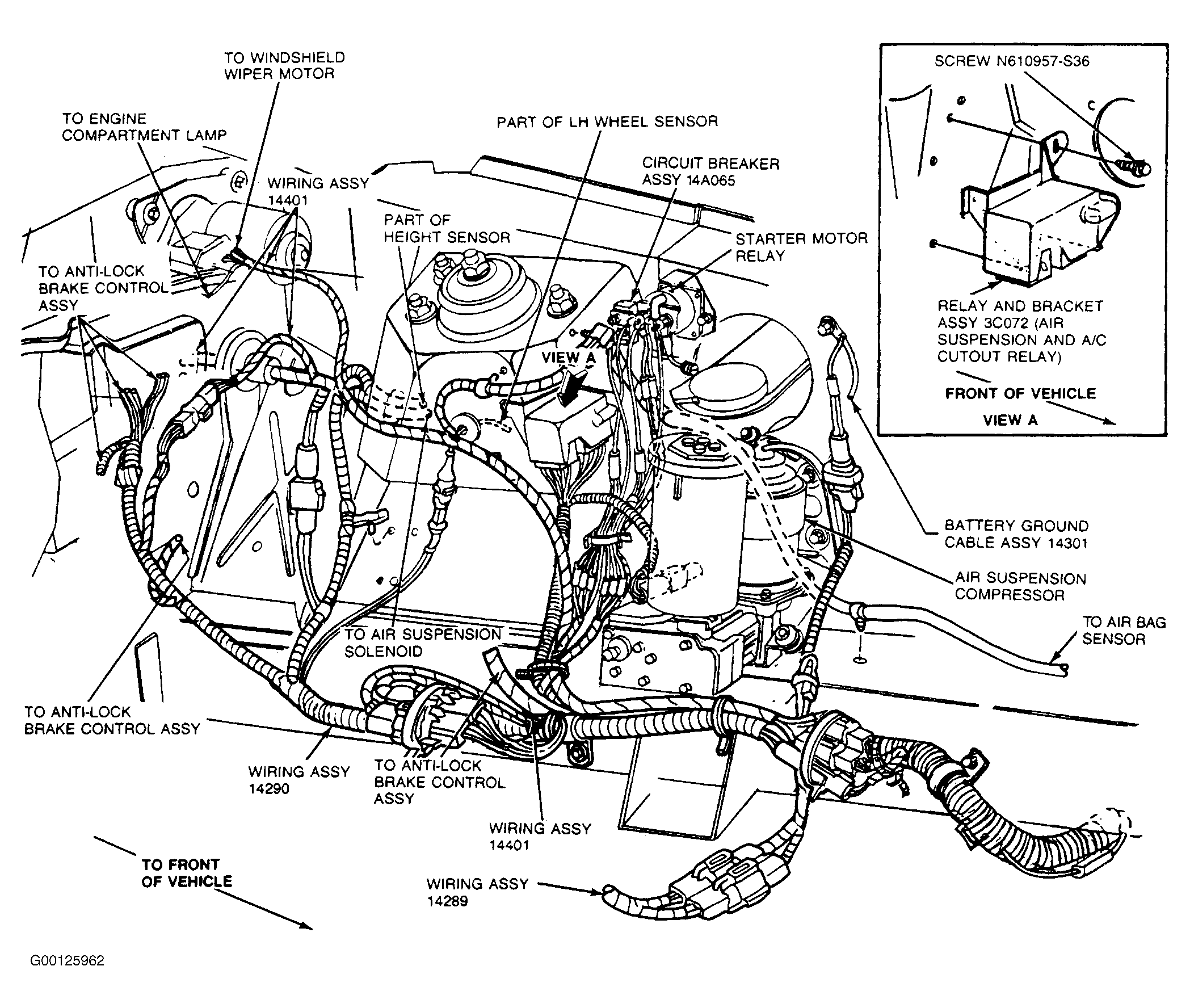

Fig 1: Locating In-line Circuit Breaker

Courtesy of FORD MOTOR CO.
