Engine Control System Wiring Diagrams

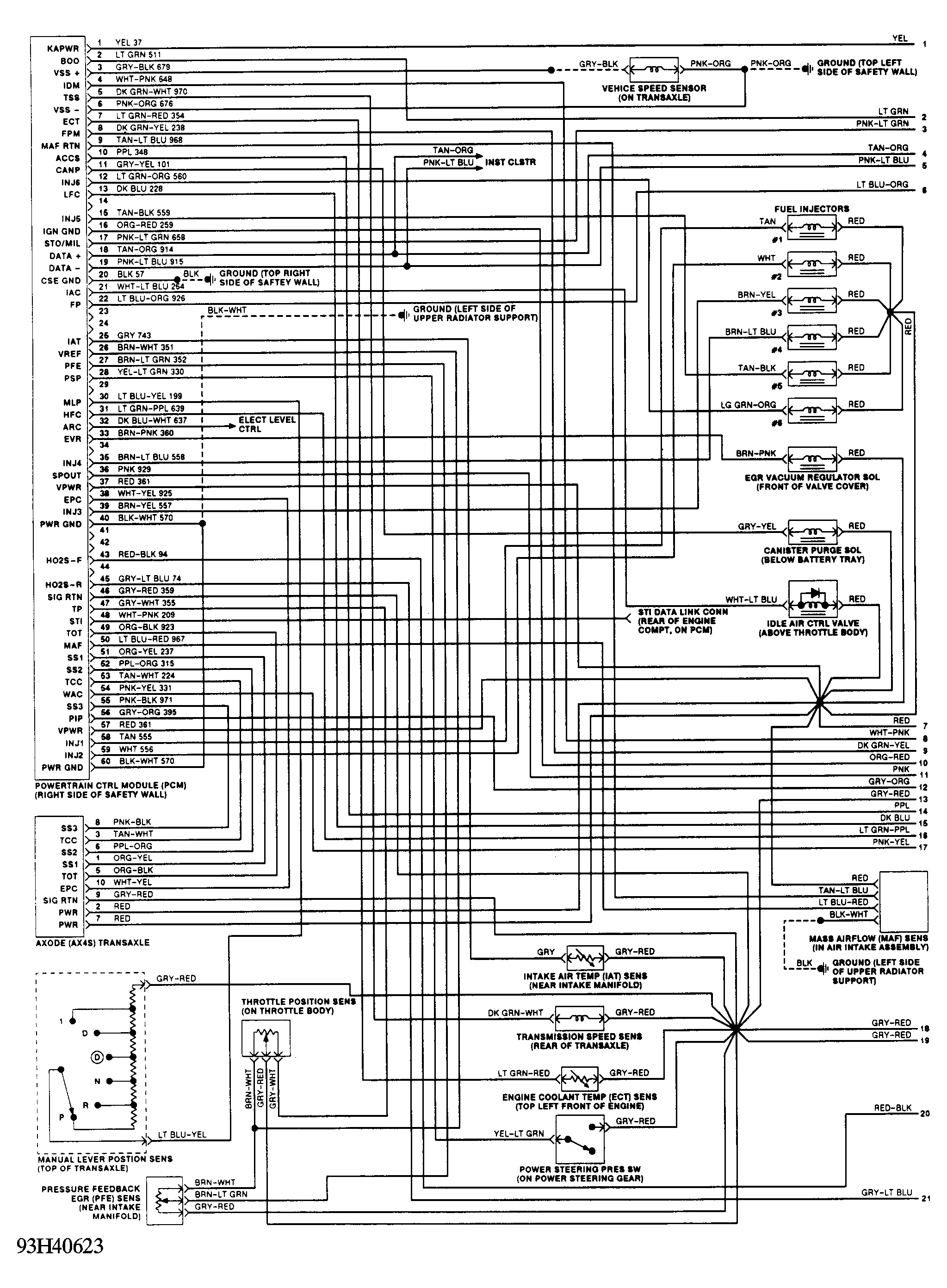

Fig 1: EEC-IV Wiring Diagram (Continental 3.8L - 1 of 2)
G93H40623

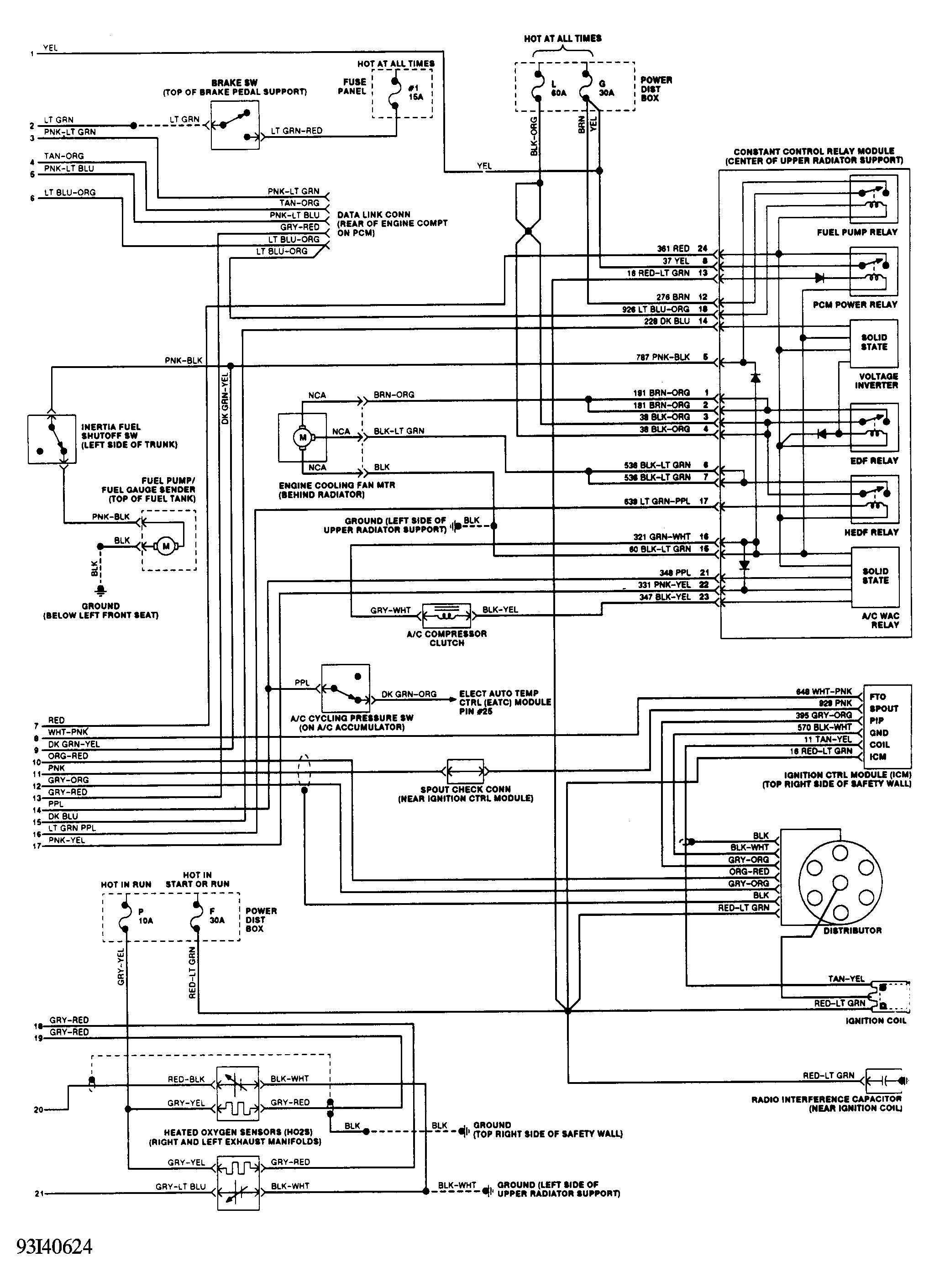

Fig 2: EEC-IV Wiring Diagram (Continental 3.8L - 2 of 2)
G93I40624
