Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|

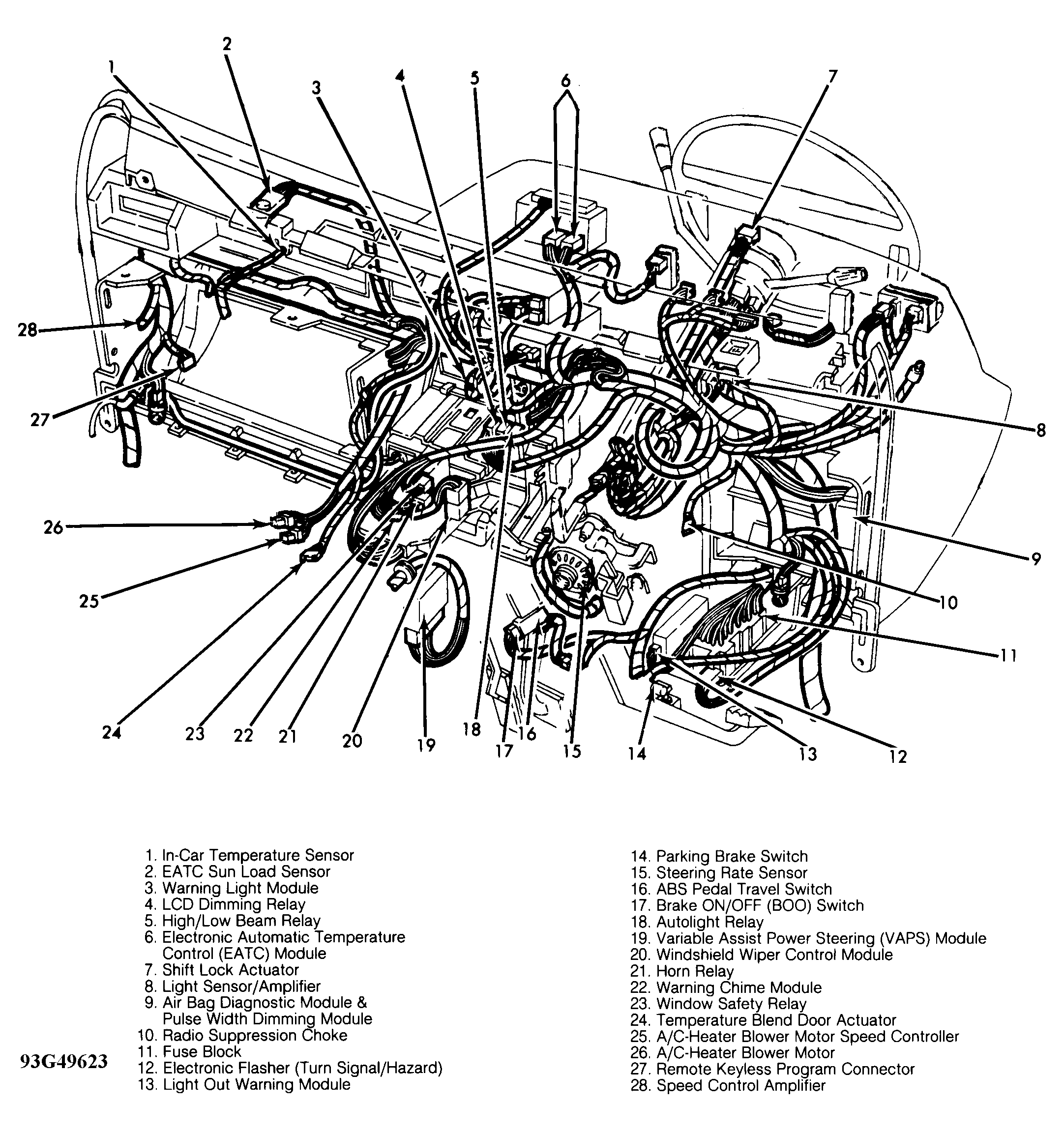

| Fuse Block | Behind left side of dash. See Figure . | |
| Fusible Links | ||

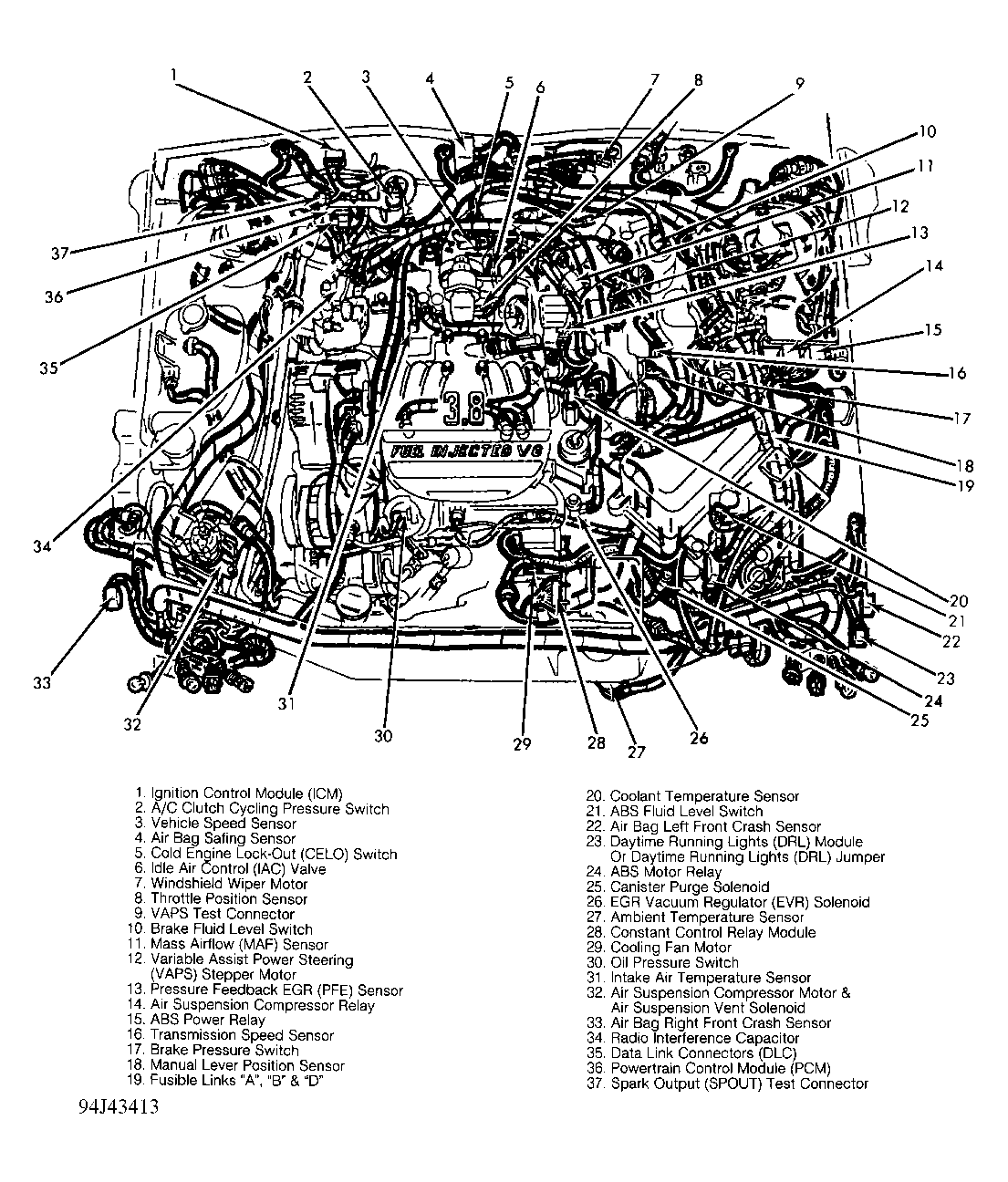

| "A" (Gray) | At starter relay, on left inner fender panel. See Figure . | |
| "B" (Blue) | At starter relay, on left inner fender panel. See Figure . | |
| "D" (Gray) | At starter relay, on left inner fender panel. See Figure . | |
| In-Line Fuses | ||
| Anti-Theft No. 1 | Below center of rear package shelf, taped to harness. | |
| Anti-Theft No. 2 | Below left side of rear package shelf, taped to harness. | |
| Mobile Telephone Nos. 1 & 2 | In trunk, taped to telephone harness. | |
| Power Antenna/Memory Seat | Below left side of rear package shelf, taped to harness. | |
| Power Distribution Block | In engine bay, above left wheelwell. | |
