Pinpoint Test Index

NOTE: To determine appropriate pinpoint test, see PINPOINT TEST SYMPTOM INDEX. Unless otherwise directed, perform pinpoint tests in order listed. The following illustrations are courtesy of Ford Motor Co.

Many test steps refer to pin numbers on various connectors. These connectors are identified in illustration. See Fig 1 -4. Courtesy of Ford Motor Co.Fig. 2: Identifying Connector Terminals

Fig 1: Identifying Connector C1

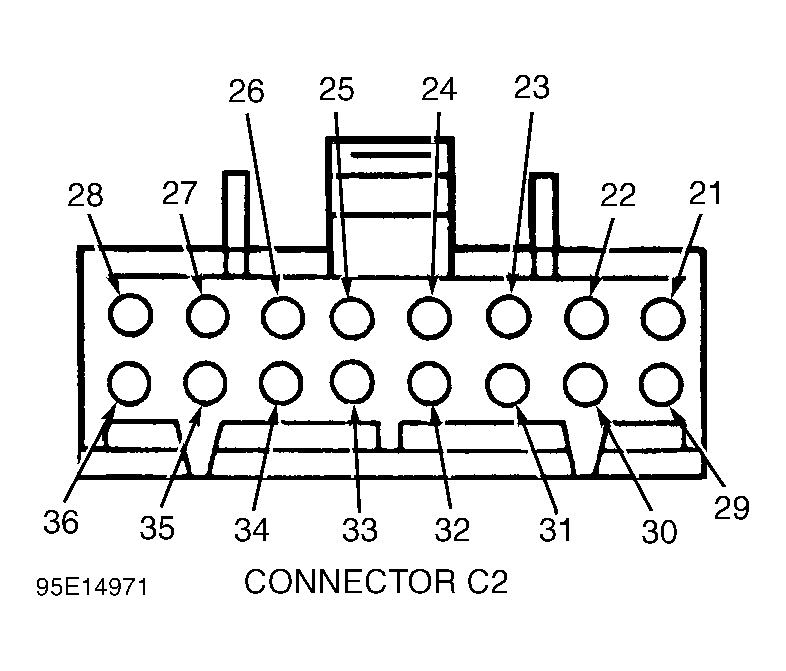

Fig 2: Identifying Connector C2

Fig 3: Identifying Connector C3

PINPOINT TEST SYMPTOM INDEX

Symptom	Go To Pinpoint Test
Power Seat Completely Inoperative	A
Forward/Rearward Function Does Not Work Properly	B
Up/Down Tilting Function Does Not Work Properly	C
Up/Down Lifting Function Does Not Work Properly	D
Lumbar Support Function Does Not Work Properly	E
Memory Seat Does Not Work Properly	F
