Diagnostic Trouble Code Reference Charts

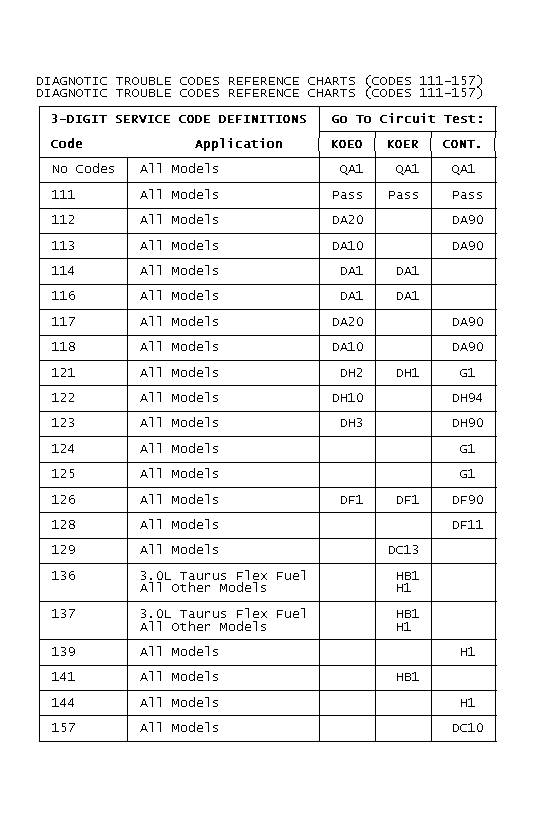

Fig 1: Diagnostic Trouble Codes Reference Charts (Codes 111-157)
GB0021917

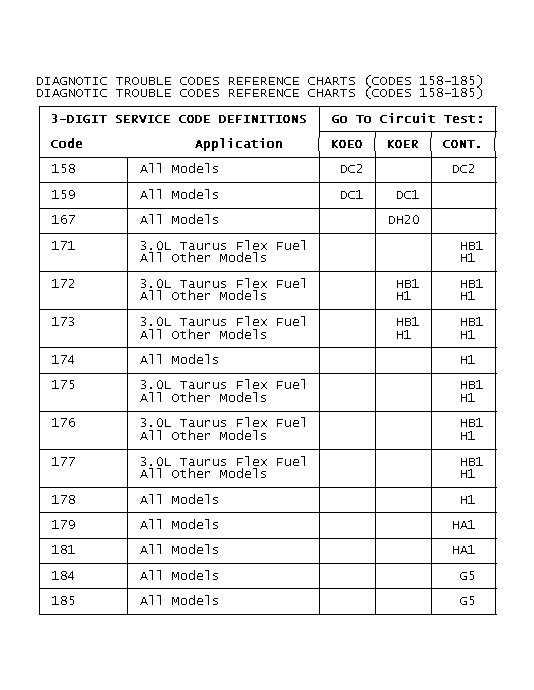

Fig 2: Diagnostic Trouble Codes Reference Charts (Codes 158-185)
GB0021918

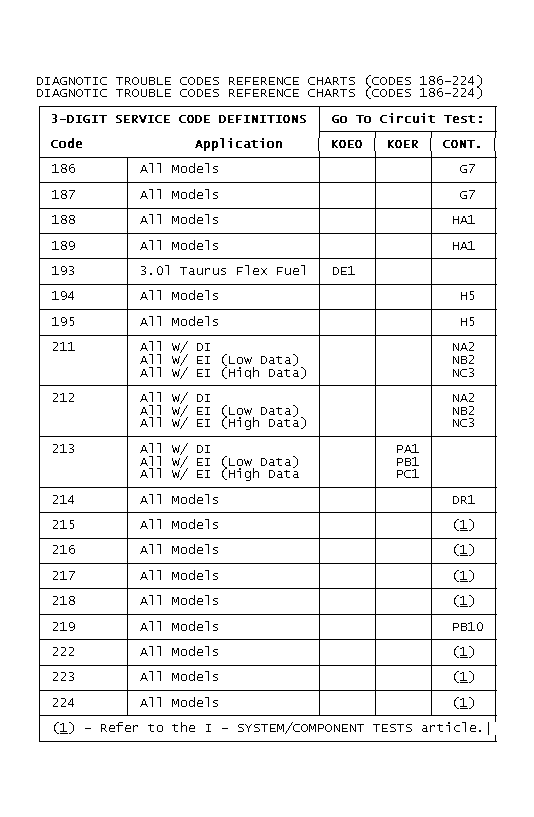

Fig 3: Diagnostic Trouble Codes Reference Charts (Codes 186-224)
GB0021919

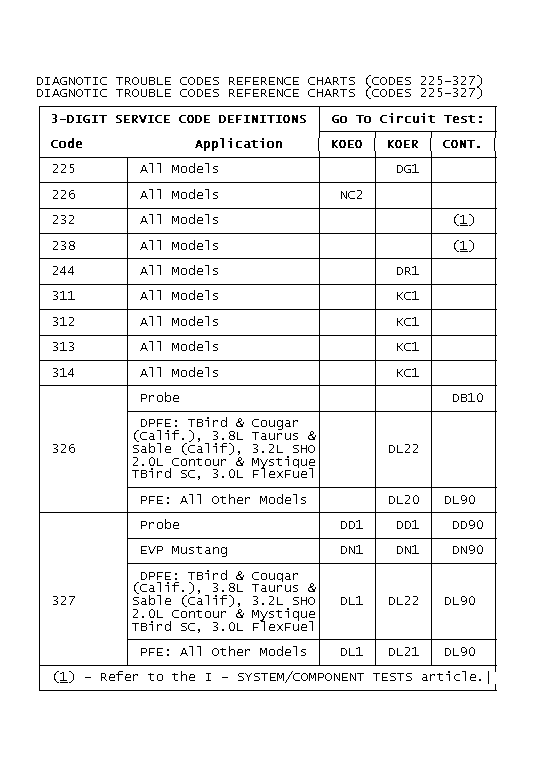

Fig 4: Diagnostic Trouble Codes Reference Charts (Codes 225-327)
GB0021920

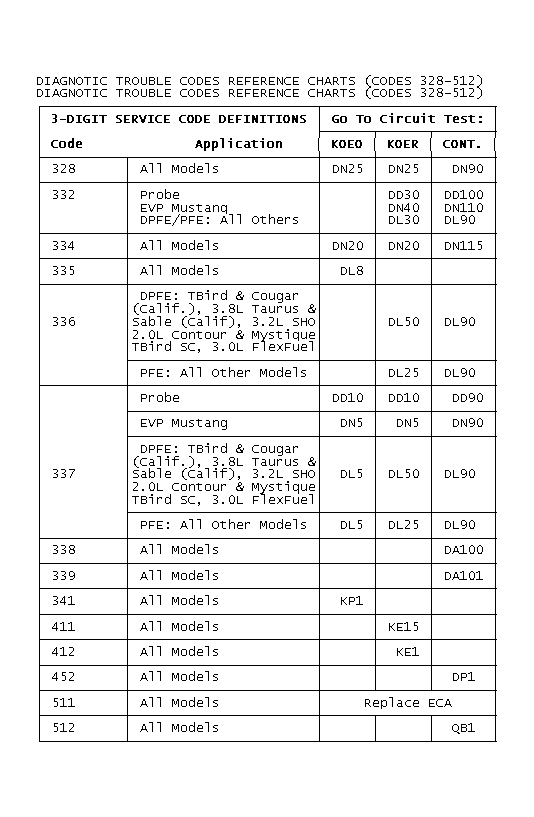

Fig 5: Diagnostic Trouble Codes Reference Charts (Codes 328-512)
GB0021921

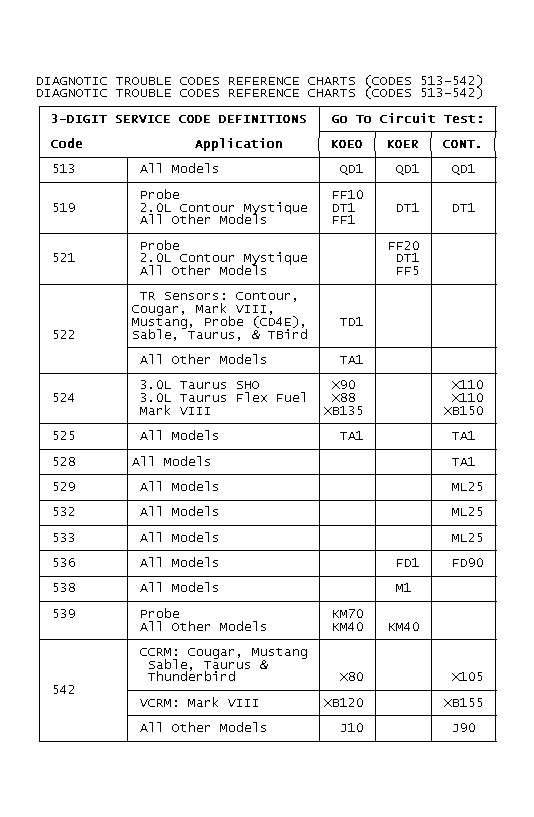

Fig 6: Diagnostic Trouble Codes Reference Charts (Codes 513-542)
GB0021922

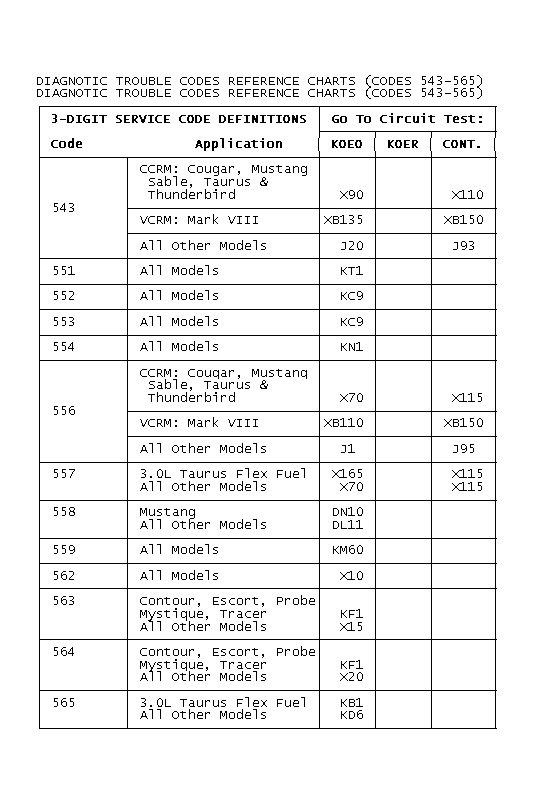

Fig 7: Diagnostic Trouble Codes Reference Charts (Codes 543-565)
GB0021923

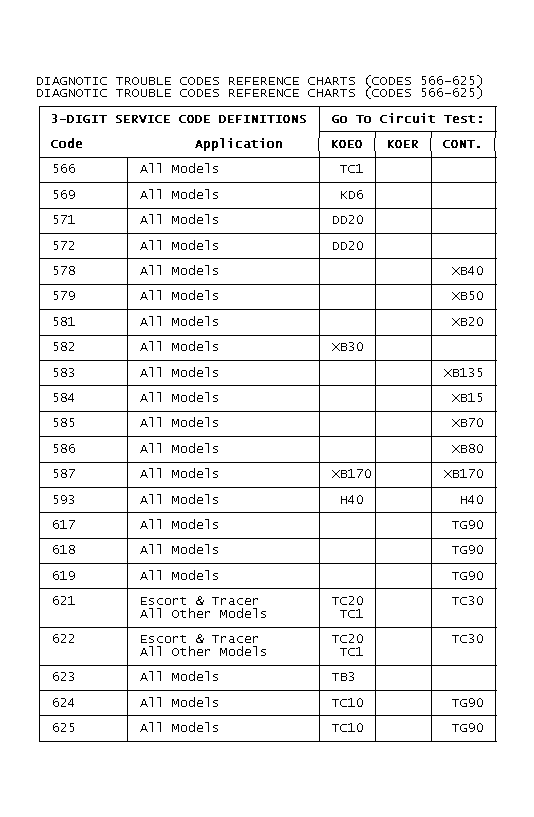

Fig 8: Diagnostic Trouble Codes Reference Charts (Codes 566-625)
GB0021924

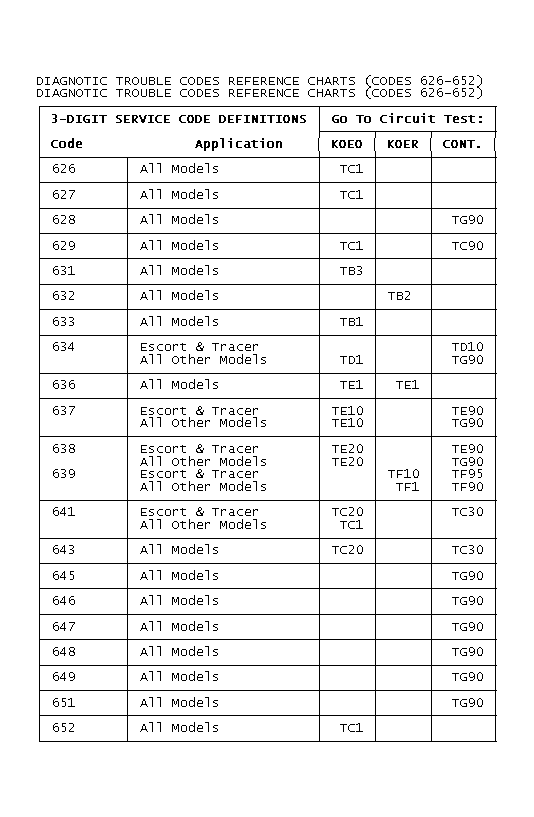

Fig 9: Diagnostic Trouble Codes Reference Charts (Codes 626-652)
GB0021925

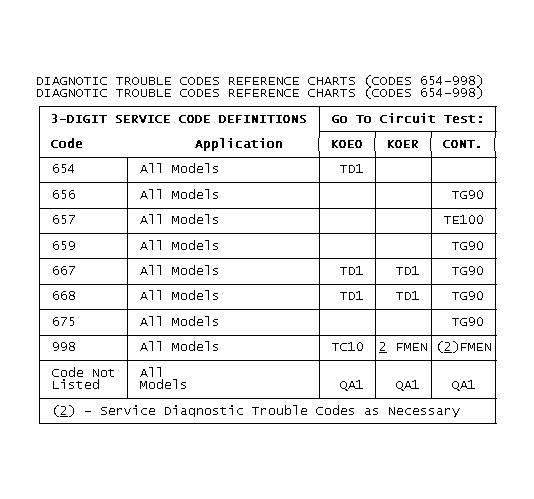

Fig 10: Diagnostic Trouble Codes Reference Charts (Codes 654-998)
GB0021926
