Pinpoint Test Symptom Chart

NOTE: To determine appropriate pinpoint test, see SYMPTOM CHART table. Unless otherwise directed, perform pinpoint tests in order listed. The following illustrations are courtesy of Ford Motor Co.

Many test steps refer to pin numbers on various connectors. These connectors are identified in illustration. See Fig 1 -4.

Fig 1: Seat Memory Module Connector Terminal C1 ID (Mark VIII)

Courtesy of FORD MOTOR CO.

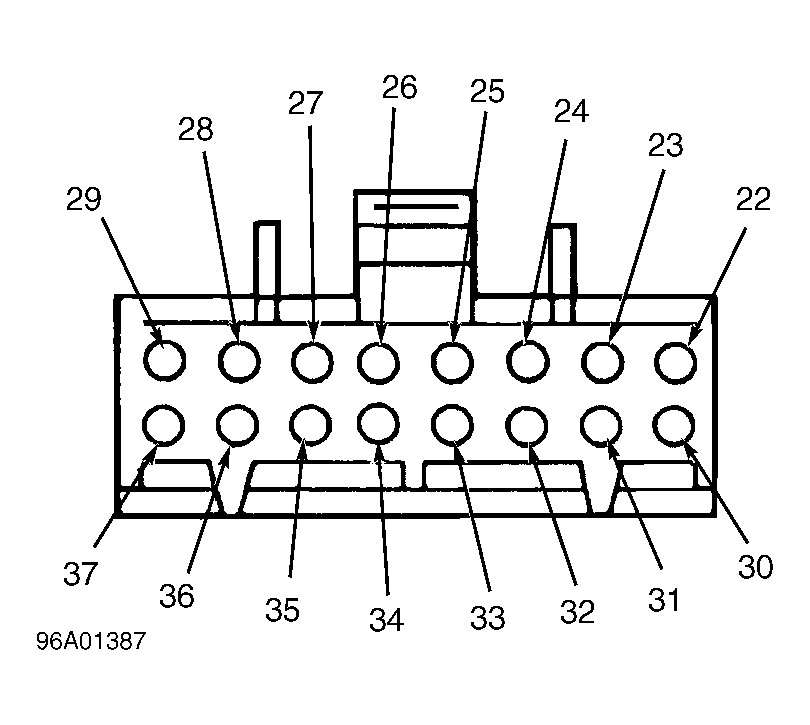

Fig 2: Seat Memory Module Connector Terminal C2 ID (Mark VIII)

Courtesy of FORD MOTOR CO.

Fig 3: Seat Memory Module Connector Terminal C3 ID (Mark VIII)

Courtesy of FORD MOTOR CO.

SYMPTOM CHART

Symptom	Go To PINPOINT TEST
Power Seat Inoperative	A
Forward/Rearward Function Does Not Work Properly	B
Up/Down Tilting Function Does Not Work Properly	C
Up/Down Lifting Function Does Not Work Properly	D
Lumbar Support Function Does Not Work Properly	E
Memory Seat Does Not Work Properly	F
