Connector Identification

Fig 1: Driver (C371) & Passenger (C374) Heated Seat Module Harness Connector
G95E13593Courtesy of FORD MOTOR CO.
Fig 2: Driver (C344) & Passenger (C345) Lumbar Control Switch Harness Connector
G98C00879Courtesy of FORD MOTOR CO.
Fig 3: Driver Seat (C367) & Passenger Seat (C368) Control Switch Harness Connectors
G96I31326Courtesy of FORD MOTOR CO.
Fig 4: Driver Seat Motor (C351), Passenger Seat Motor (C331) & Mirror Control Switch (C515) Harness Connectors
G96A31328Courtesy of FORD MOTOR CO.

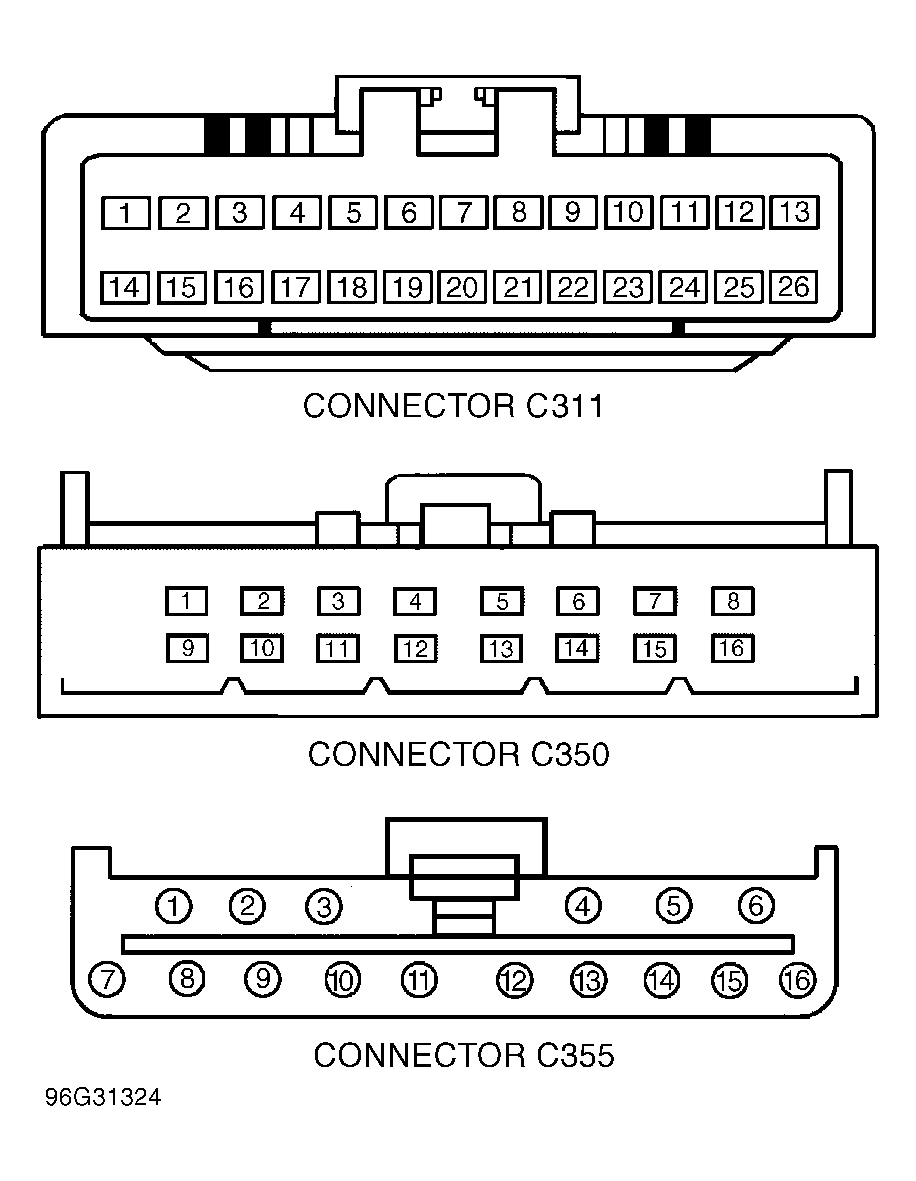

Fig 5: Driver Seat Module Harness Connectors
G96G31324Courtesy of FORD MOTOR CO.

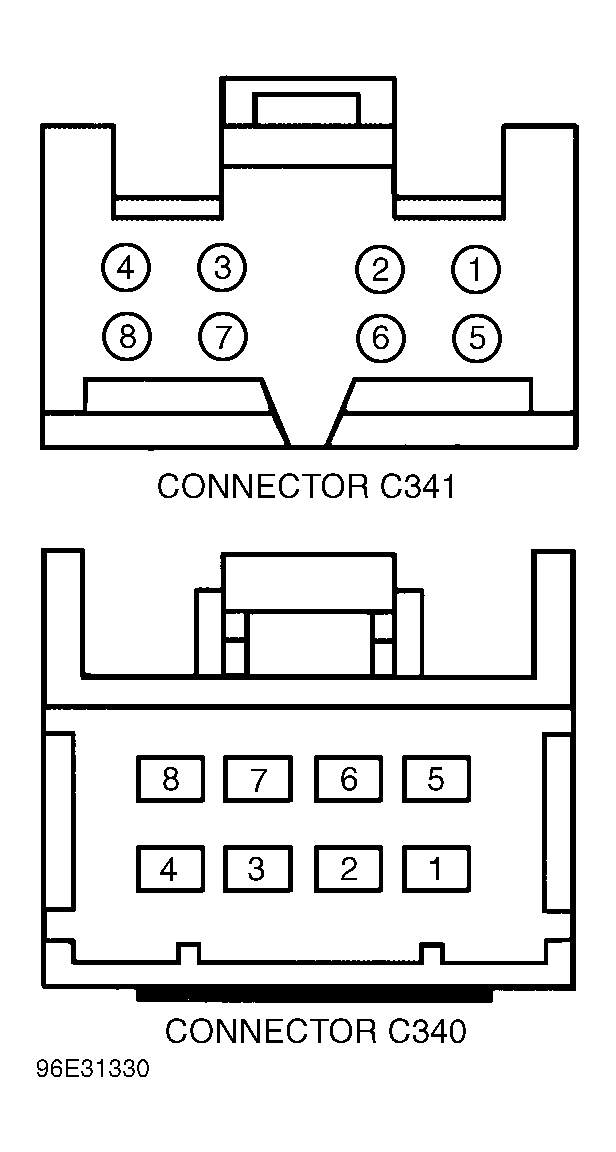

Fig 6: Heated Seat Control Switch Harness Connectors
G96E31330Courtesy of FORD MOTOR CO.

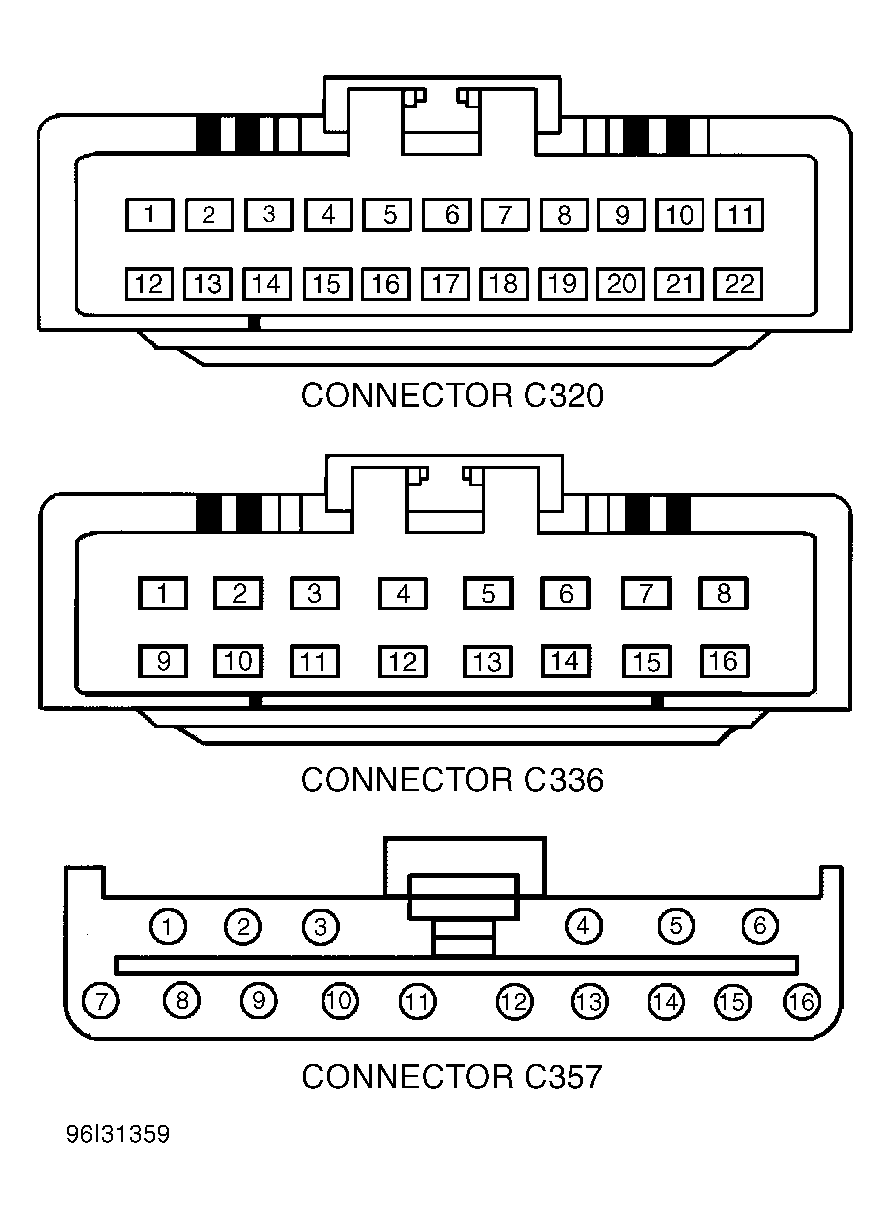

Fig 7: Passenger Seat Module Harness Connectors
G96I31359Courtesy of FORD MOTOR CO.

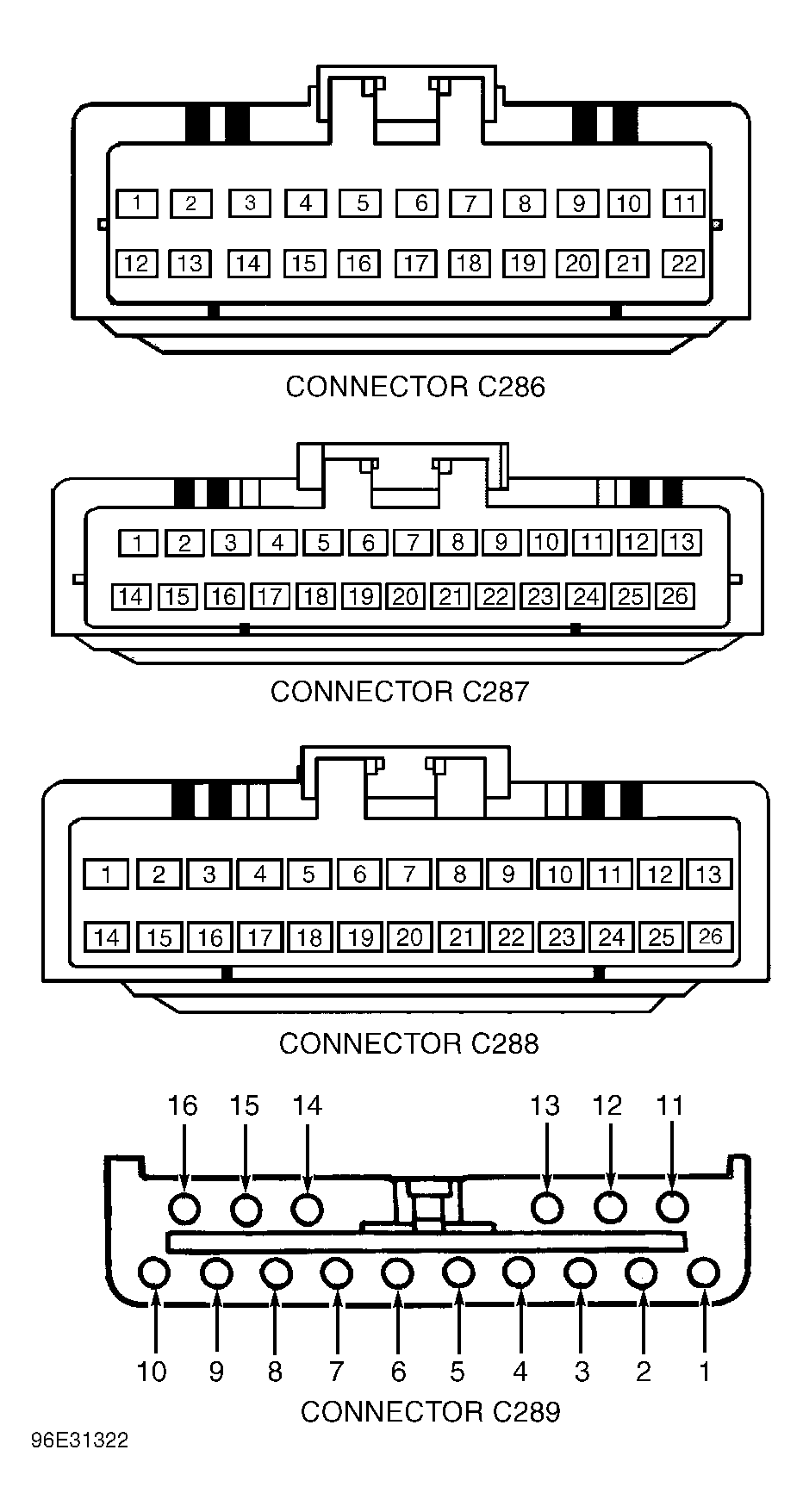

Fig 8: Steering Column/Ignition/Lighting Control (SCIL) Module Harness Connectors
G96E31322Courtesy of FORD MOTOR CO.
