Control Module

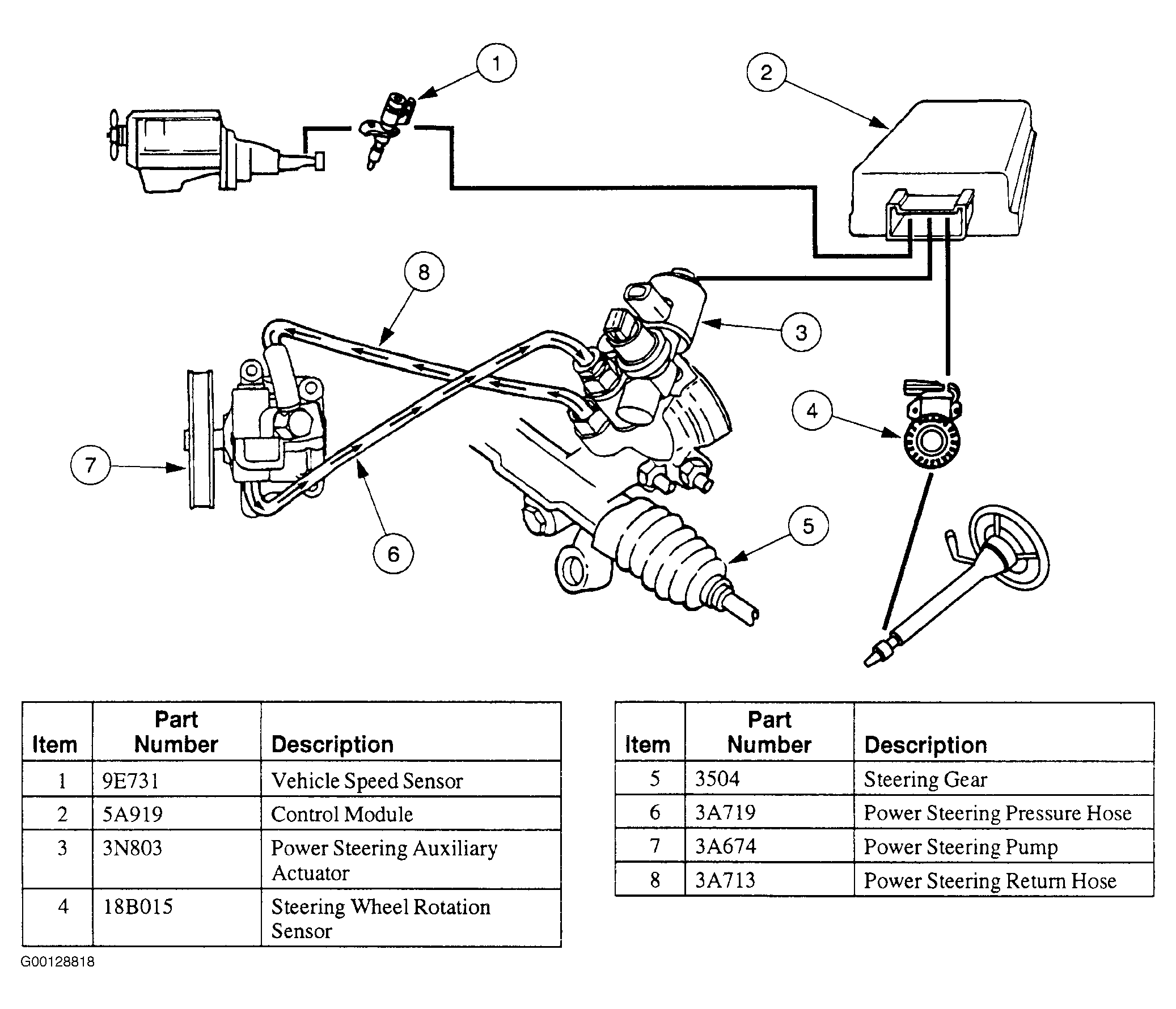

The control module contains a microprocessor which analyzes the Vehicle Speed Sensor (VSS) input and the electronic steering sensor input continuously. See Figure . With this information, the microprocessor controls the EVO power steering control valve actuator, thereby regulating the fluid flow from the power steering pump.
