Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

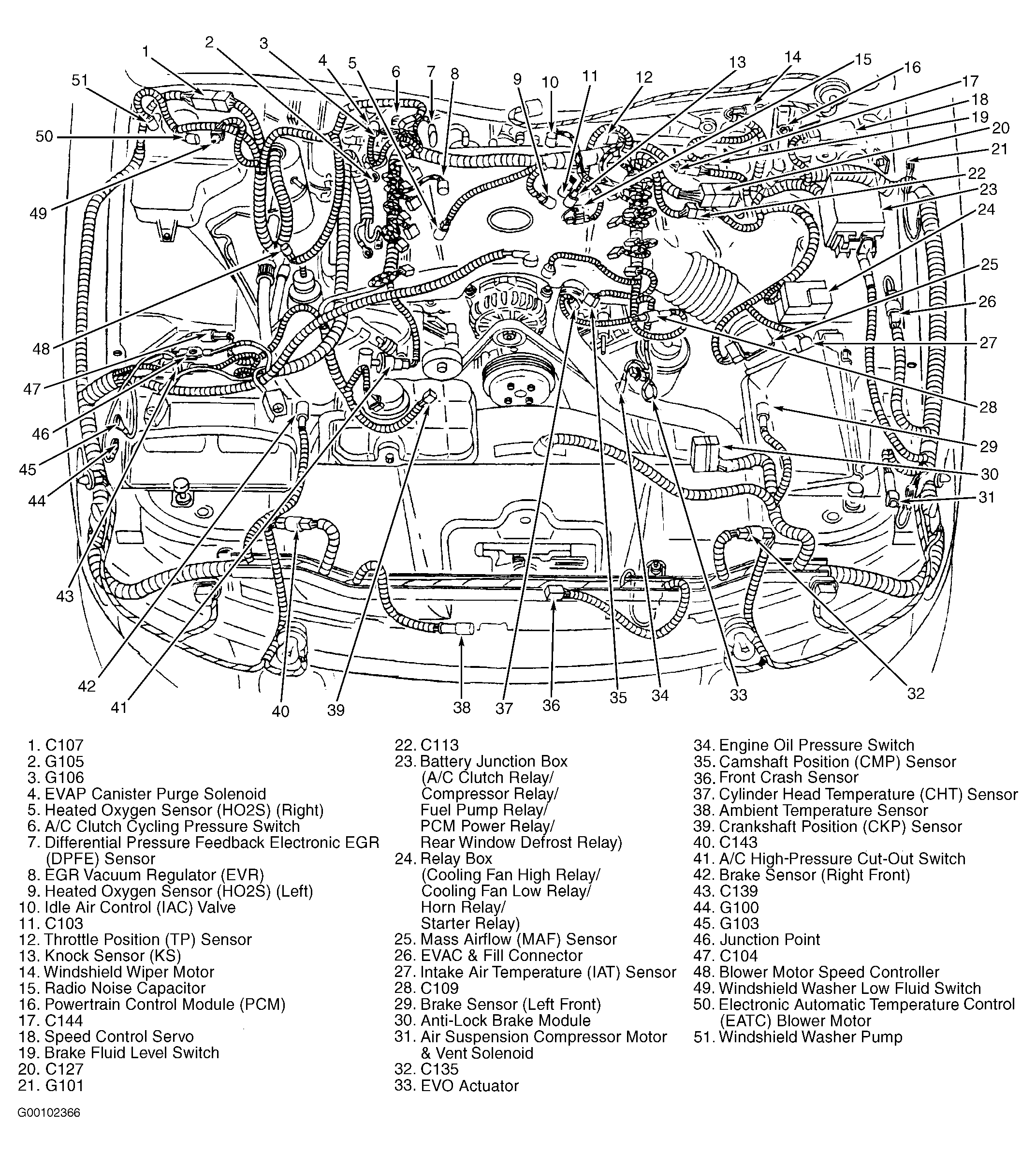

Battery Junction Box Left side of engine compartment, front of wheelwell. See Figure.

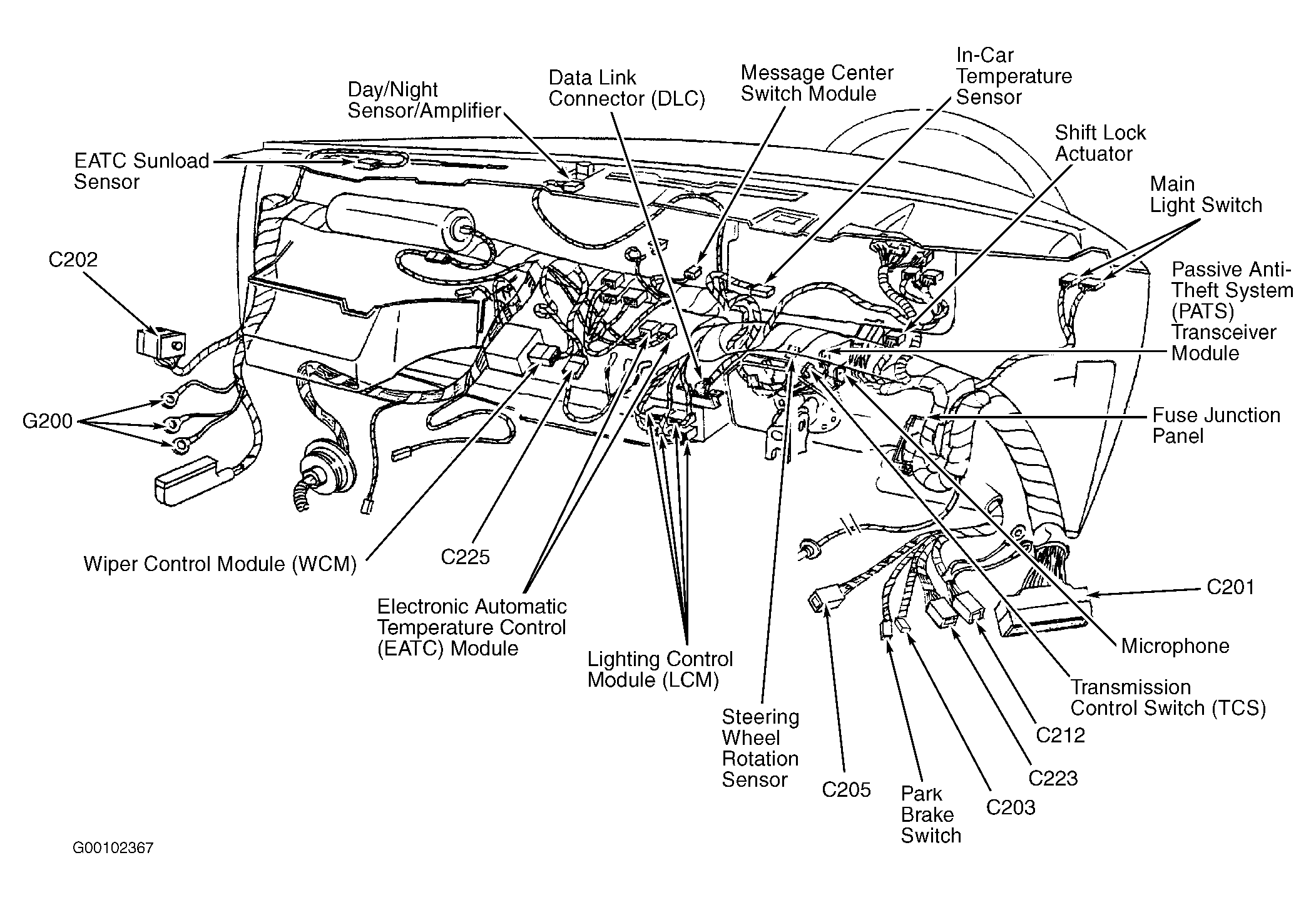

Fuse Junction Panel Behind left side of dash, to left of steering column. See Figure.
Fuse Link A/B At battery junction box.
PCM Diode In battery junction box.
Relay Box Left side of engine compartment, on top of wheelwell. See Figure.
