Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

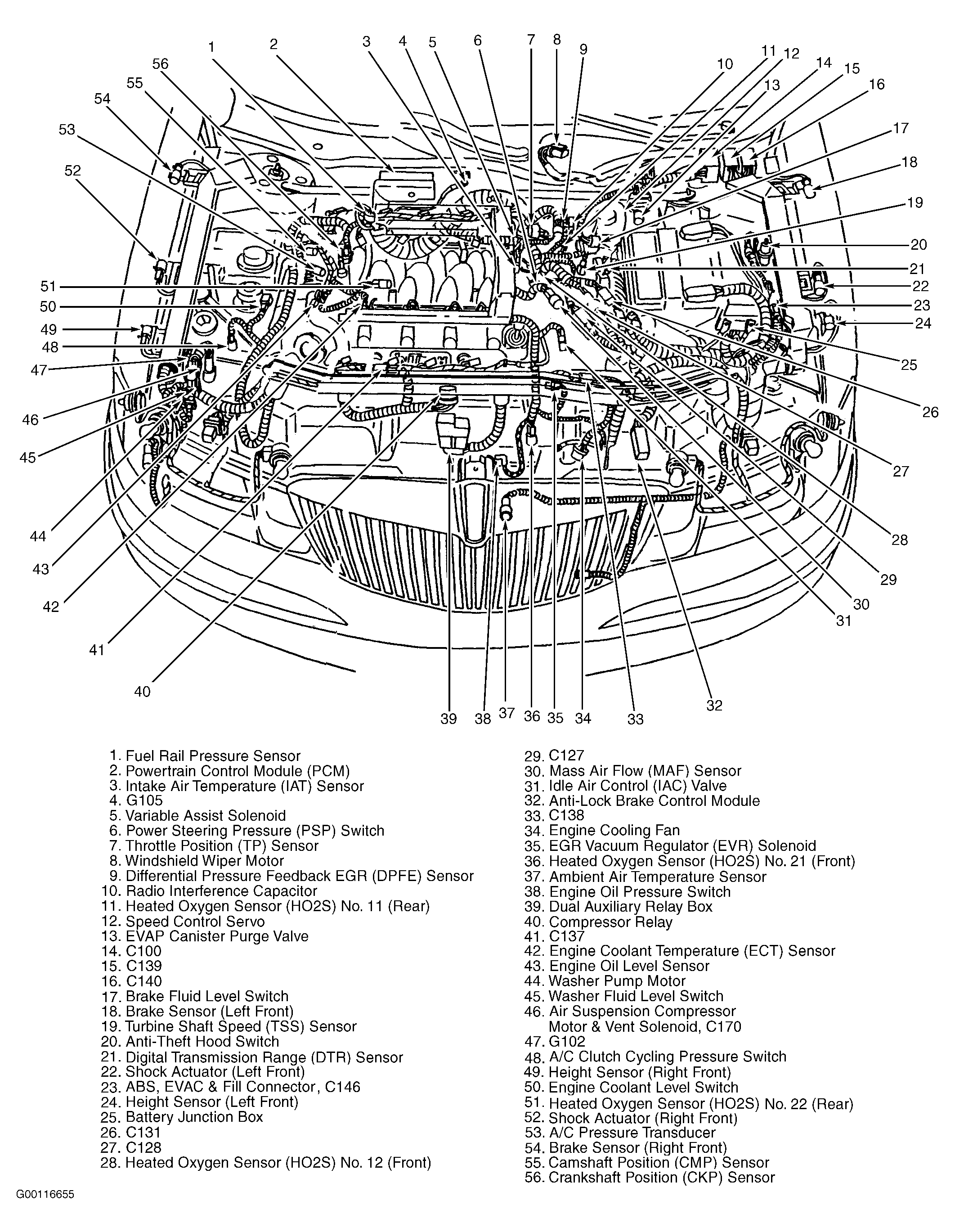

| Battery Junction Box | In engine compartment, above left wheelwell. See Figure. |

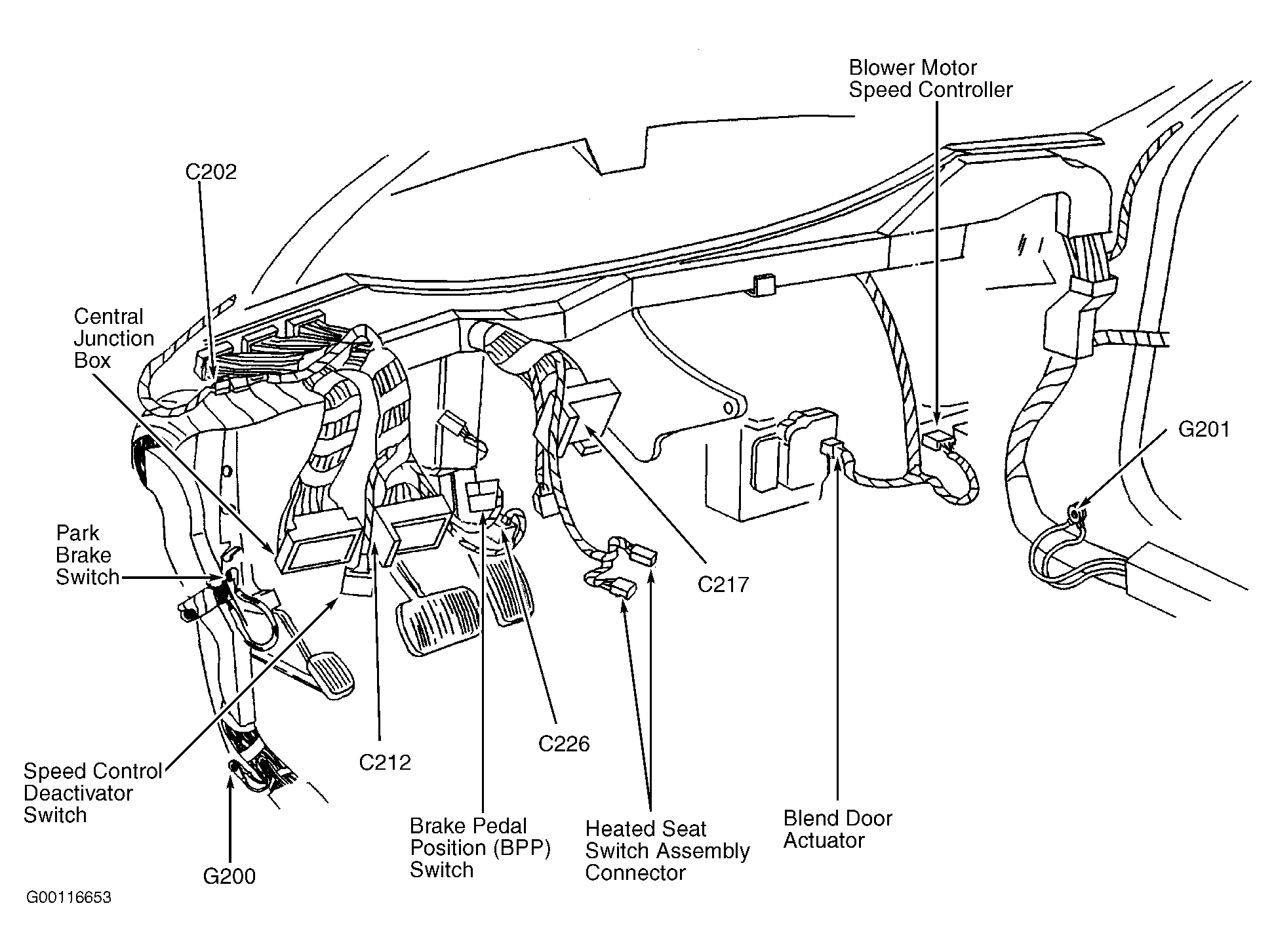

| Central Junction Box | Below left side of dash. See Figure. |
| Dual Auxiliary Relay Box | Center of engine compartment, on upper radiator support. See Figure. |
| Power Distribution Box | In battery junction box. |
