Navigation System Module C4209

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

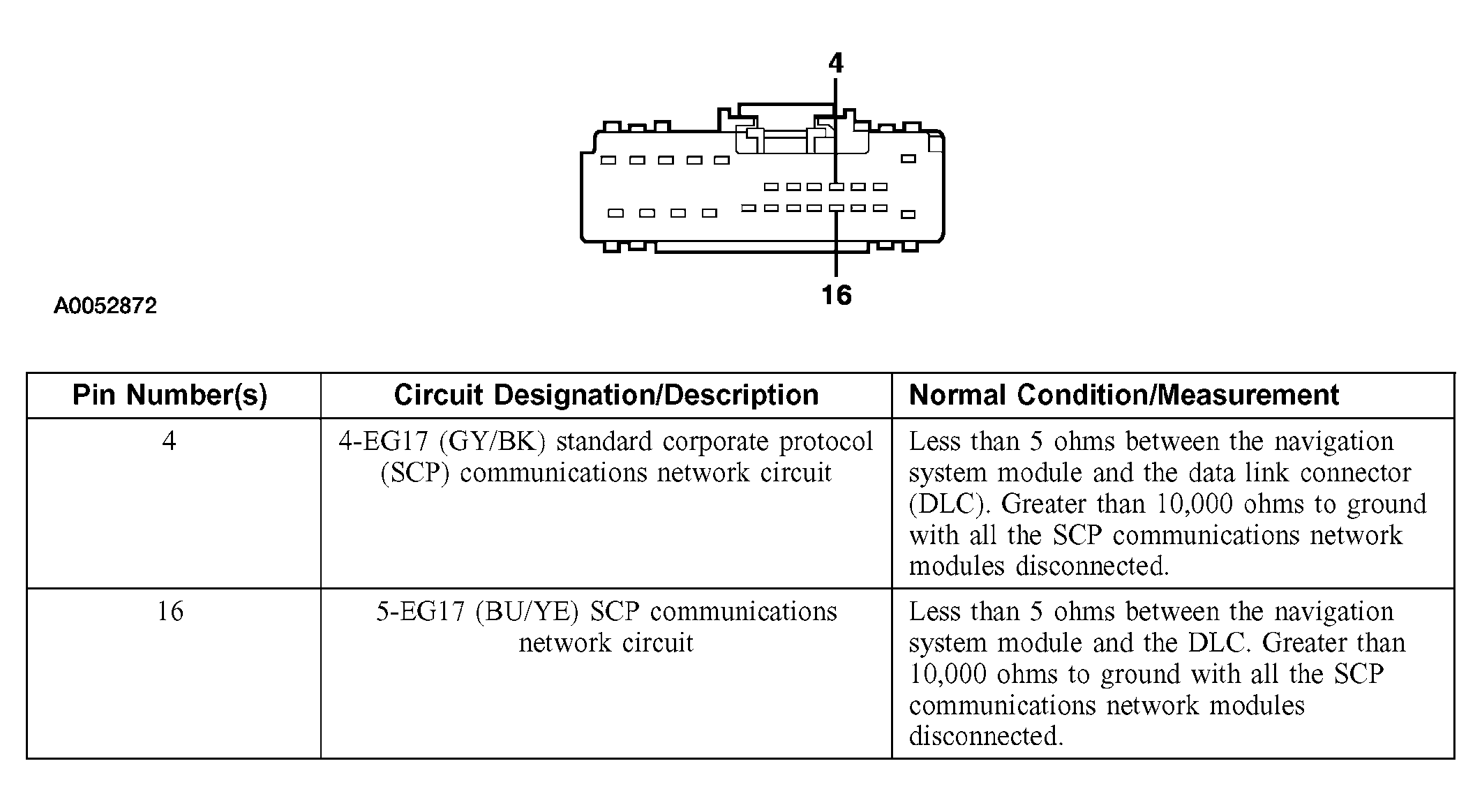

Fig 1: Identifying Navigation System Module C4209
G03998815Courtesy of FORD MOTOR CO.
