Anti-Lock Brake System/Traction Control (ABS/TC) Module C155

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

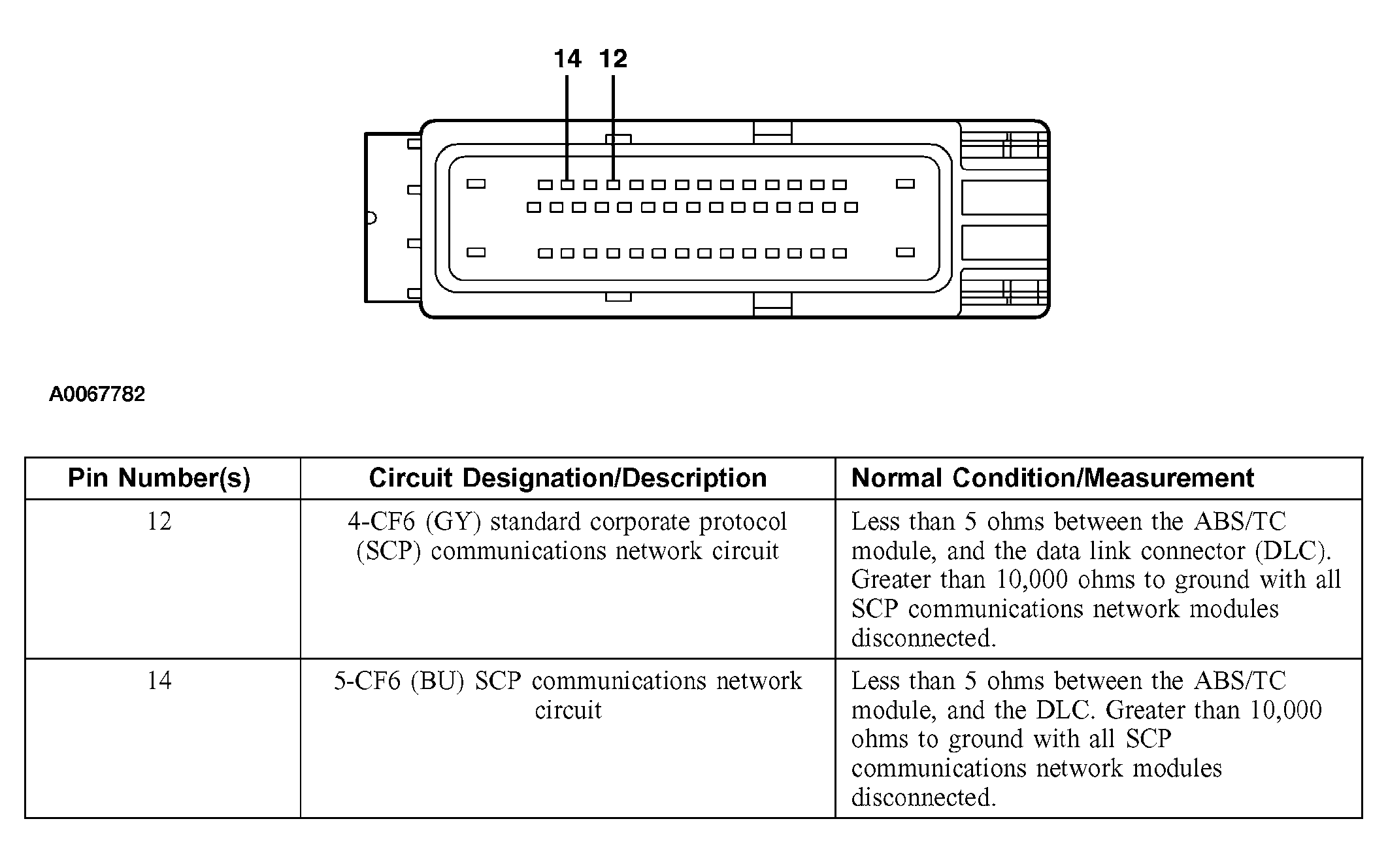

Fig 1: Identifying Anti-Lock Brake System/Traction Control (ABS/TC) Module C155
G03998791Courtesy of FORD MOTOR CO.
