Camshaft Position Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.







2. Disconnect the Camshaft Position (CMP) sensor electrical connector.

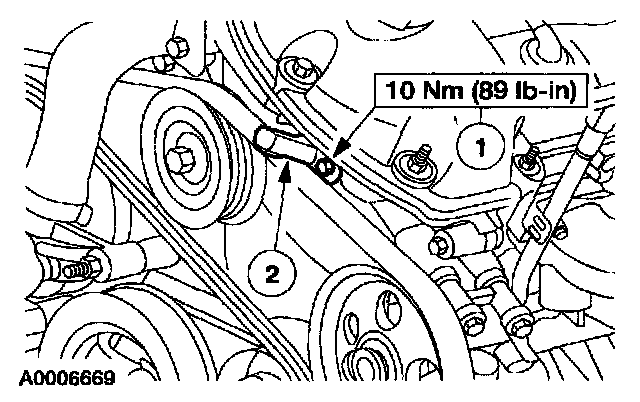

3. Remove the CMP sensor.
1 Remove the bolt from the CMP sensor.
2 Remove the CMP sensor from the vehicle.

INSTALLATION
1. To install, reverse the removal procedure.

CAUTION: Do not overtighten the screw or damage to the CMP sensor may occur.
