Approach Lamp Assembly

WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

Squeeze the tab and lower the approach lamp assembly.

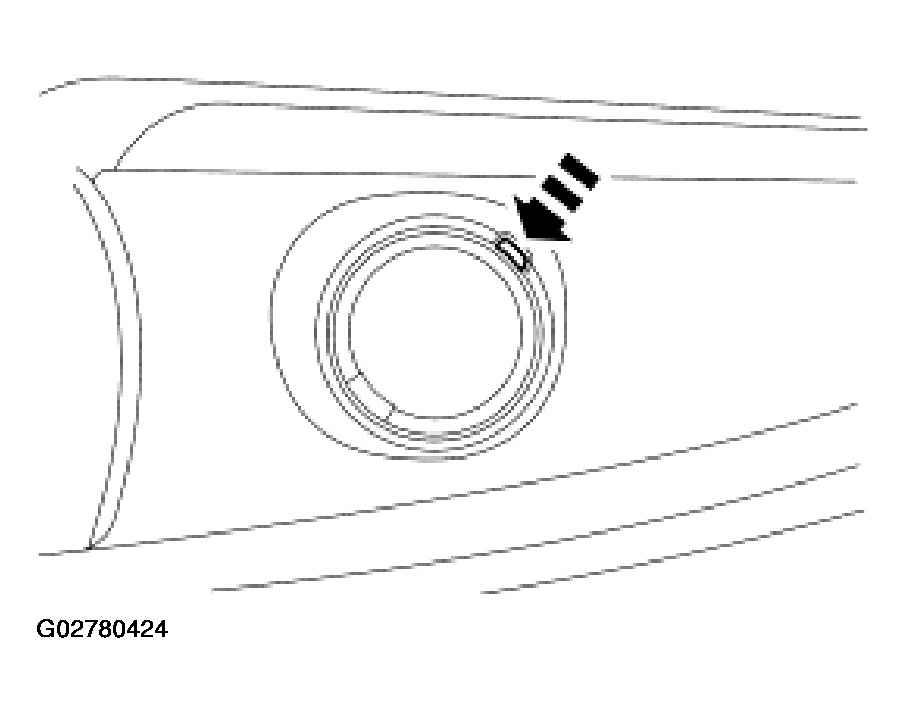

Fig 1: Lowering Approach Lamp Assembly
Courtesy of FORD MOTOR CO.
Disconnect the electrical connectors.

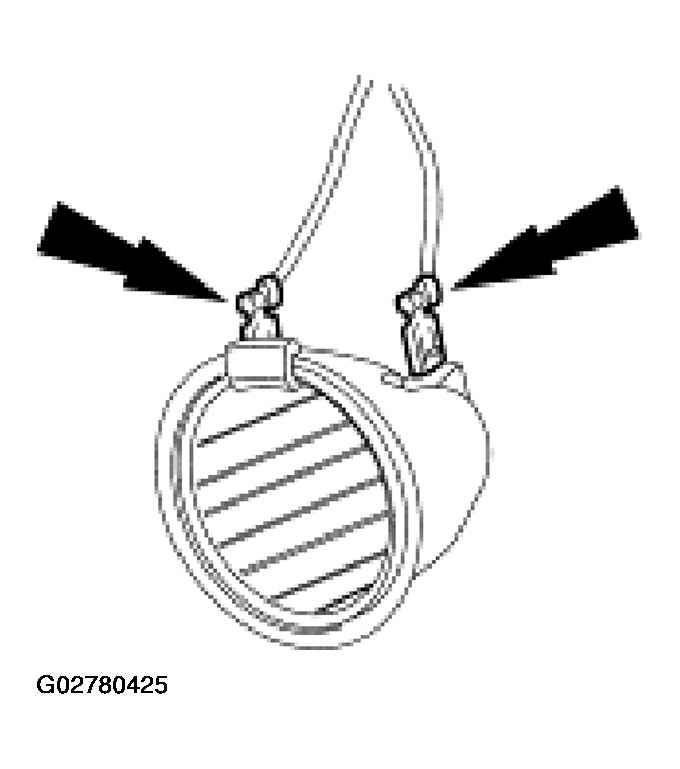

Fig 2: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
