Torque Specifications

TORQUE SPECIFICATIONS

Application

Ft. Lbs. (N.m)

Camshaft Sprocket Bolts

89 (120)

Connecting Rod Bolt ⁽¹⁾

Step 1

18 (25)

Step 2

30 (45)

Step 3

Additional 90 Degrees

Crankshaft Damper Bolt

Step 1

66 (89)

Step 2

Loosen 360 Degrees

Step 3

37 (50)

Step 4

Additional 90 Degrees

Cylinder Head Bolt ⁽¹⁾⁽²⁾

Step 1

30 (40)

Step 2

Additional 90 Degrees

Step 3

Additional 90 Degrees

EGR Valve

18 (25)

Engine Mount Through-Bolt

59 (80)

Exhaust Manifold Nut ⁽³⁾

17-19 (23-27)

Flexplate-To-Crankshaft Bolt

54-64 (73-87)

Front Cover Bolt/Stud⁽⁴⁾

18 (25)

Idler Pulley Bolt

37 (50)

Main Bearing Cap Bolt ⁽¹⁾⁽⁵⁾

Step 1

30 (40)

Step 2

Additional 90 Degrees

Main Bearing Cap Side Bolt

Step 1

22 (30)

Step 2

Additional 90 Degrees

Oil Pan Bolt ⁽⁶⁾

Step 1

⁽⁷⁾

Step 2

15 (20)

Step 3

Additional 60 Degrees

Power Steering Pump Bolts

18 (25)

Timing Chain Tensioner Bolt

18 (25)

Torque Converter Nut

18 (25)

Water Pump Bolt

15-22 (20-30)

Water Pump Pulley Bolt

18 (25)

INCH Lbs. (N.m)

Balance Tube Bolts

89 (10)

Camshaft Cap Bolt ⁽⁸⁾

89 (10)

Intake Manifold

Lower

Step 1

89 (10)

Step 2

Additional 90 Degrees

Upper

Step 1

89 (10)

Step 2

Additional 90 Degrees

Timing Chain Guide Bolts

89 (10)

Valve Cover Bolt

71-106 (8-12)

⁽¹⁾	Use new bolts. DO NOT reuse bolts.

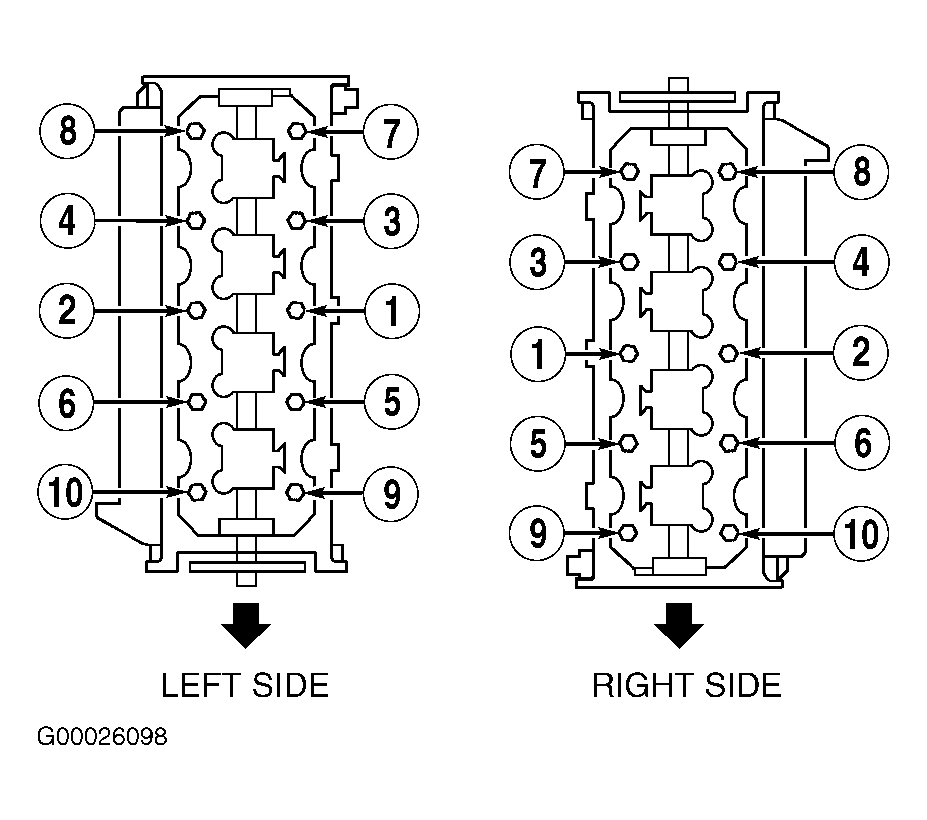

⁽²⁾	Tighten bolts in sequence. See Figure.

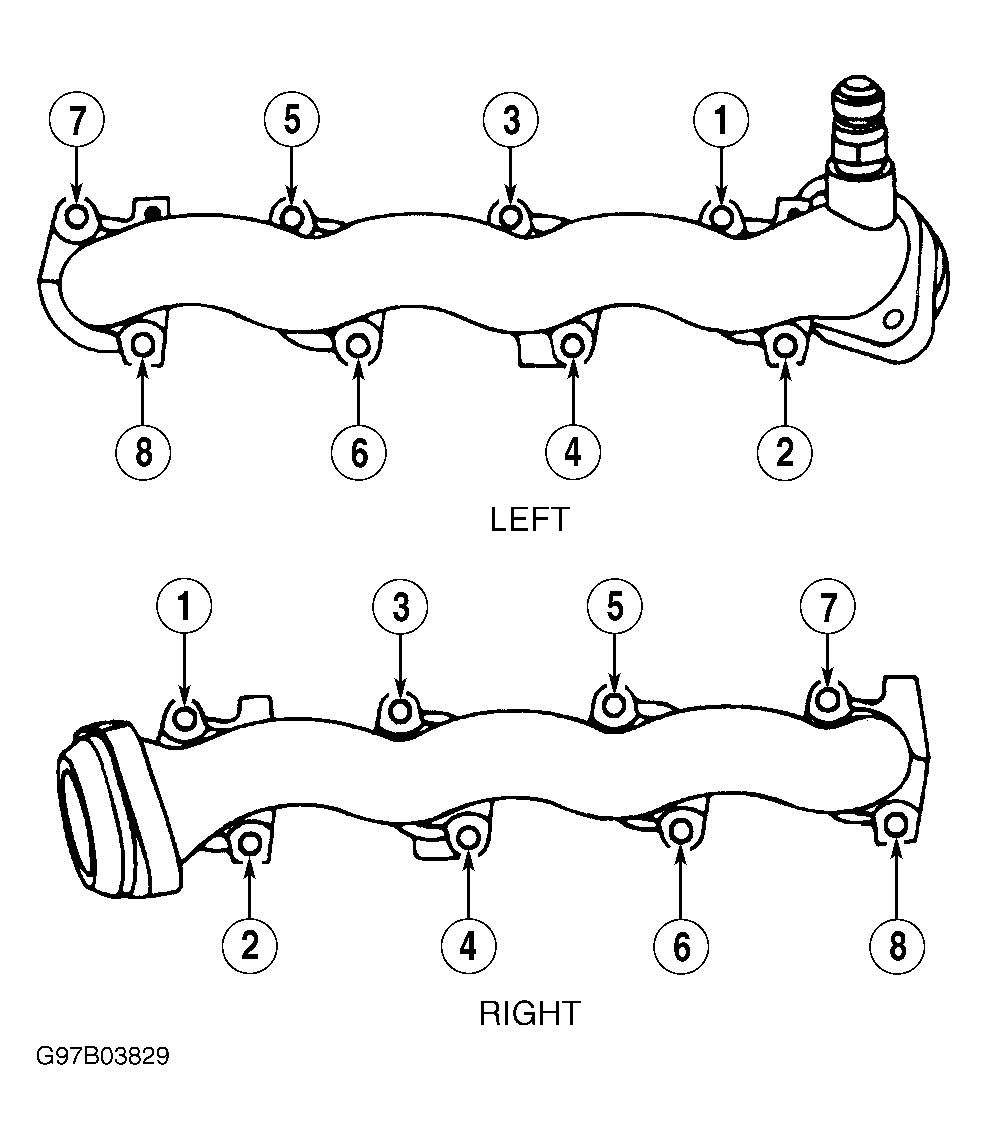

⁽³⁾	Tighten bolts in sequence. See Figure.

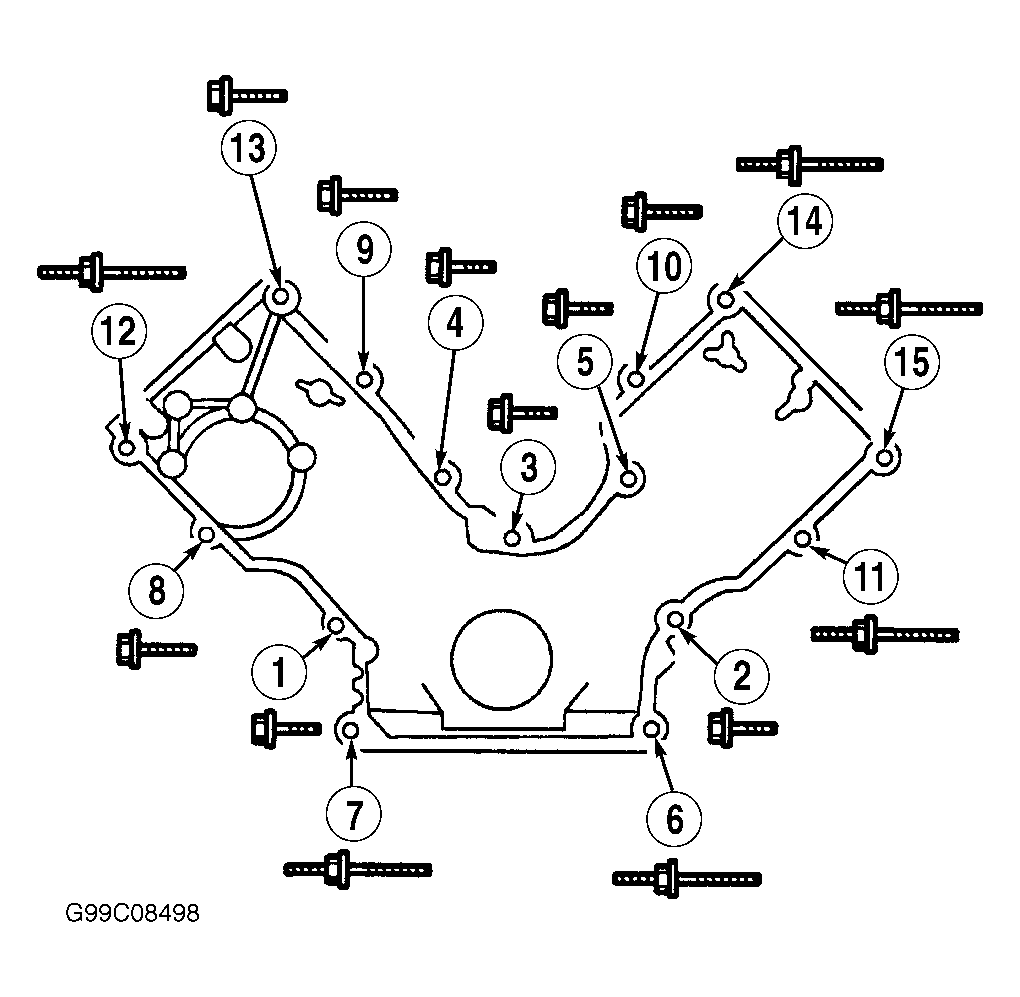

⁽⁴⁾	Tighten bolts in sequence. See Figure.

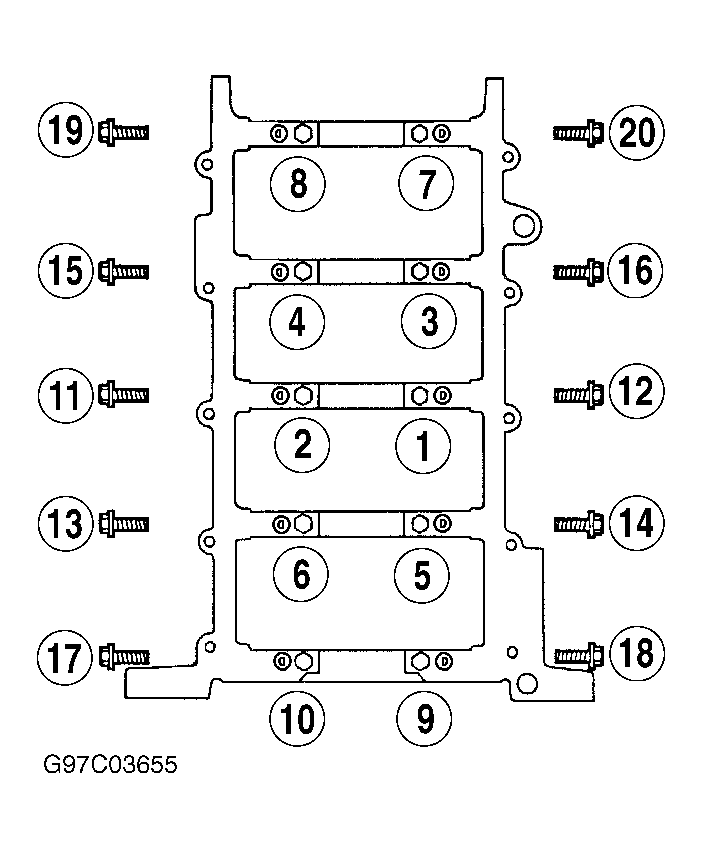

⁽⁵⁾	Tighten bolts in sequence. See Figure.

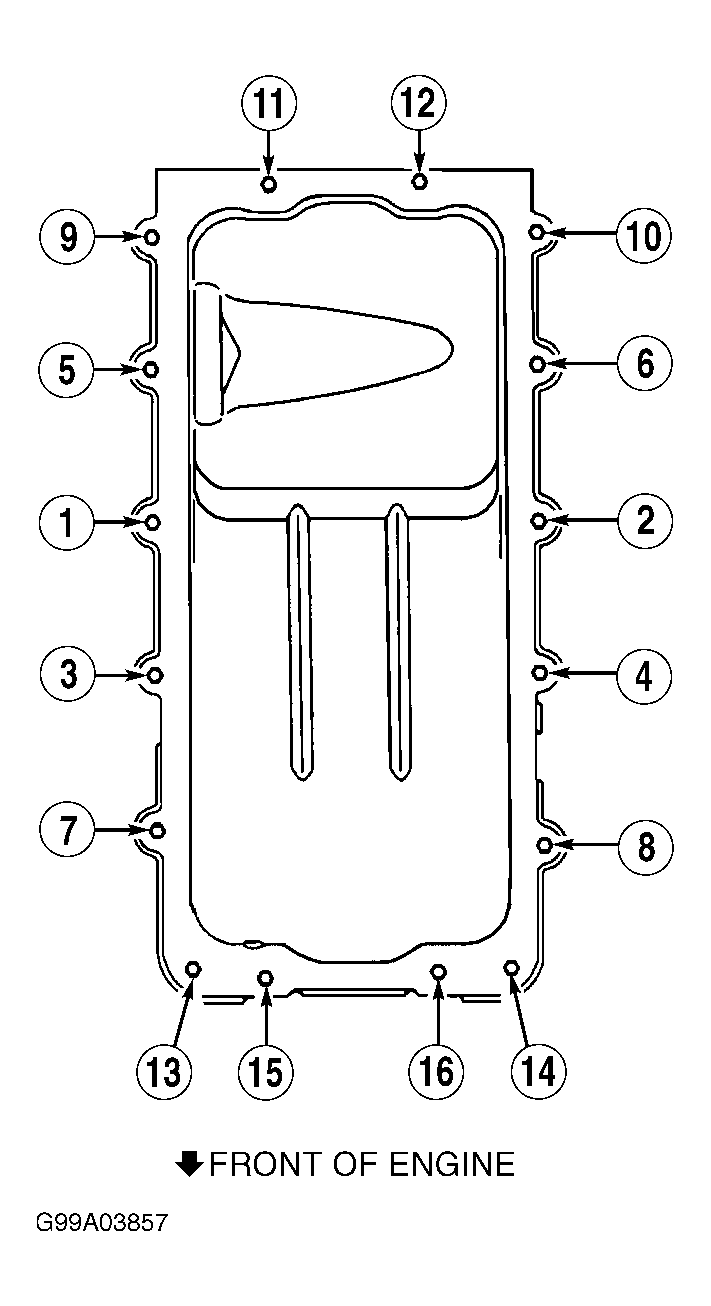

⁽⁶⁾	Tighten bolts in sequence. See Figure.

⁽⁷⁾	Tighten bolts to 18 INCH lbs. (2 N.m)

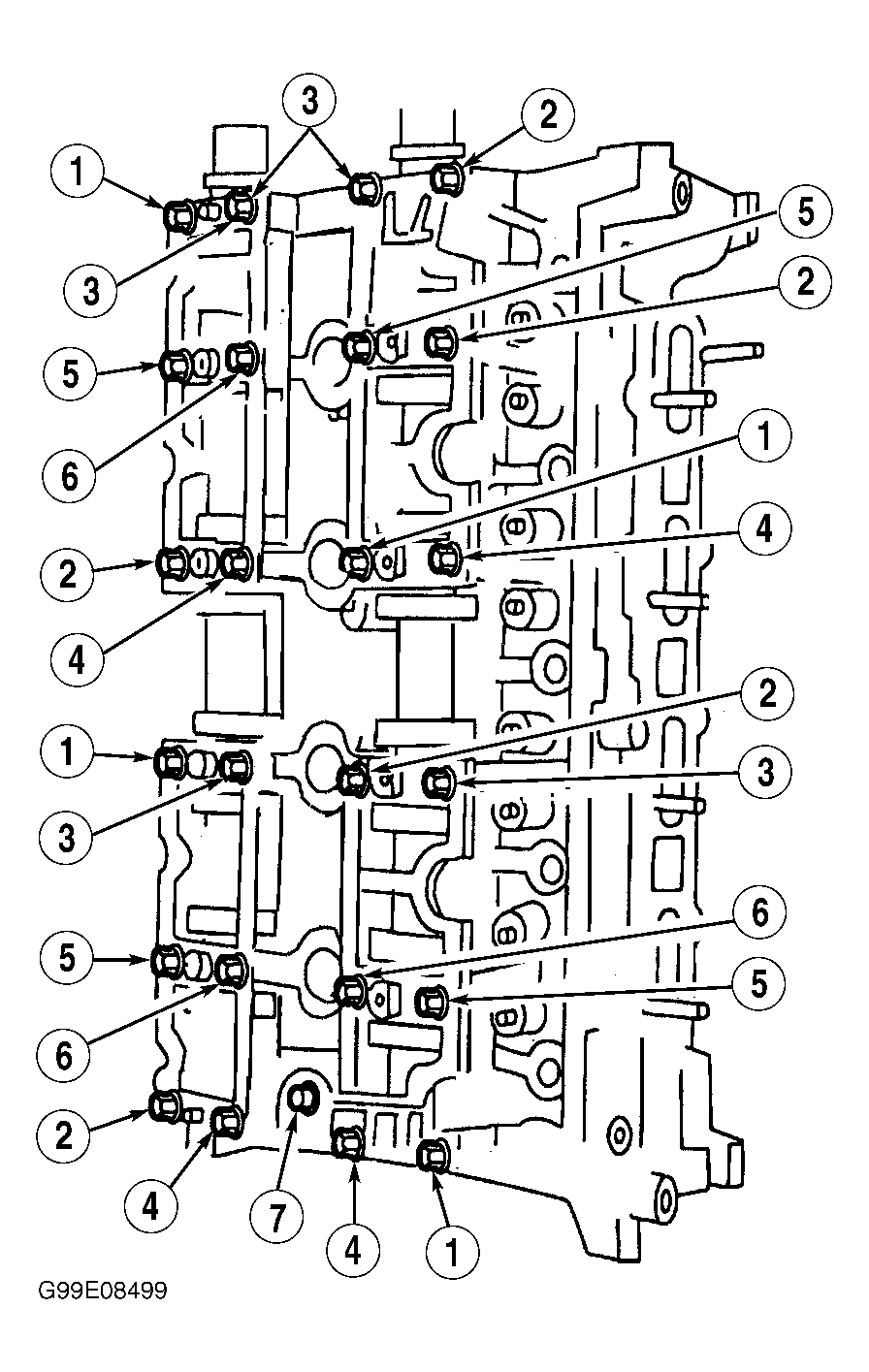

⁽⁸⁾	Tighten bolts in sequence. See Figure.
