Removal and Installation

WARNING: This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

Navigator

Open the front floor console cover and remove the screws.

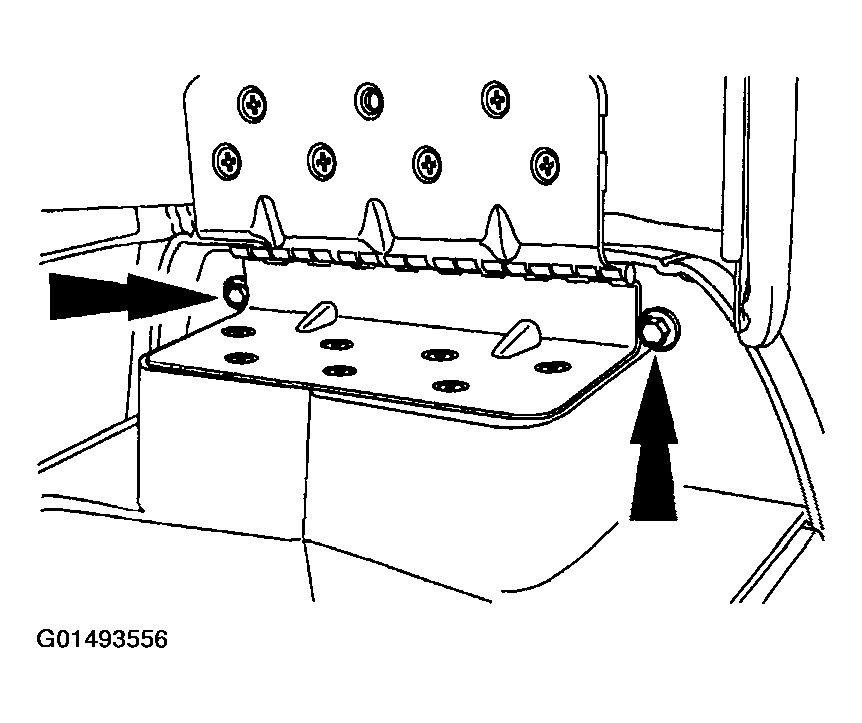

Fig 1: Locating Screws
Courtesy of FORD MOTOR CO.
Open the cup holder and remove the screw.

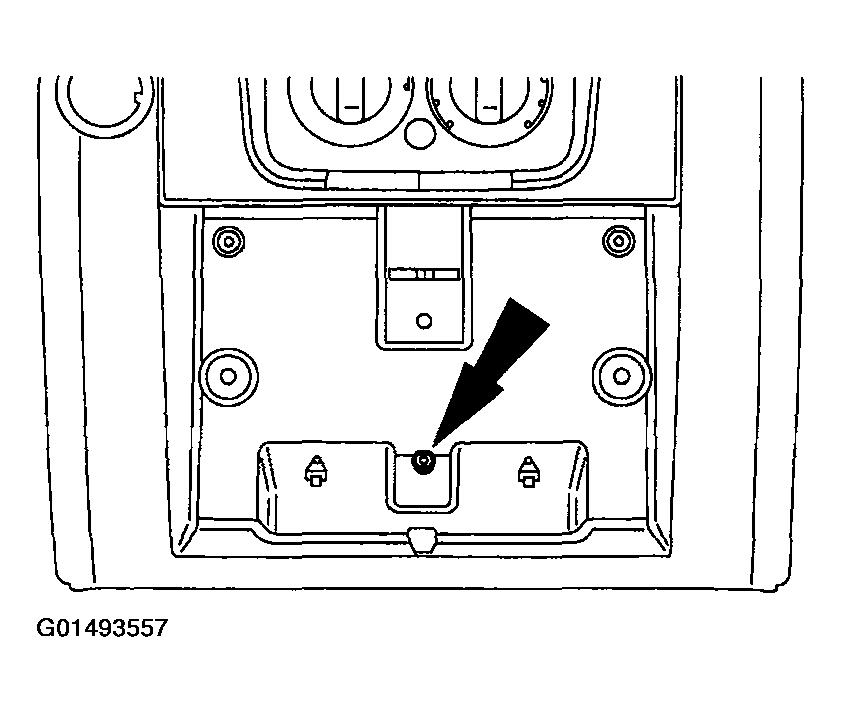

Fig 2: Locating Screws
Courtesy of FORD MOTOR CO.

All Vehicles

NOTE: Navigator shown, Expedition similar.

Disengage the clips and remove the floor console rear finish panel.
- Disconnect the electrical connectors.

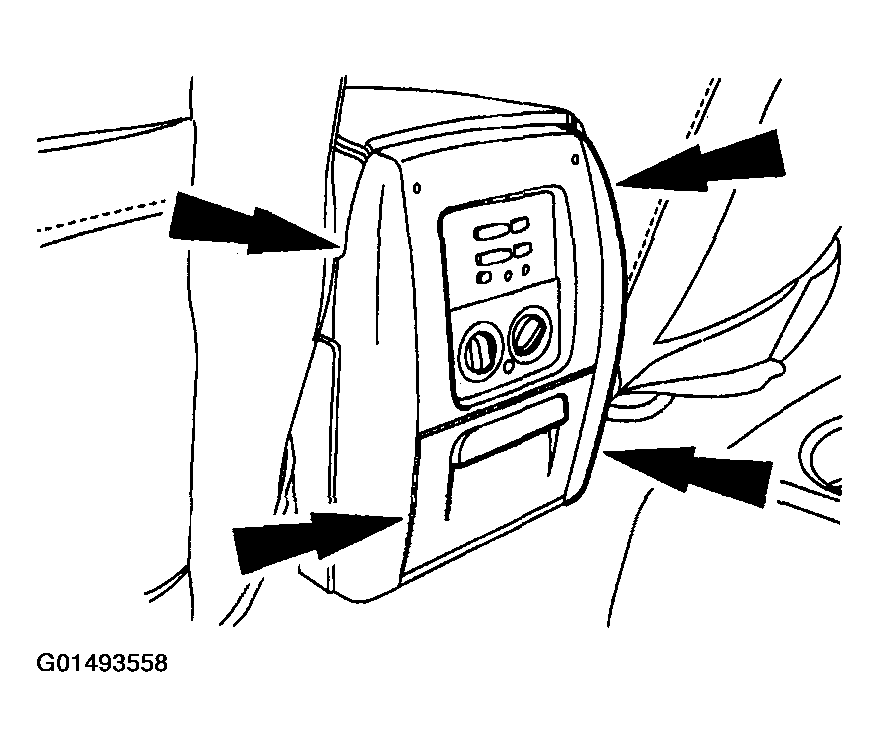

  Fig 3: Locating Floor Console Rear Finish Panel
  Courtesy of FORD MOTOR CO.
Remove the screws and the rear auxiliary climate control assembly.

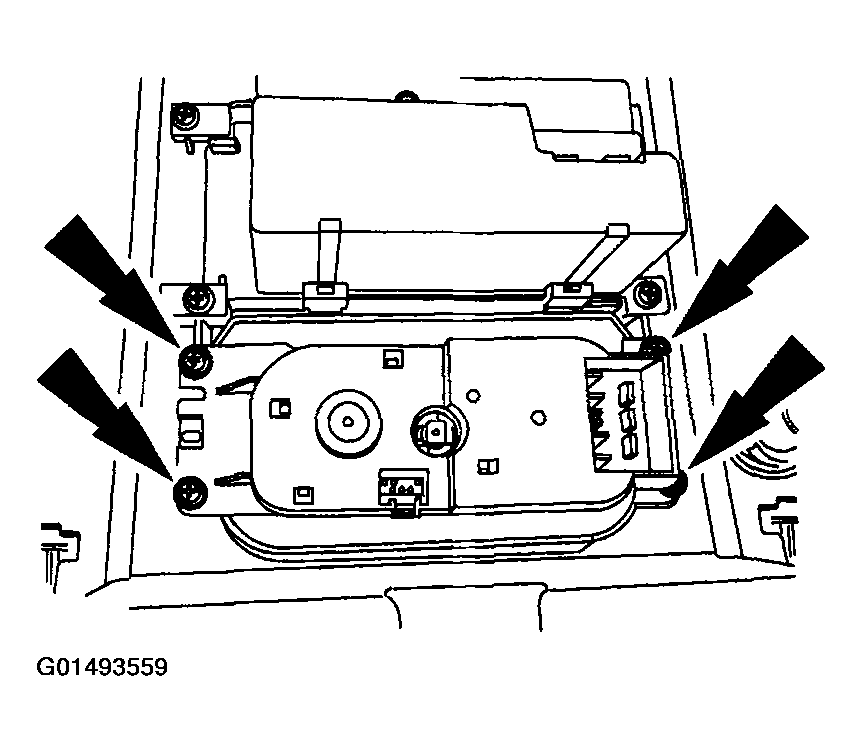

Fig 4: Locating Screws Rear Auxiliary Climate Control Assembly
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
