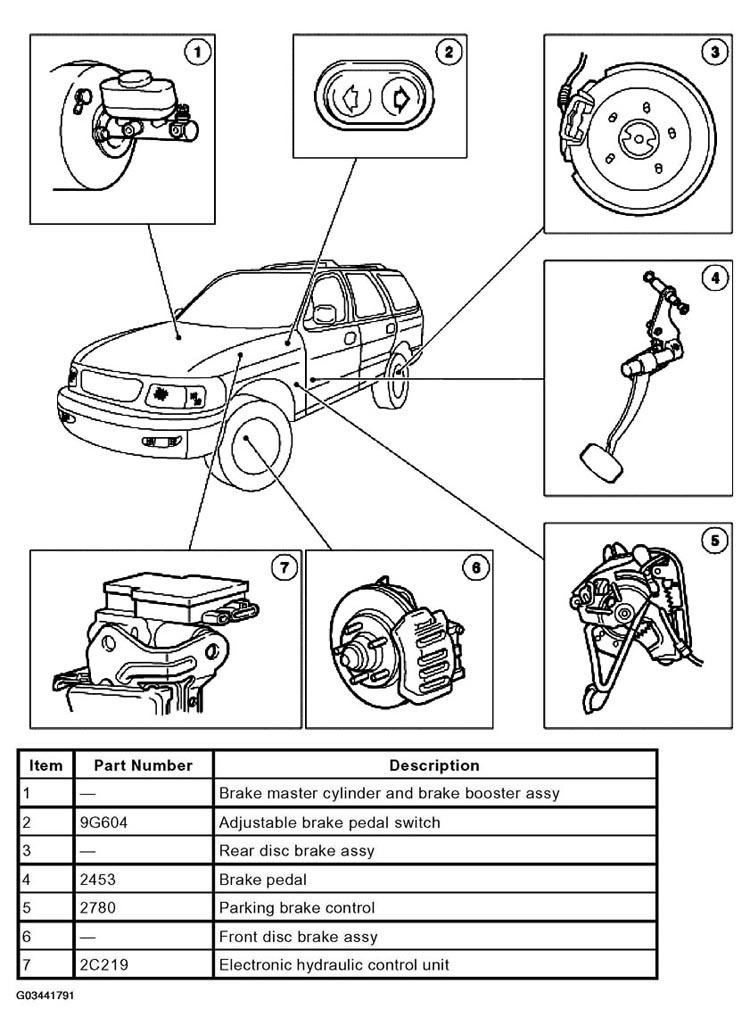

Brake System Components: Notes
WARNING: This page is about a different car, the 2002 Lincoln Navigator and 2002 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
The vehicle is equipped with a vacuum-assisted power braking system. Refer to DISC .
The braking system is a front-to-rear split hydraulic system. Refer to DISC .
The front wheel brakes utilize a dual piston brake caliper and disc brake system. Refer to DISC .
The rear brakes utilize a single piston brake caliper and disc brake system. Refer to DISC .
The parking brake system is a mechanical system that activates a shoe-and-drum system within the brake disc (2C026). Refer to DISC .
A 4-wheel anti-lock brake system (4WABS) is standard equipment. Refer to ANTI-LOCK CONTROL .
