Removal and Installation
WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
- Remove the lower LH and RH panels from the front floor console.

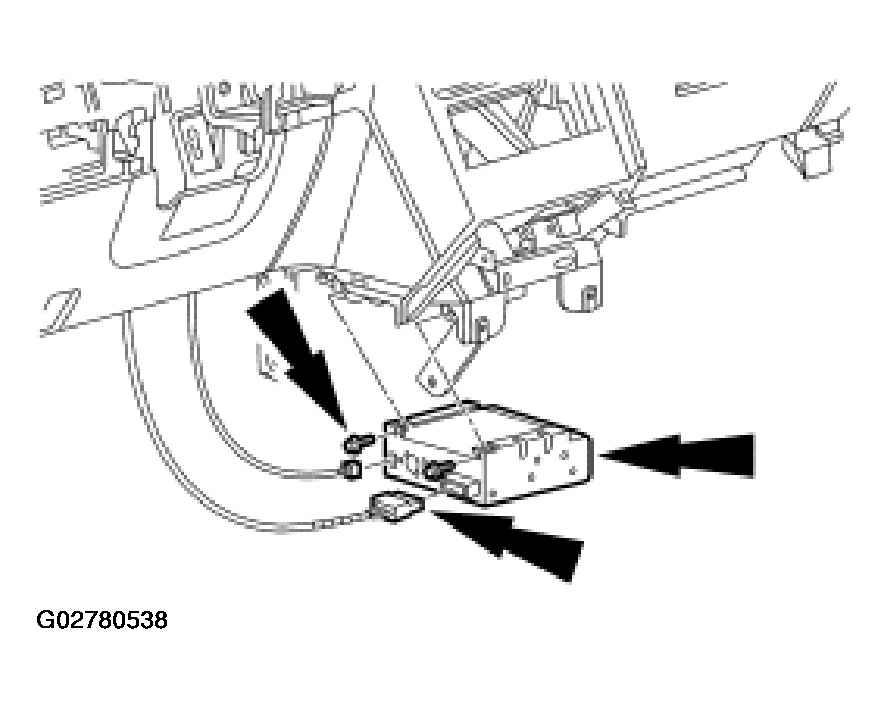

- Remove the navigation system module.
- Remove the electrical connectors.
- Remove the screws.
- To install, reverse the removal procedure.
CAUTION:
Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.
NOTE:
Prior to removal of the navigation system module, it is necessary to remove the digital versatile disc (DVD) from the navigation system module and store it in the customer case.
