Mirror Control Switch

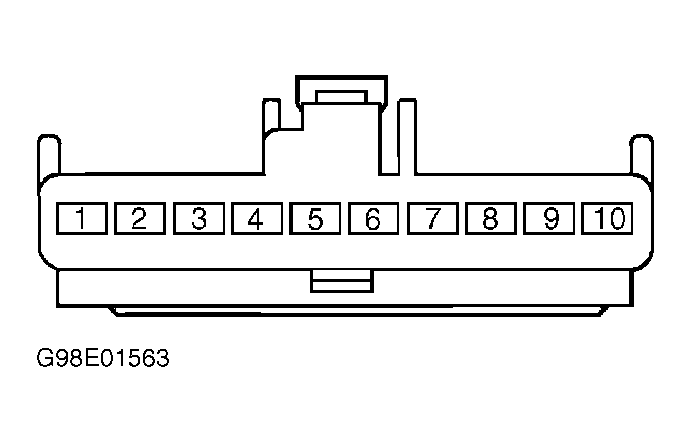

Remove mirror control switch. Using an ohmmeter, check for continuity between indicated switch terminals with switch in appropriate position. See MIRROR CONTROL SWITCH TERMINAL IDENTIFICATION table. See Fig 1 . Replace mirror control switch if it does not test as specified.
MIRROR CONTROL SWITCH TERMINAL IDENTIFICATION
| Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Left Mirror | ||
| Up | 3 & 9; 4 & 7 | |
| Down | 3 & 4; 7 & 9 | |
| Left | 1 & 3; 4 & 7 | |
| Right | 1 & 7; 3 & 4 | |
| Right Mirror | ||
| Up | 3 & 8; 4 & 7 | |
| Down | 3 & 4; 7 & 8 | |
| Left | 2 & 3; 4 & 7 | |
| Right | 2 & 7; 3 & 4 | |
