Direct Clutch Cylinder: Notes

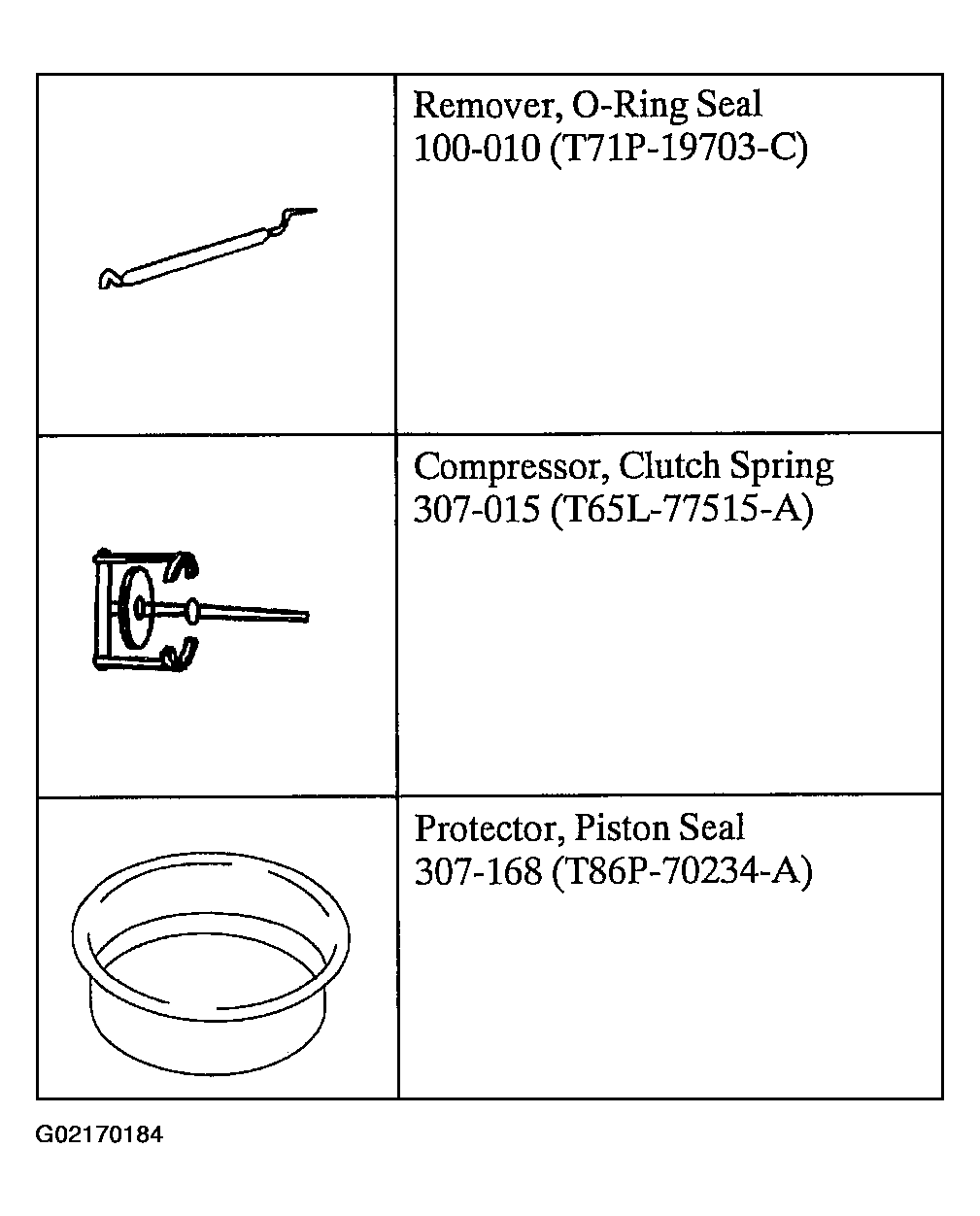

Fig 1: Special Tool(s)
G02170184

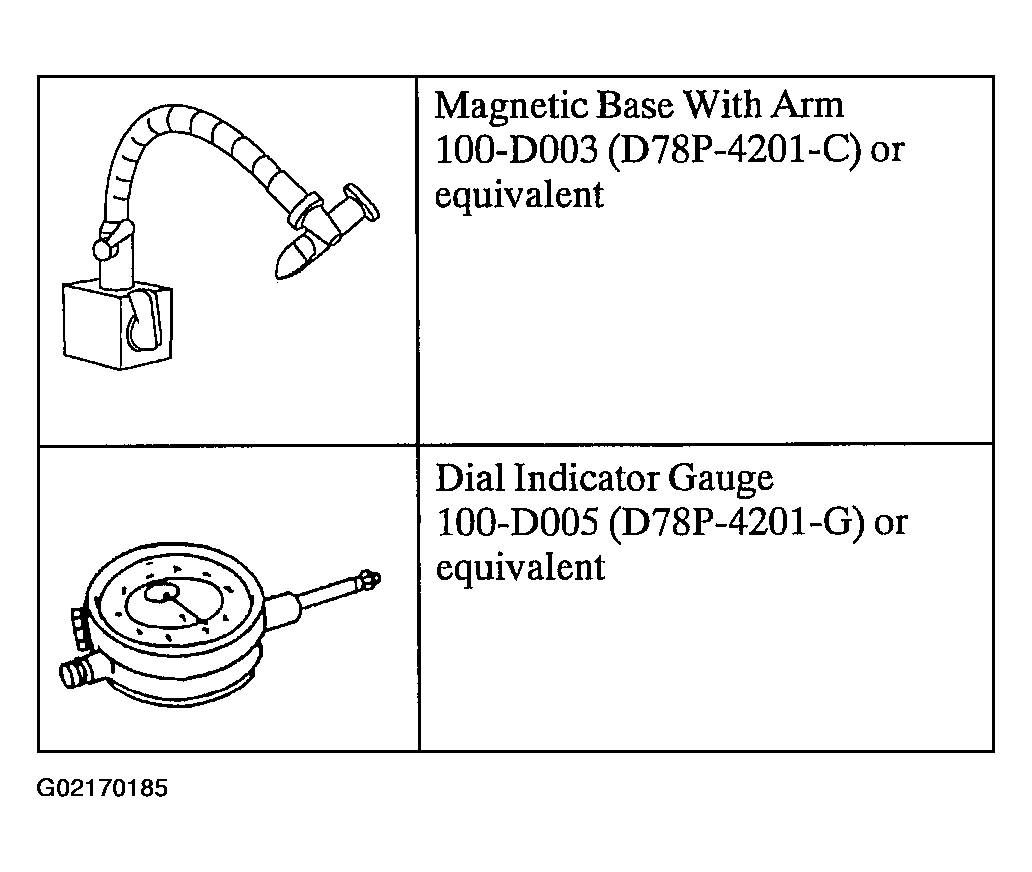

Fig 2: Special Tool(s)
G02170185

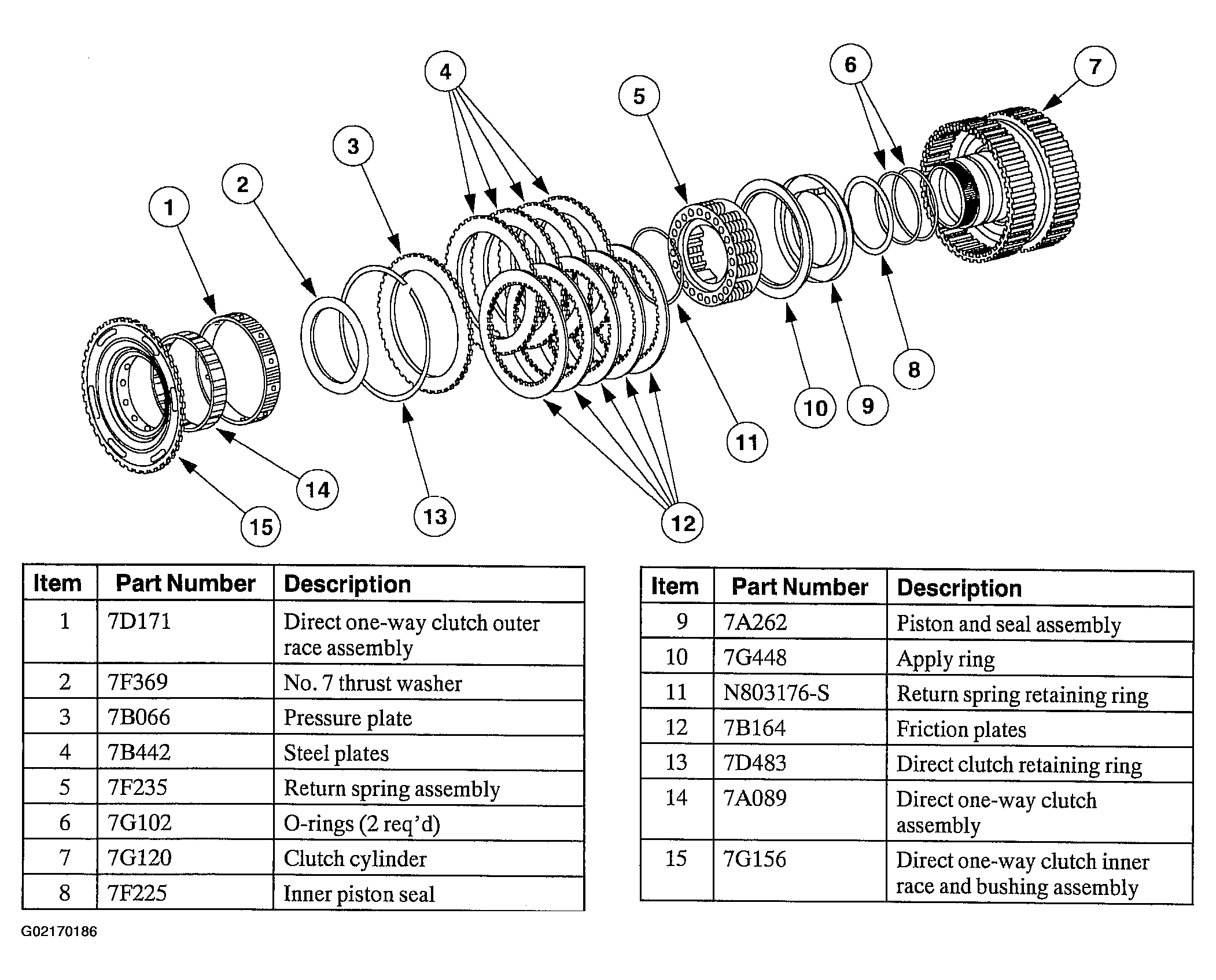

Fig 3: Direct Clutch Cylinder Exploded View
G02170186
