Driven Sprocket Support: Assembly

  1. If removed, install a new driven sprocket bearing. Using an arbor press and the special tools, install a new driven sprocket bearing.
    Fig 1: Installing Driven Sprocket Bearing
    G02170147
  2. Make sure the seals are mated correctly.
    Fig 2: Making Sure Seals Are Mated Correctly
    G02170148
    3. CAUTION: The seal rings must be installed correctly. Transmission failure could result.
    NOTE: Make sure that the seals are mated correctly.

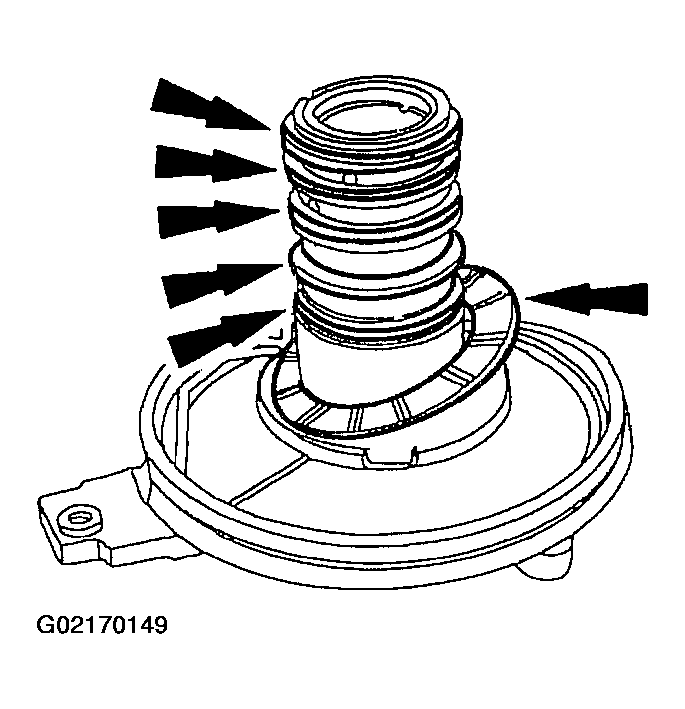

    Fig 3: Installing Teflon(R) Seals & No. 5 Thrust Washer
    G02170149
  3. Install new Teflon(R) seals and the No. 5 thrust washer.
