Driven Sprocket: Check

  1. Check the bearing race to verify that it has not moved out of position or become scored. If worn or scored, driven sprocket will need to be replaced.

    Inspect the sensor wheel for bent or damaged tabs.

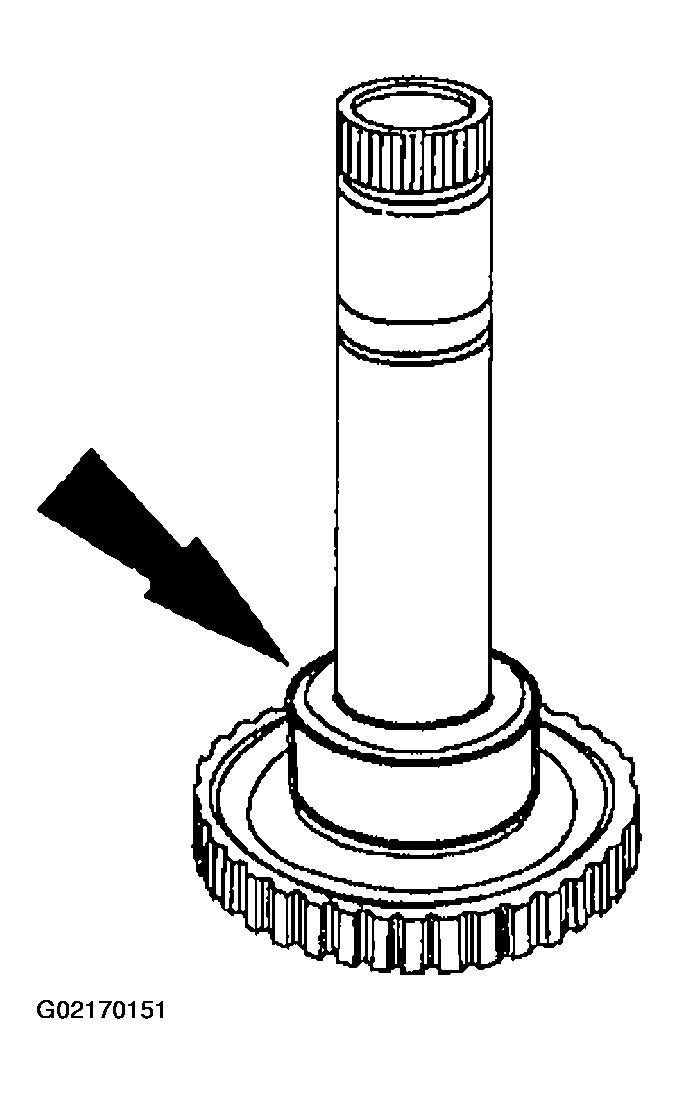

    Fig 1: Checking Bearing Race
    G02170151
    2. NOTE: The speed sensor wheel only needs to be replaced if damaged.
    Fig 2: Removing Speed Sensor Wheel
    G02170152
  2. Remove the speed sensor wheel.
  3. Using the special tools, install new speed sensor ring.
    Fig 3: Installing Speed Sensor Ring
    G02170153
