Forward Clutch Cylinder: Notes

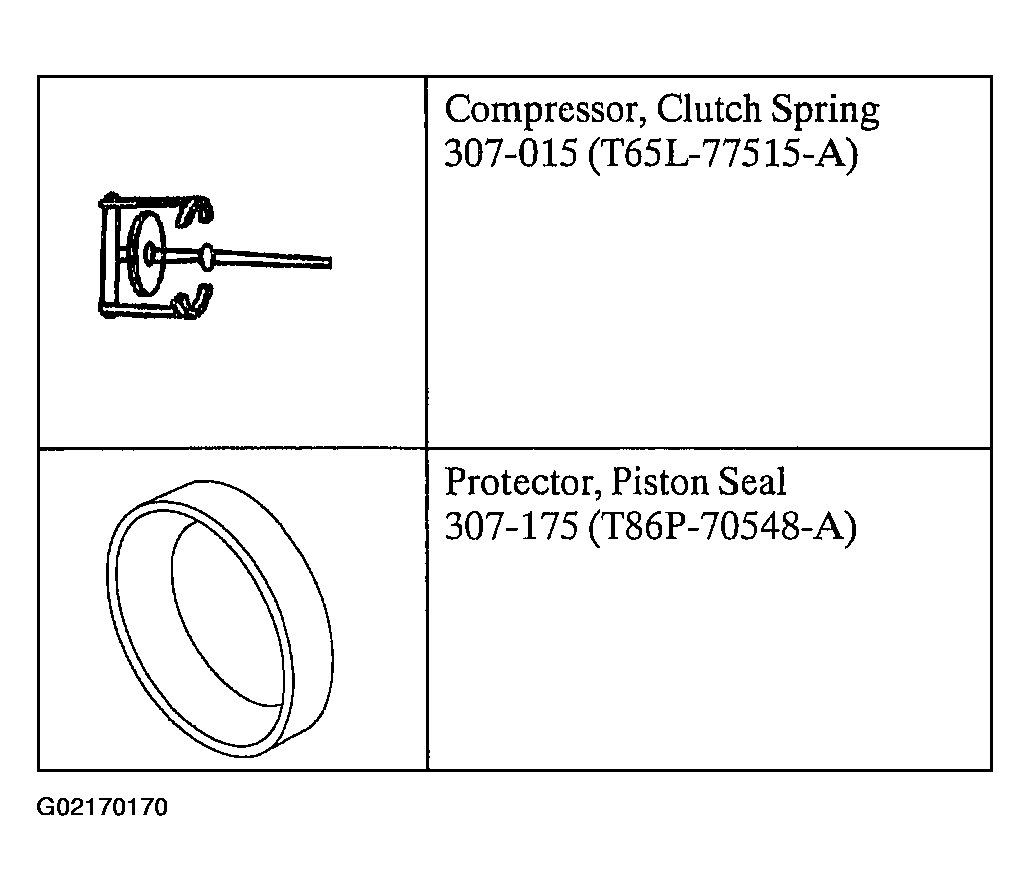

Fig 1: Special Tool(s)

G02170170

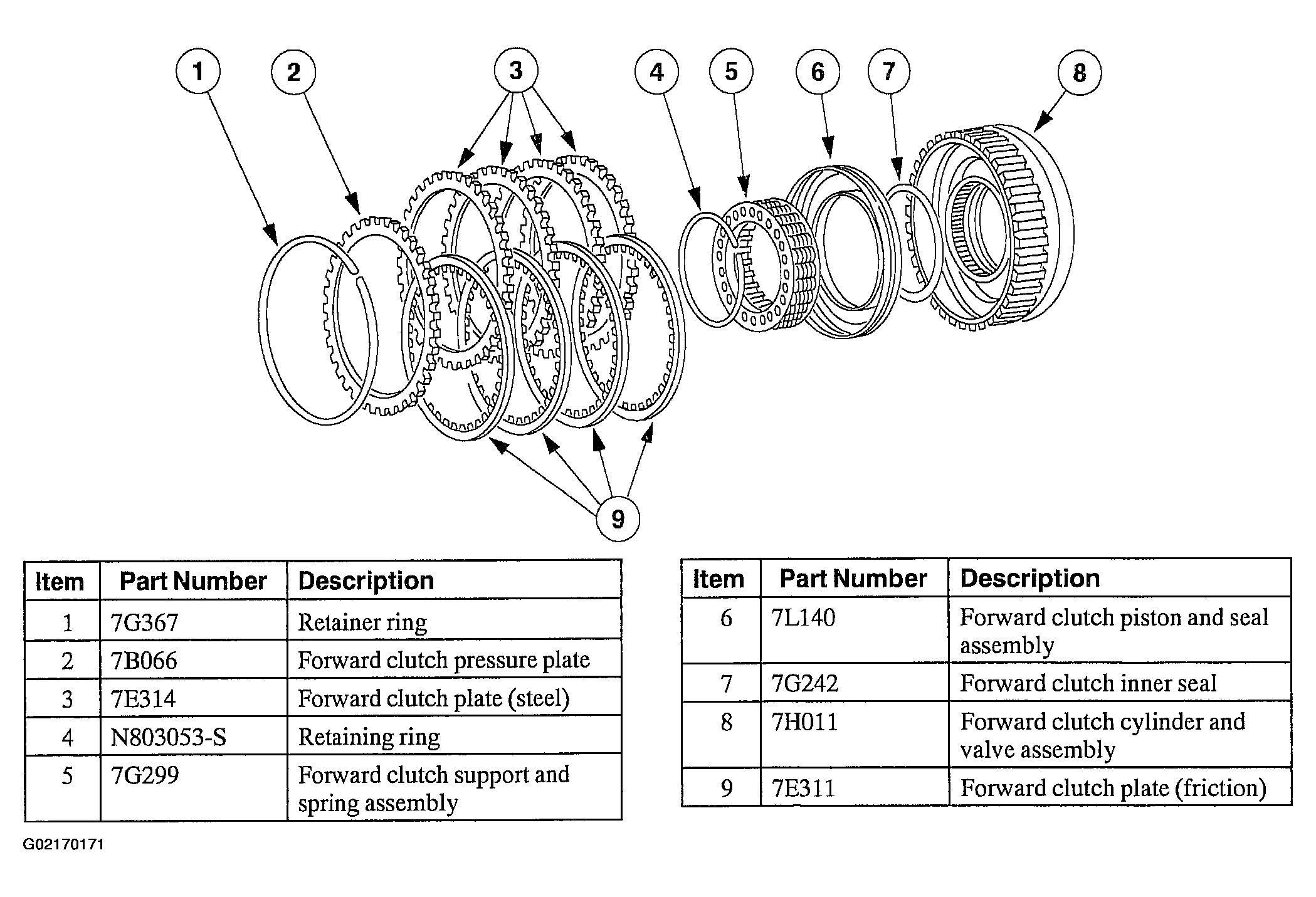

Fig 2: Forward Clutch Cylinder Exploded View

G02170171
