Overdrive Servo: Assembly

    NOTE: Lubricate the piston seals with petroleum jelly prior to installation.
    Fig 1: Installing Overdrive Servo Piston & Rod Assembly
    G02170304
  1. Install the overdrive servo piston and rod assembly.
  2. Install the overdrive servo piston return spring.

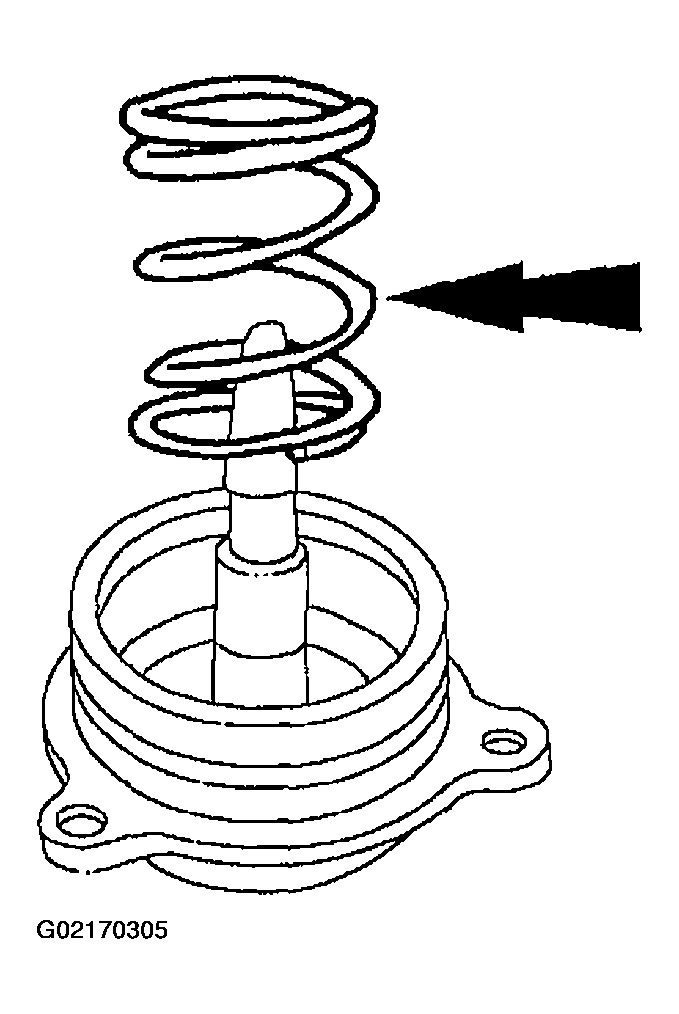

    Fig 2: Installing Overdrive Servo Piston Return Spring
    G02170305
