Overdrive Servo: Disassembly

  1. Remove the overdrive servo piston return spring.

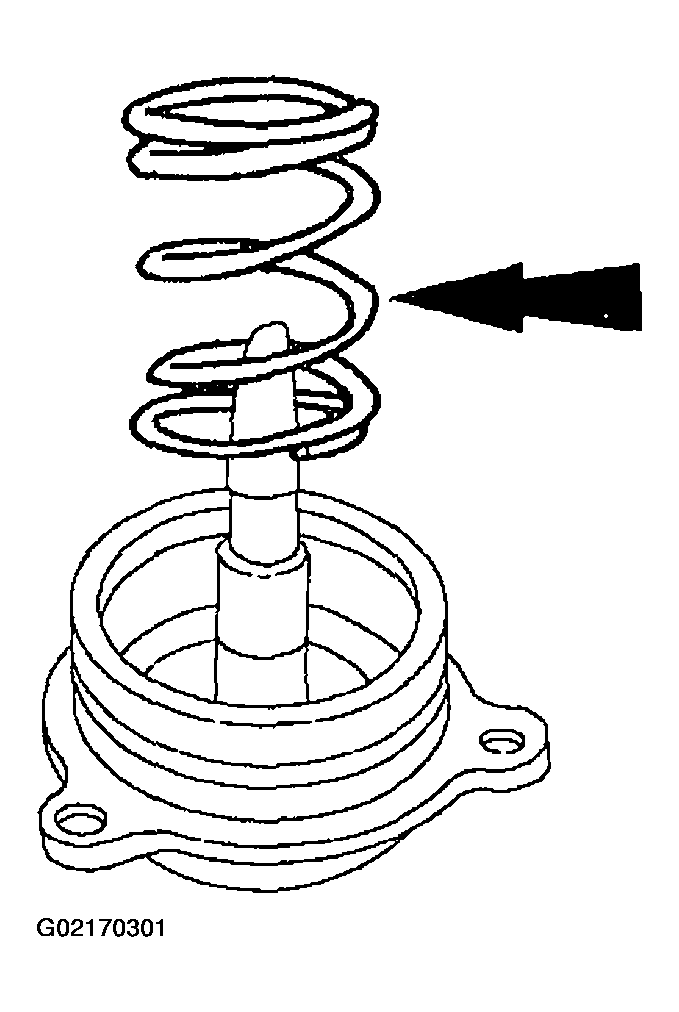

    Fig 1: Removing Overdrive Servo Piston Return Spring
    G02170301
  2. Remove the overdrive servo piston and rod assembly.
    Fig 2: Removing Overdrive Servo Piston & Rod Assembly
    G02170302
  3. Install the servo piston large seal.
    1. Remove the servo piston large seal.
    2. Install the servo piston large seal.
      Fig 3: Installing Servo Piston Large Seal
      G02170303
