Cable Adjustment - Shift Control, Floor Shift

NOTE: The shift control cable adjustment procedure must be performed in the order shown.
  1. Position the transaxle range selector lever in OVERDRIVE.
  2. Loosen the manual control lever-to-shift control cable retaining nut.
    Fig 1: Loosening Manual Control Lever-To-Shift Control Cable Retaining Nut
    G02169710
  3. Position the manual control lever in OVERDRIVE. Tighten the nut.

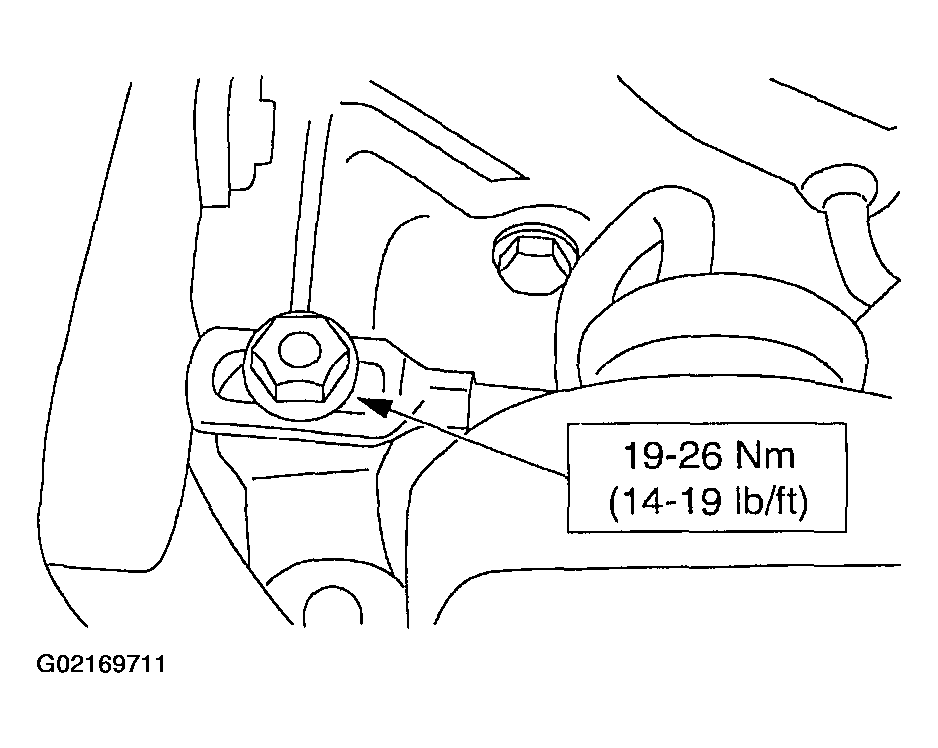

    Fig 2: Tightening Nut
    G02169711
  4. Check the operation of the transaxle in each transaxle range selector lever positions.
