Cable Adjustment-Shift Control, Column Shift
NOTE:
The shift control adjustment procedure must be performed in the order shown.
- Position the transaxle range selector lever in OVERDRIVE. Hang a 1.4 kg (3 lb) weight on the lever.

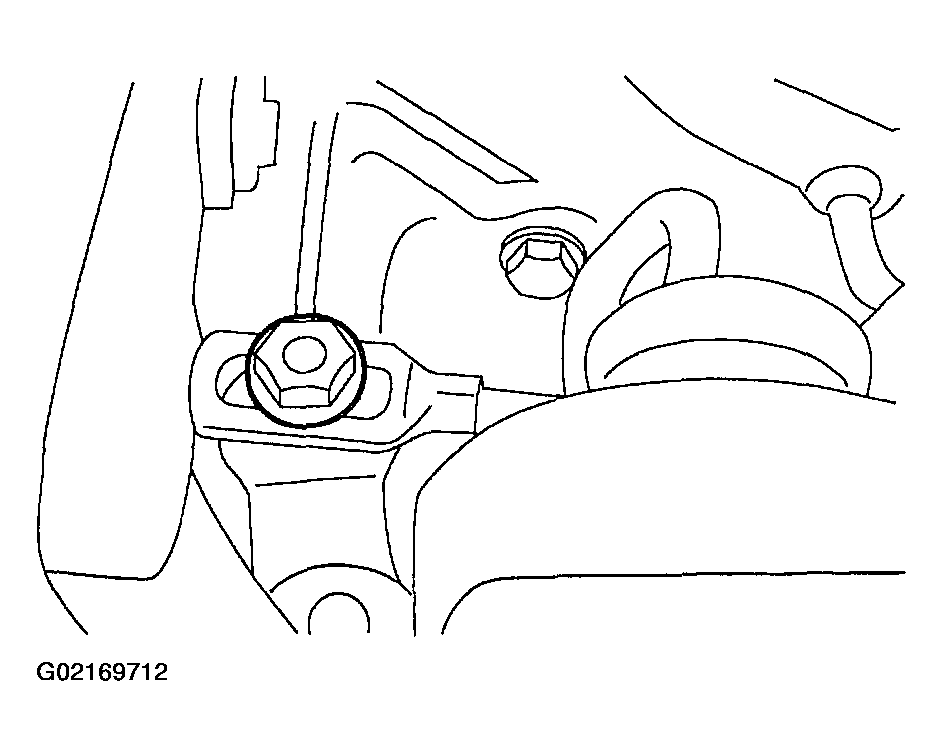

- Loosen the manual control lever-to-shift control cable retaining nut.

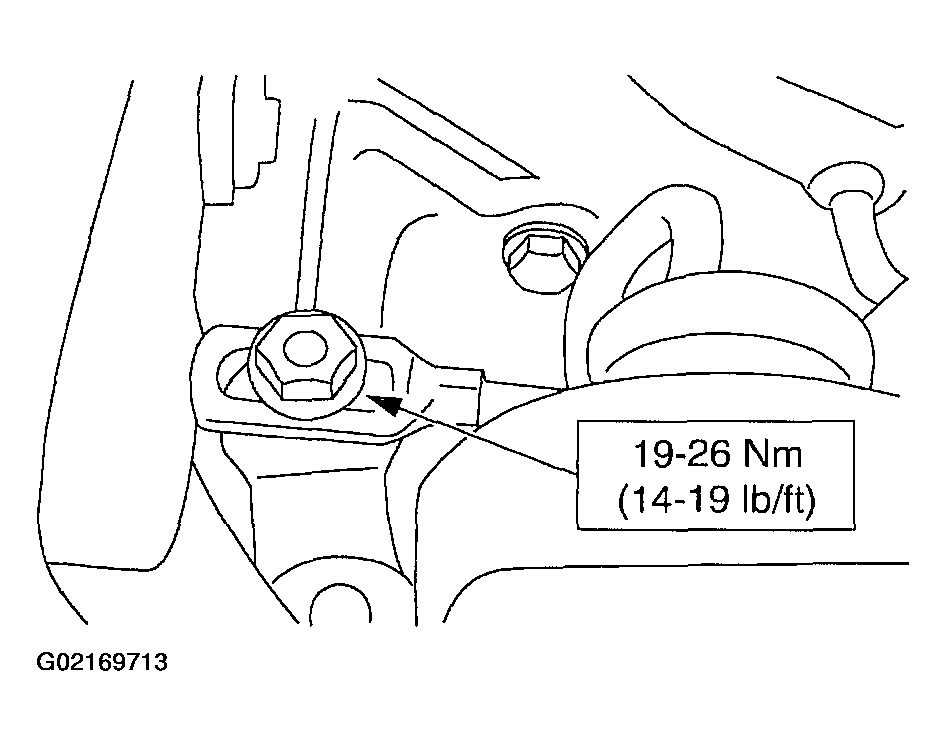

- Position the manual control lever in OVERDRIVE. Tighten the manual control lever-to-shift control cable nut.
- Remove the 1.4 kg (3 lb) weight. Check the operation of the transaxle in each transaxle range selector lever position.
