Electronic Climate Control Module

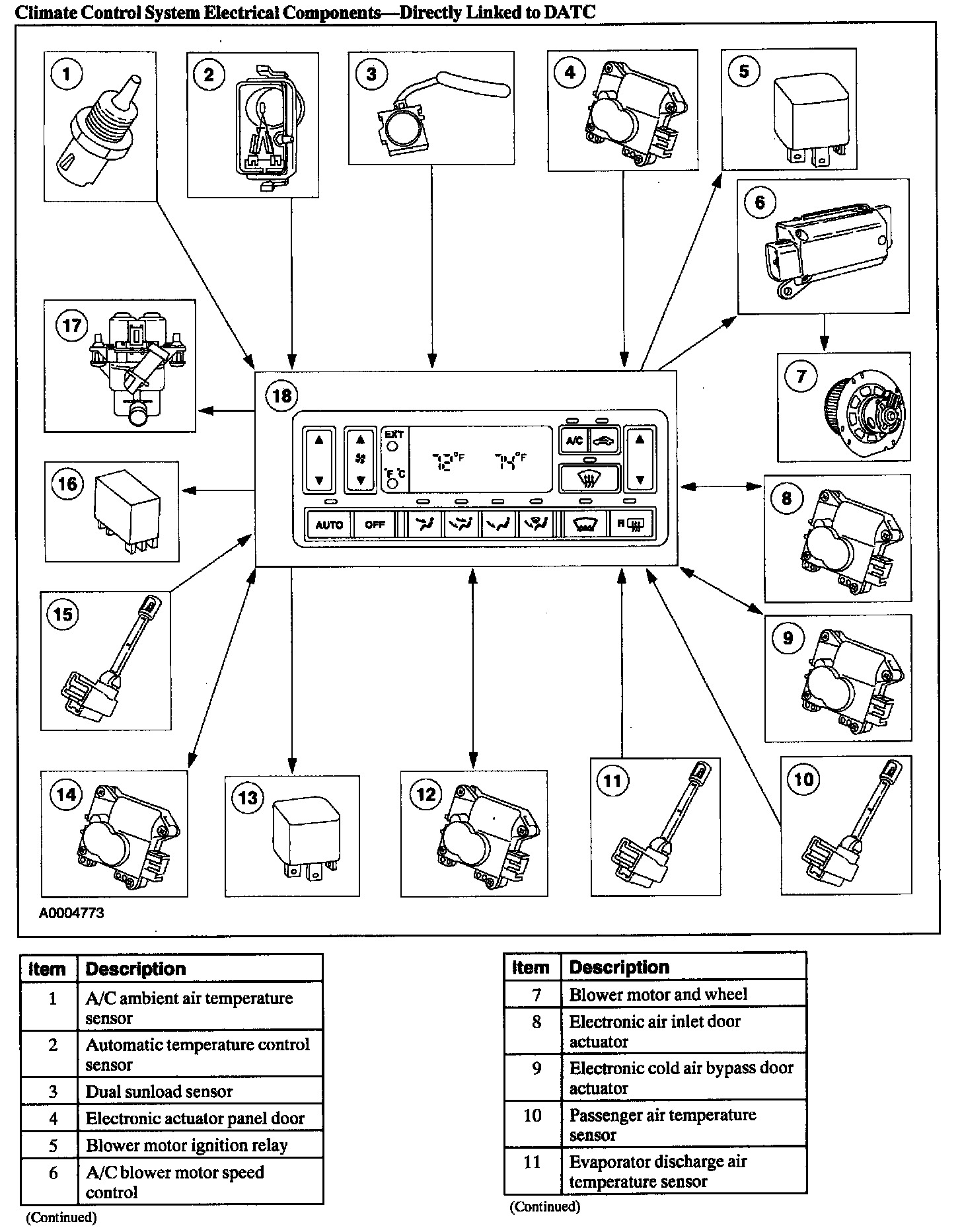

Climate Control System Electrical Components - Directly Linked To DATC, Part 1:

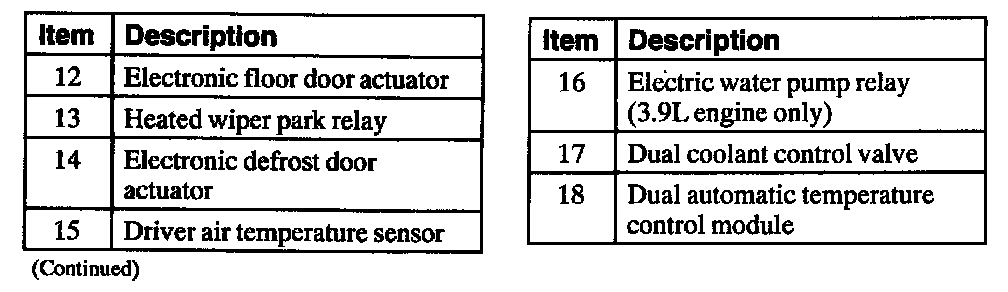

Climate Control System Electrical Components - Directly Linked to DATC, Part 2:
