Center Support: Disassembly

  1. Remove and discard the direct clutch seal rings.

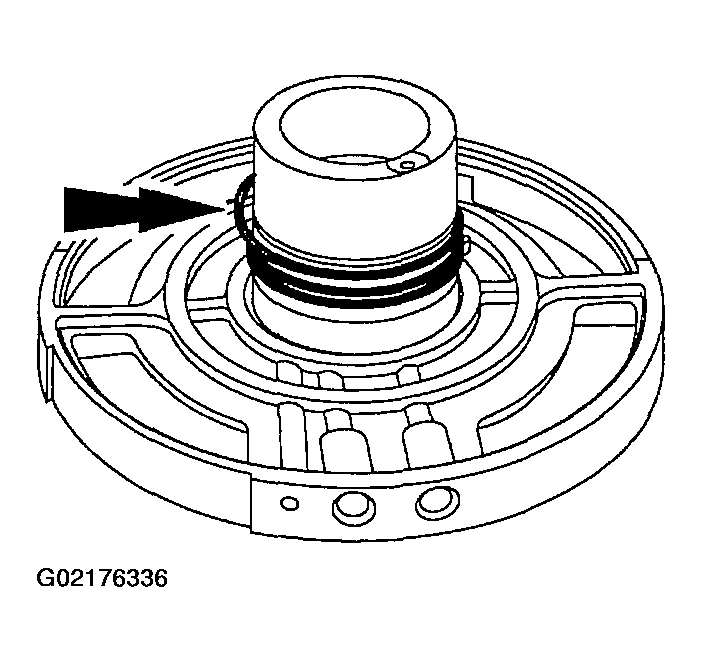

    Fig 1: Removing Direct Clutch Seal Rings
    G02176336Courtesy of FORD MOTOR CO.
  2. Inspect the following for contamination or damage. Clean or install as necessary.
    1. Inspect the ball bearing.
    2. Inspect the feedbolt threads.
    3. Remove and inspect the No. 6 center support thrust washer.
    4. Inspect the inner hub diameter.
    5. Inspect the outer hub diameter.
    6. Inspect the seal ring grooves.

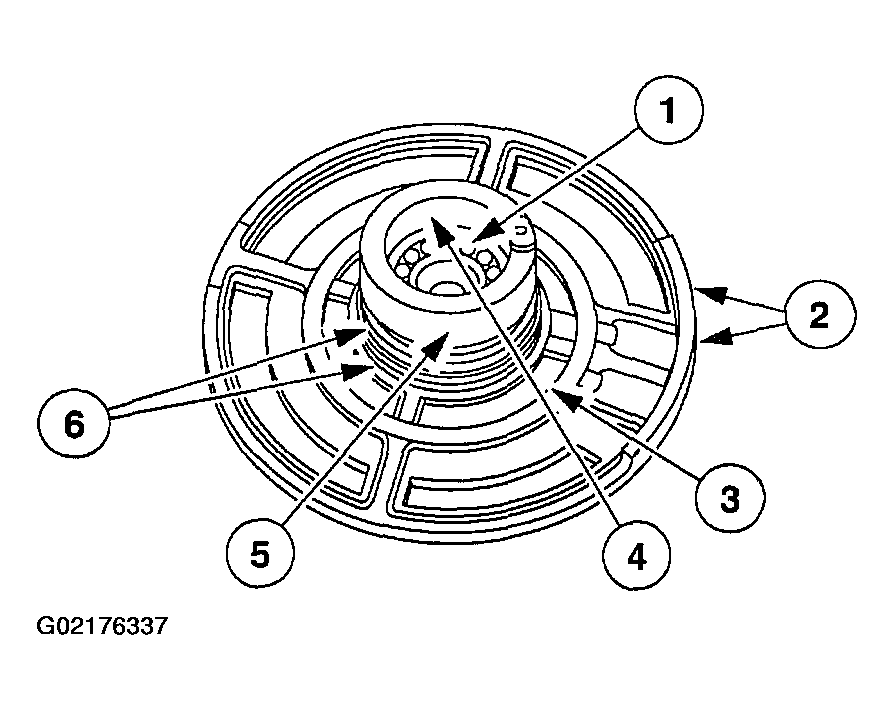

    Fig 2: Inspecting Ball Bearing, Feedbolt Threads, Center Support Thrust Washer, Inner Hub, Outer Hub Diameter And Seal Ring Groove
    G02176337Courtesy of FORD MOTOR CO.
